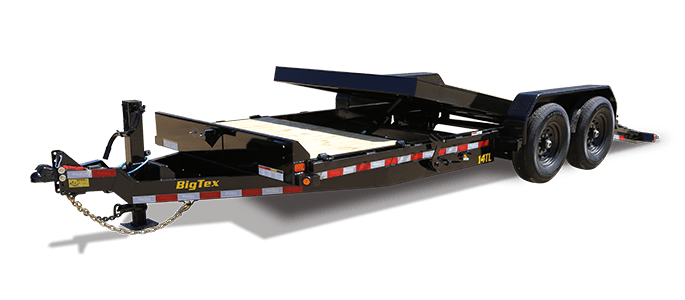

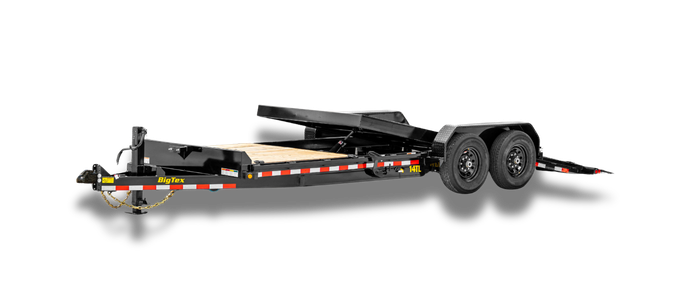

Heavy Duty Tilt Bed Equipment Trailer
With a little bit of everything to keep you rolling on your equipment hauling tasks, the 14TL Heavy Duty Tilt Bed Equipment Trailer features a rear tilt deck as well as a stationary front deck. You can stay in control of your equipment with a hydraulic dampening system with a control valve for smooth loading and unloading. And with a fabricated front stop rail and expanded cargo space, you can use every inch of your bed for maximum hauling efficiency. Get ready for a new level of productivity.

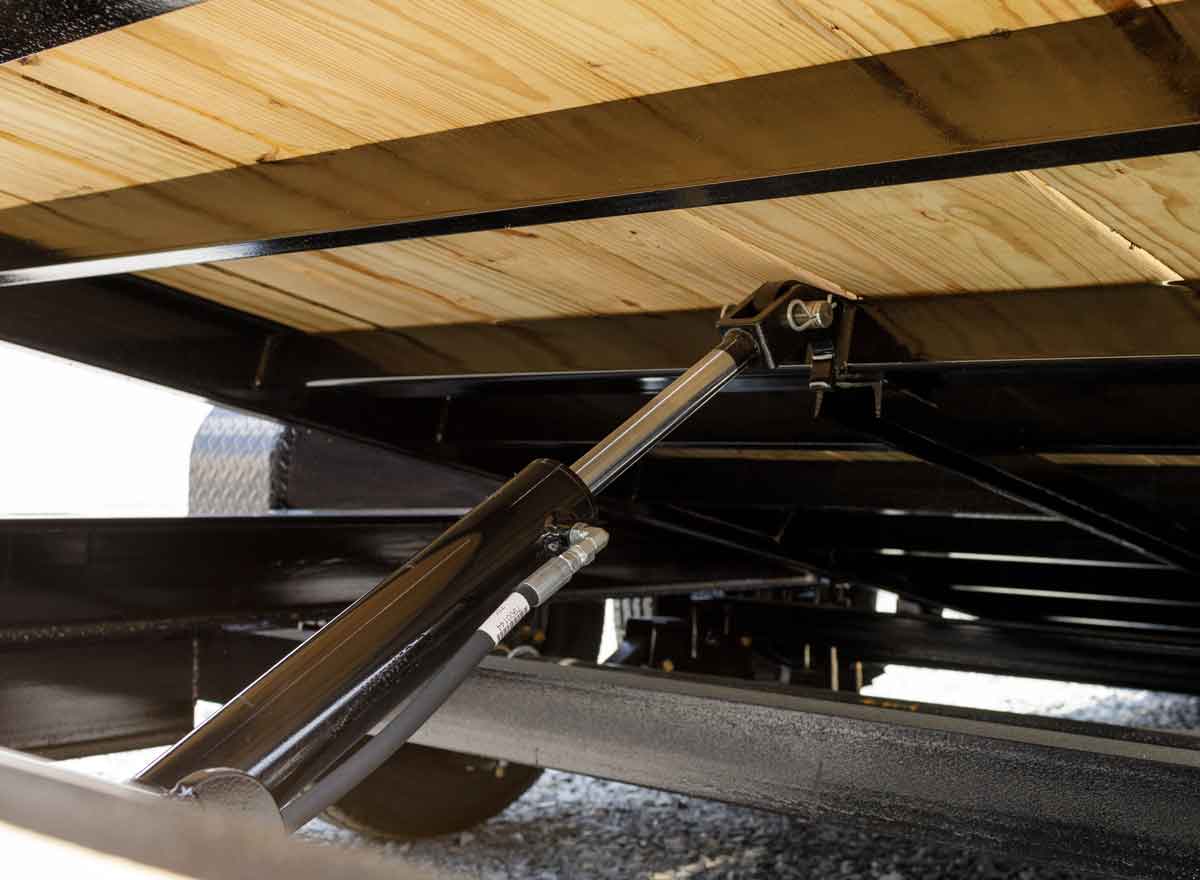

Valve Control on Hydraulic Cylinder
A hydraulic dampening system with valve control can lock the cylinder to make loading smooth and easy while ensuring your cargo is secured for the long haul.
Rear Knife Edge
Tow a wide variety of equipment and small vehicles with the versatile 1/4" diamond plate rear knife edge.

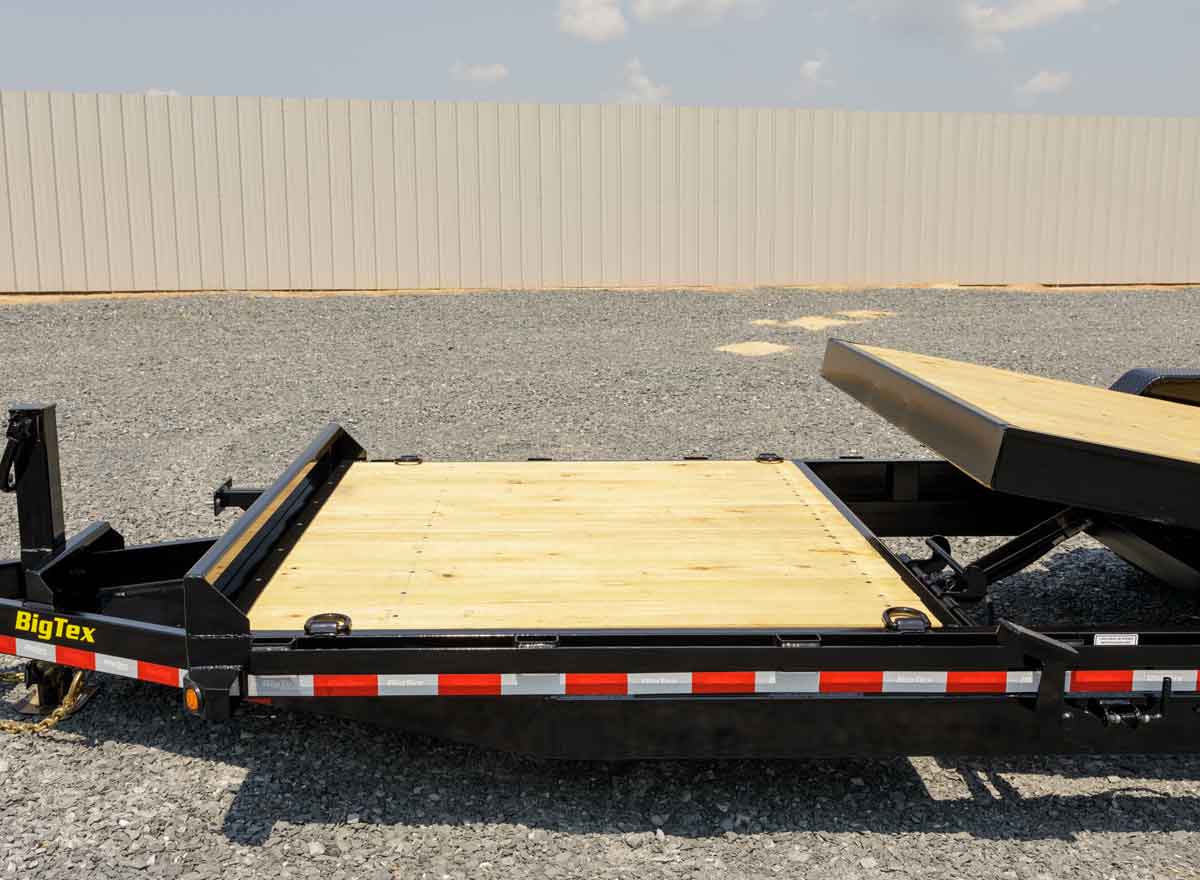

Stationary Front Deck
This trailer brings the best of both worlds, with a stationary front deck for added stability and versatility.
Heavy Duty Diamond Plate Steel Fenders
Built to stand up to whatever punishment is thrown at it, these fenders keep your trailer protected and are also removable to allow for easy replacement if damaged.
0 of 0

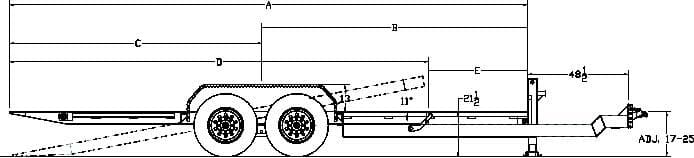

|Model||Pull Type||GVWR||Empty Weight||Cargo Capacity||Bed Length||Bed Width||A||B||C||D||E||Tongue Length|
|14TL-22GN||Bumperpull||14000 lbs||3660 lbs||10340 lbs||22'||83"||273-1/2"||154-1/2"||119"||201"||72"||48-1/2"|
|14TL-20GN||Bumperpull||14000 lbs||3460 lbs||10540 lbs||20'||83"||249-1/2"||130-1/2"||119"||201"||48"||48-1/2"|
|14TL-22||Bumperpull||14000 lbs||3660 lbs||10340 lbs||22'||83"||273-1/2"||154-1/2"||119"||201"||72"||48-1/2"|
|14TL-20||Bumperpull||14000 lbs||3460 lbs||10540 lbs||20'||83"||249-1/2"||130-1/2"||119"||201"||48"||48-1/2"|
|Standard Feature||Available Options|
|Axles||2 - 7,000# Premium, 4" Drop-Axles with Quick-Lubricating Hubs|
|Brakes||Forward Self-Adjusting Electric Brakes on Both Axles|
|Suspension||Multi-Leaf Slipper Spring w/ Equalizer|
|Tongue||6” Channel Fold Back/Wrap Tongue 10" I-Beam (XX#) Neck on Gooseneck models|
|Coupler||Round Adjustable Pin 2-5/16” on Gooseneck Model Adjustable 2-5/16” Demco EZ Latch||Adjustable Pintle in Channel in Lieu of Coupler|
|Safety Chains||3/8" Grade 70 w/ Safety Latch Hook (2 ea)|
|Jack||12,000# Drop-Leg Jack (Side Wind) Dual Jacks on Gooseneck Model|
|Cross-Members||3" Channel on 16" Centers|
|Front Stop Rail||3/16" Fabricated Front Stop Rail (Bumper Pull Only)|
|Floor||2" Treated Pine or Douglas Fir*||Blackwood Pro- Outer Deck Only (X Length of Trailer) Blackwood Pro Rubber Infused Lumber Floor (per linear foot) 1/8” Diamond Plate Steel Floor (Per Square Foot)|
|Fenders||9” x 72” 14 Ga. Diamond Plate Double Square Broke w/Back (Removable)|
|Stake Pockets||Stake Pockets Along Both Sides (Quantity Varies by Length)|
|Trailer Plug||7-Way RV|
|Lights||Recessed, Grommet-Mounted L.E.D. Lighting|
|Wiring||Sealed, Modular Cold-Weather Wiring Harness|
|Tires||ST235/80 R-16 Load Range E Radial Tires||Tire Upgrade (ST235/80 R-16 LR-G)|
|Spare Mount||Front Spare Tire Mount|
|Spare Tire||Not Included||Spare Tire & Wheel (ST235/80 R-16 LR-E) Spare Tire Upgrade (ST235/80 R-16 LR-G)|
|Paint Type||Professional Finish w/ Primer Standard|
|Paint Color||Black||Red Grey White Desert Tan Jet Blue Slime Green Implement Green Equipment Orange Medium Yellow|
|Tilt Deck Dimensions||16'x75" Wide (83" Between Fenders) with 1/4" Diamond plate Knife Edge|
|Tilt Deck Operation||Hydraulic Dampening with Valve Control and Single Side, EZ Pedal Locking Mechanism|
|Stationary Deck Area||4' x 83" (20' Models) 6'x 83" (22' Models)|
|Rubrail||Rub Rail Along Both Sides|
|Tie-Downs||(6) 5/8" D-Rings||Extra 5/8" D-Rings Recessed D-Ring in Floor (Steel Floor Only)|
|Break-Away Kit||Complete Breakaway System w/ Zip™ Breakaway Cable and Charger|
|Tilt Deck Angle||12°|

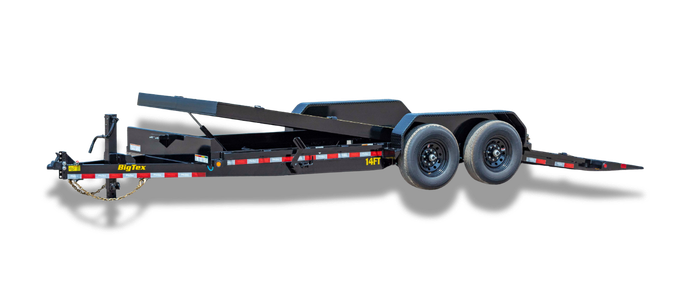

Heavy Duty Over-The-Axle Tilt
