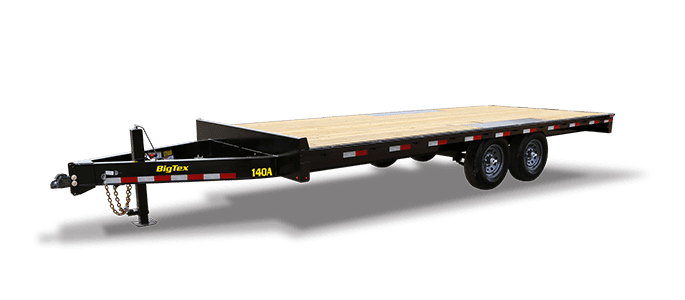

14OA

Heavy Duty Over-The-Axle Bumperpull

Wider and stronger is the name of the game for the 14OA Heavy Duty Over-The-Axle Bumperpull Trailer. With a 102’’ wide deck and a 14,000 lbs G.V.W.R., this heavy-duty deck-over trailer is built with the space and strength that haulers demand. Available in multiple lengths (16’, 18’, and 20’) and equipped with standard 8’ slide-in ramps, the 14OA works hard for those hauling pallets and medium-weight equipment. It’s spacious and strong, and it’s ready to get the job done—are you?

14OA 14OA

Model Pull Type GVWR Empty Weight Cargo Capacity Bed Length Bed Width A B C Tongue Length
14OA-21+3 Bumperpull 14000 lbs 4180 lbs 9820 lbs 24' 102" 63-1/4"
14OA-19+3 Bumperpull 14000 lbs 3890 lbs 10110 lbs 22' 102" 264' 150' 114' 63-1/4"
14OA-17+3 Bumperpull 14000 lbs 3680 lbs 10320 lbs 20' 102" 240" 138" 102" 63-1/4"
14OA-24 Bumperpull 14000 lbs 4050 lbs 9950 lbs 24' 102" 63-1/4"
14OA-22 Bumperpull 14000 lbs 3850 lbs 10150 lbs 22' 102" 264' 150' 114' 63-1/4"
14OA-20 Bumperpull 14000 lbs 3650 lbs 10350 lbs 20' 102" 240" 138" 102" 63-1/4"
14OA-18 Bumperpull 14000 lbs 3450 lbs 10550 lbs 18' 102" 217-1/2" 127" 90-1/2" 63-1/4"
14OA-16 Bumperpull 14000 lbs 3250 lbs 10750 lbs 16' 102" 193-1/2" 115" 78-1/2" 63-1/4"

Standard Feature Available Options
Axles 2 - 7,000# Premium, with Quick-Lubricating Hubs
Brakes Forward Self-Adjusting Electric Brakes on Both Axles
Suspension Multi-Leaf Slipper Spring w/ Equalizer
Coupler 2-5/16" Ball, Adjustable Demco EZ Latch Coupler Adjustable Pintle in Channel in Lieu of Coupler
Safety Chains 1/4” Grd. 70 w/Safety Latch Hook (2 each)
Jack 12,000# Drop-Leg Jack (Top Wind)
Frame 8" I-Beam (10#)
Cross-Members 3" x 3.5" Channel
Front Stop Rail 3/16" Fabricated Front Stop Rail
Floor Treated Pine Floor Blackwood Pro Rubber Infused Lumber Floor (per linear foot)
Ramps 5’ HD Stand Up Ramps (Standard Equipped on "+3" Models) 8’ Slide In Ramp Package
Stake Pockets Stake Pockets Along Both Sides, 24" O.C. (Quantity Varies by Length)
Trailer Plug 7-Way RV
Lights Recessed, Grommet-Mounted L.E.D. Lighting
Wiring Sealed, Modular Cold-Weather Wiring Harness
Tires ST235/80 R-16 Load Range E Radial Tires Tire Upgrade (ST235/80 R-16 LR-G)
Bolt Pattern 8-Lug
Spare Mount Front Spare Tire Mount
Spare Tire Spare Tire & Wheel (ST235/80 R-16 LR-E) Spare Tire Upgrade (ST235/80 R-16 LR-G)
Paint Type Professional Finish w/ Primer Standard
Paint Color Black Red Grey White Desert Tan Jet Blue Slime Green Implement Green Equipment Orange Medium Yellow
Rubrail Rub Rail Along Both Sides

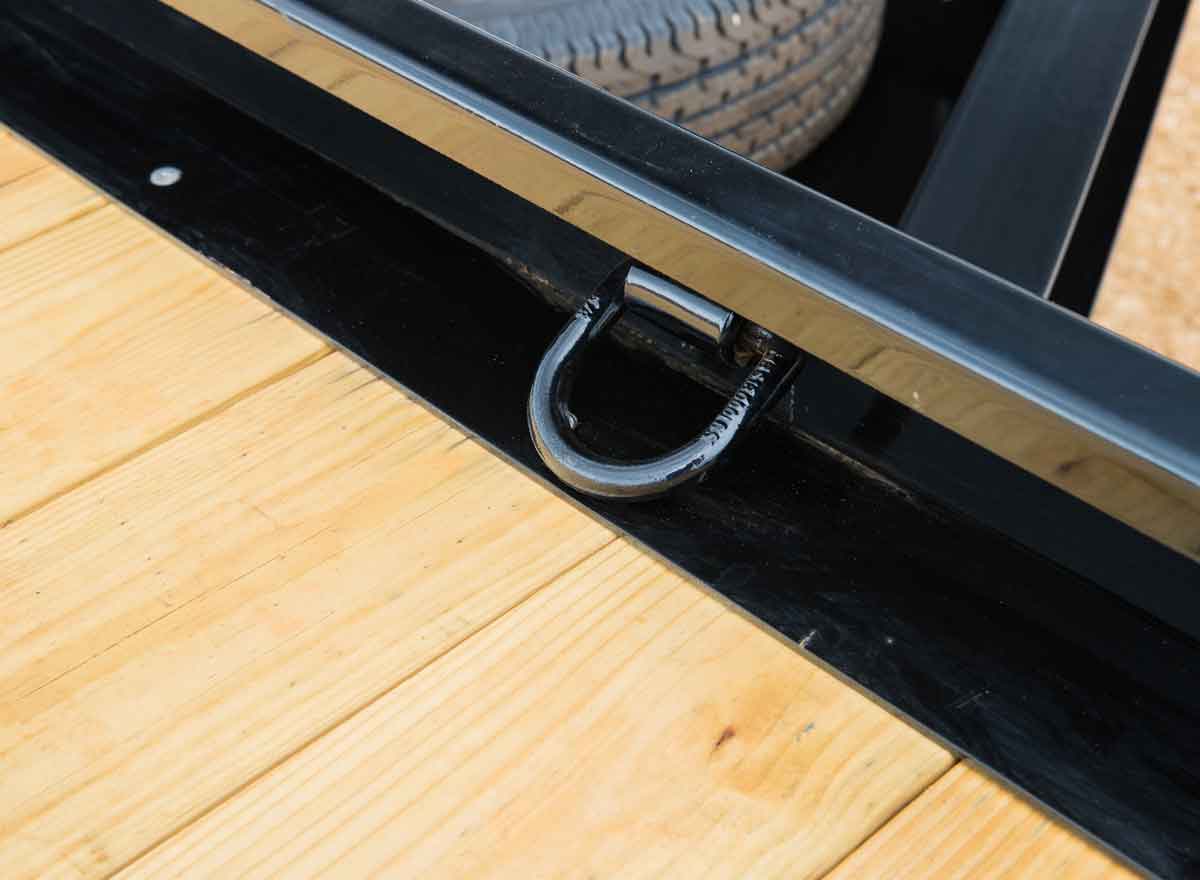

Tie-Downs Extra 5/8" D-Rings
Break-Away Kit Complete Breakaway System w/ Zip Breakaway Cable

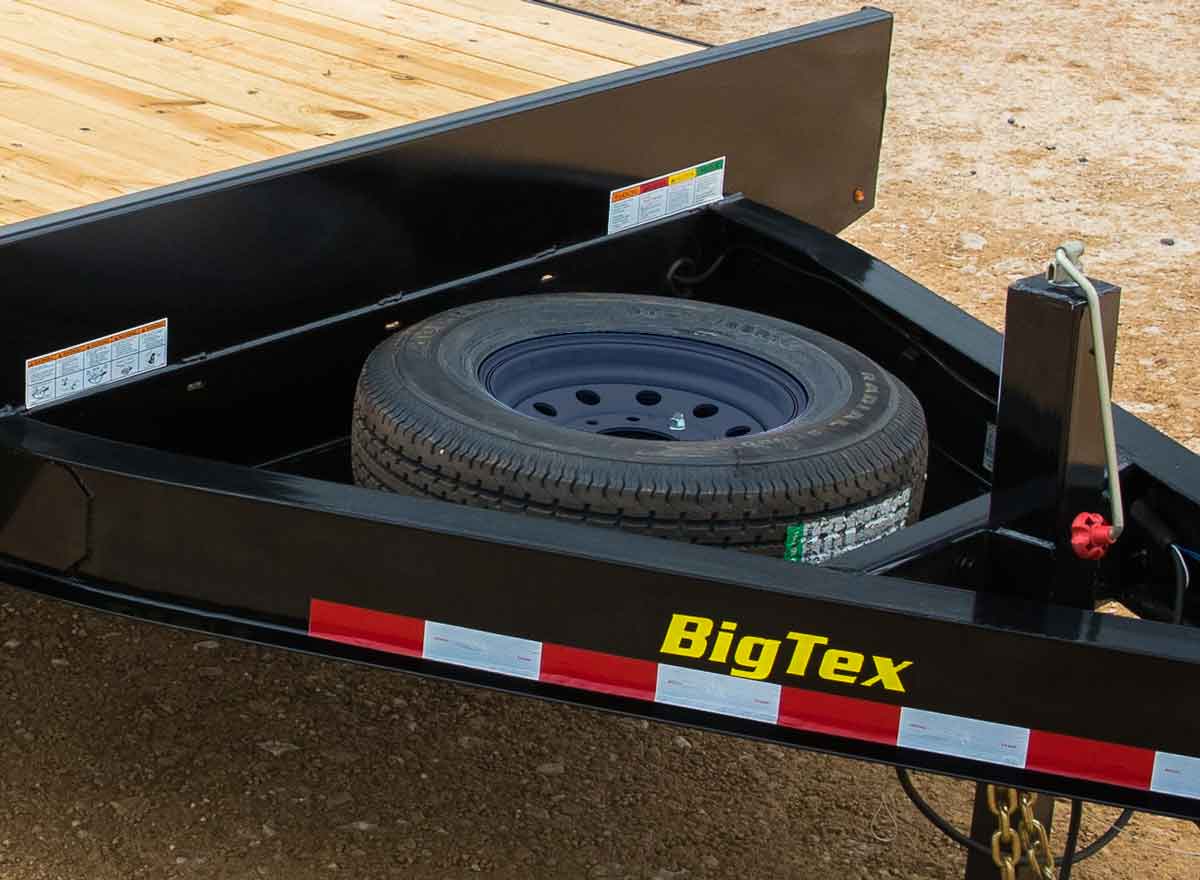

Storage Storage Tray in Tongue
Side Rail 5" Channel

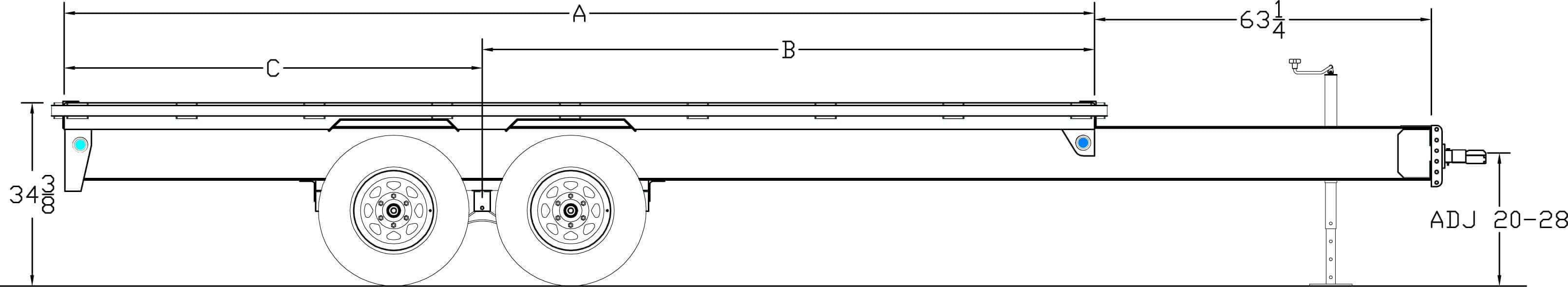

https://www.bigtextrailers.com/wp-content/uploads/2023/07/14oa_specdiagram.jpg
