16EH
Heavy Duty I-Beam Equipment Trailer

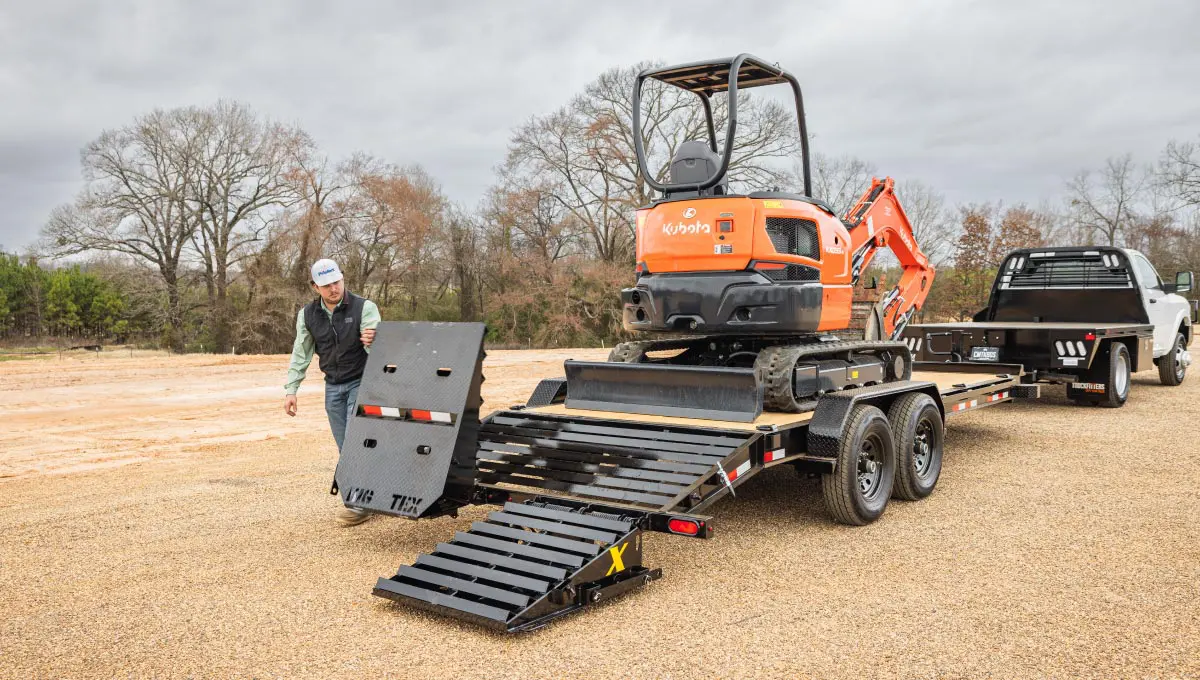

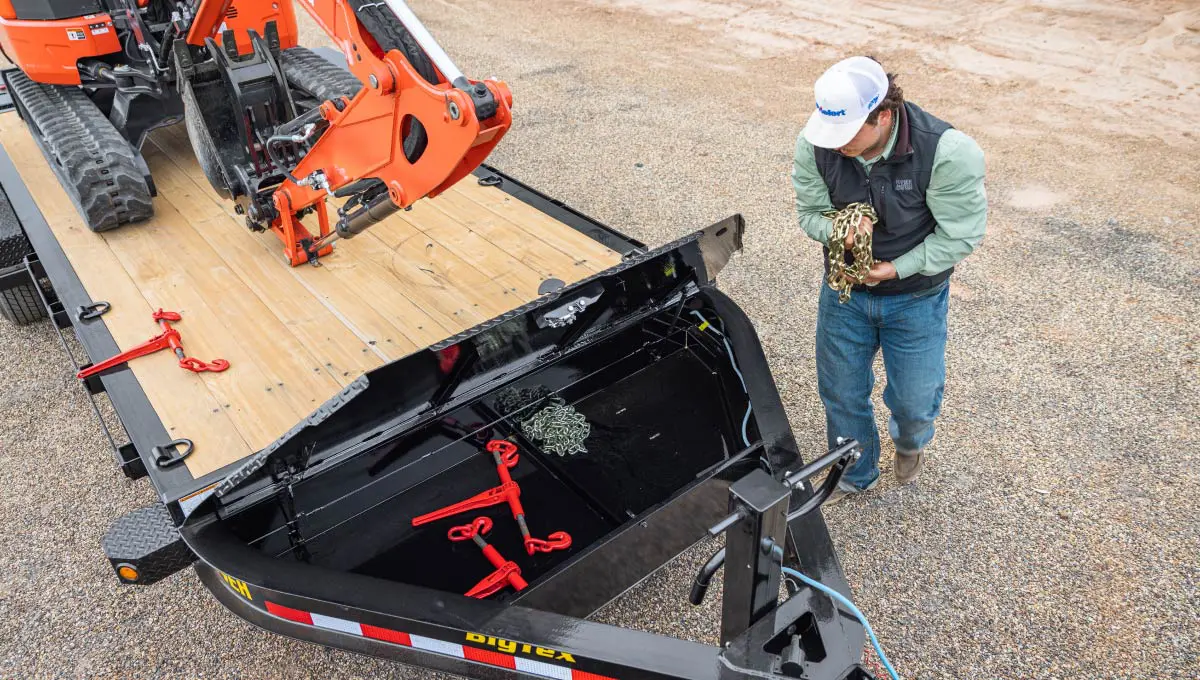

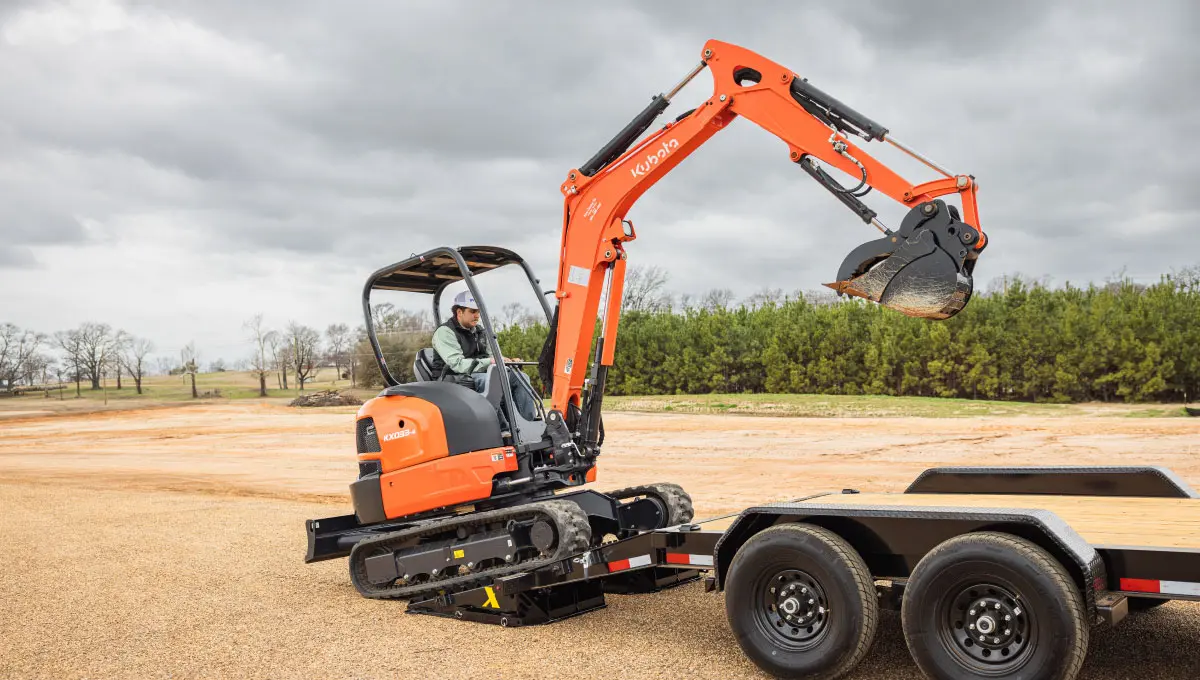

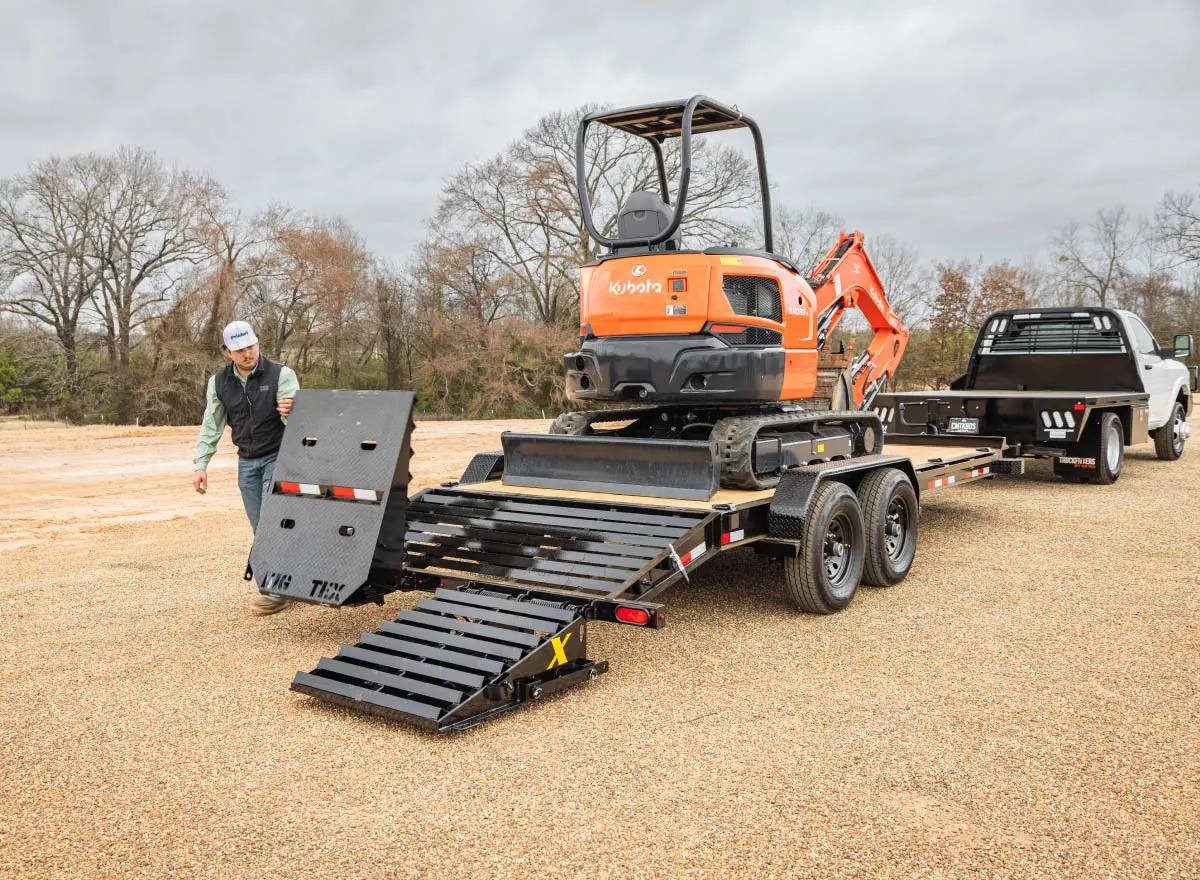

Part of the all-new X-Series, the 16EH Equipment Trailer from Big Tex Trailers is engineered for professionals who demand durability and innovation. The 16EH features APEX Fortified Lumber for superior deck durability and a Mega-Sized Toolbox for added storage capacity. It's enhanced with a Full-Length Rub Rail, D-Rings, and Stake Pockets, providing multiple secure tie-down options for a variety of cargo. The 16EH revolutionizes loading and unloading with its optional Self-Stabilizing Mega Ramps, offering unparalleled flexibility for all your hauling needs.
16EH
Heavy Duty I-Beam Equipment Trailer
Part of the all-new X-Series, the 16EH Equipment Trailer from Big Tex Trailers is engineered for professionals who demand durability and innovation. The 16EH features APEX Fortified Lumber for superior deck durability and a Mega-Sized Toolbox for added storage capacity. It's enhanced with a Full-Length Rub Rail, D-Rings, and Stake Pockets, providing multiple secure tie-down options for a variety of cargo. The 16EH revolutionizes loading and unloading with its optional Self-Stabilizing Mega Ramps, offering unparalleled flexibility for all your hauling needs.
| Model | Pull Type | GVWR | GAWR (Ea. Axle) | Empty Weight | Cargo Capacity | Bed Length | Bed Width |
|---|---|---|---|---|---|---|---|
| 16EHG-24D3A | Gooseneck | 20000 lbs | 8000 lbs | 4040 lbs | 15960 lbs | 24' | 83" |
| 16EHG-22D3A | Gooseneck | 20000 lbs | 8000 lbs | 3860 lbs | 16140 lbs | 22' | 83" |
| 16EHG-20D3A | Gooseneck | 20000 lbs | 8000 lbs | 3700 lbs | 16300 lbs | 20' | 83" |
| 16EH-24D3A | Bumperpull | 17500 lbs | 8000 lbs | 3650 lbs | 13850 lbs | 24' | 83" |
| 16EH-22D3A | Bumperpull | 17500 lbs | 8000 lbs | 3480 lbs | 14020 lbs | 22' | 83" |
| 16EH-20D3A | Bumperpull | 17500 lbs | 8000 lbs | 3320 lbs | 14180 lbs | 20' | 83" |
| 16EH-18D3A | Bumperpull | 17500 lbs | 8000 lbs | 3190 lbs | 14310 lbs | 18' | 83" |
| Standard Feature | Available Options | |
|---|---|---|
| Axles | 2 - 8,000# Premium, Cambered Axles with Oil Bath and Valcrum Caps | |
| Brakes | Forward Self-Adjusting Electric Brakes on All Hubs | |
| Suspension | Multi-Leaf Slipper Spring w/ Equalizer | |
| Coupler | Adjustable 2-5/16” Demco EZ Latch | Adjustable Pintle in Channel in Lieu of Coupler Adjustable 2-5/16" Demco EZ Latch Gooseneck Coupler |
| Safety Chains | 3/8" Grade 70 w/ Safety Latch Hook (2 ea) | |
| Jack | 12,000# Drop-Leg Jack (Side Wind) | |
| Frame | 8" I-Beam | |
| Cross-Members | 3" Channel on 16" Centers | |
| Front Stop Rail | 3/16" Fabricated Front Stop Rail | |
| Floor | APEX Fortified Lumber | |
| Fenders | 9” x 72” 14 Ga. Diamond Plate Double Square Broke w/Back (Removable) | |

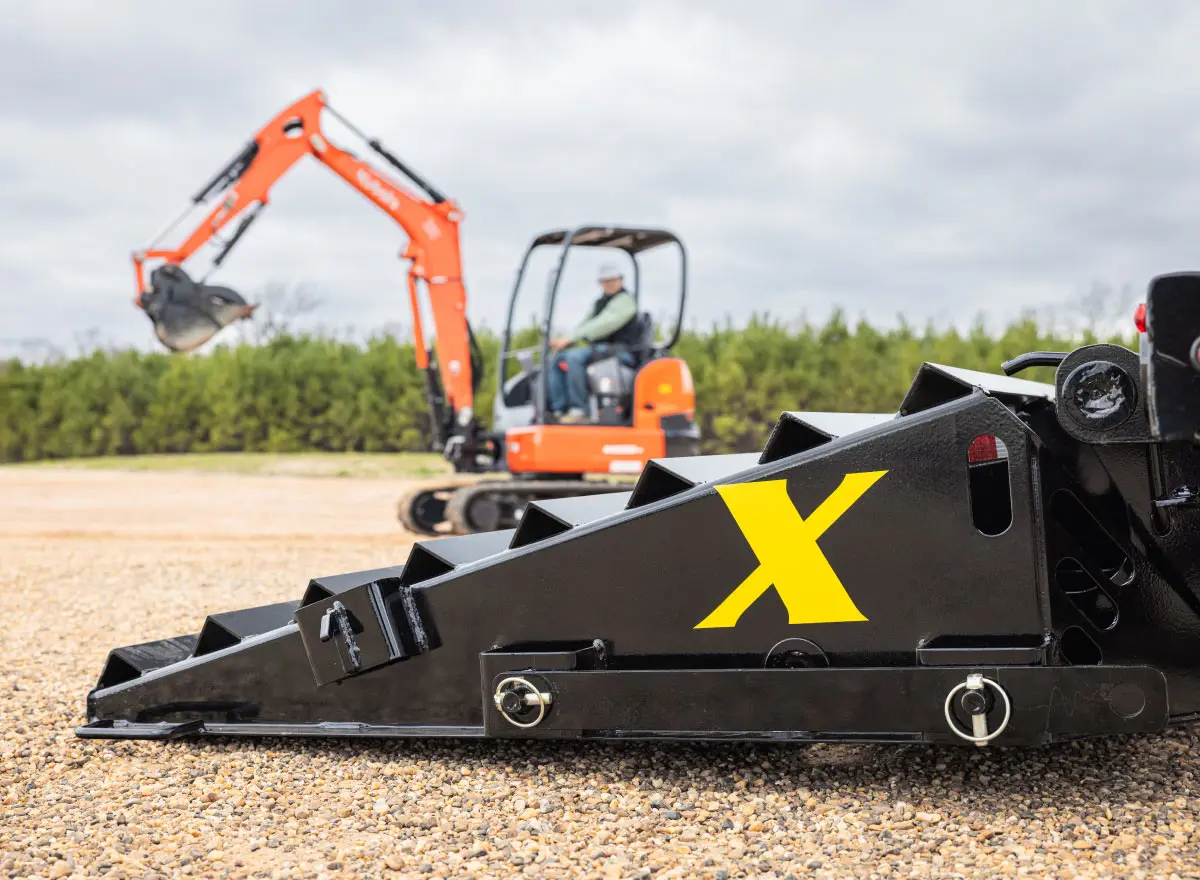

| Ramps | 5' Tall, 16" Stand Up Rams (Spring Assisted) | 36" Wide Mega Ramps (D3 Models Only) Super-Wide Ramps (60" Tall x 30" Wide) w/ Blackwood Pro-Filled Dovetail |
| Dovetail | 40” Cleated Dovetail | |
| Stake Pockets | Stake Pockets Along Both Sides (Quantity Varies by Length) | |
| Trailer Plug | 7-Way RV | |
| Lights | L.E.D. D.O.T. Stop, Tail, Turn & Clearance | |
| Wiring | Sealed, Modular Cold-Weather Wiring Harness | |
| Tires | ST215/75 R-17.5 Load Range H | |
| Bolt Pattern | 8-Lug | |
| Spare Mount | Front Spare Tire Mount | |
| Spare Tire | Not Included | Spare Tire (ST215/75 R-17.5 LR-H) |
| Paint Color | Black | Red Grey White Desert Tan Jet Blue Slime Green Implement Green Equipment Orange Medium Yellow |
| Rubrail | Rub Rail Along Both Sides | |

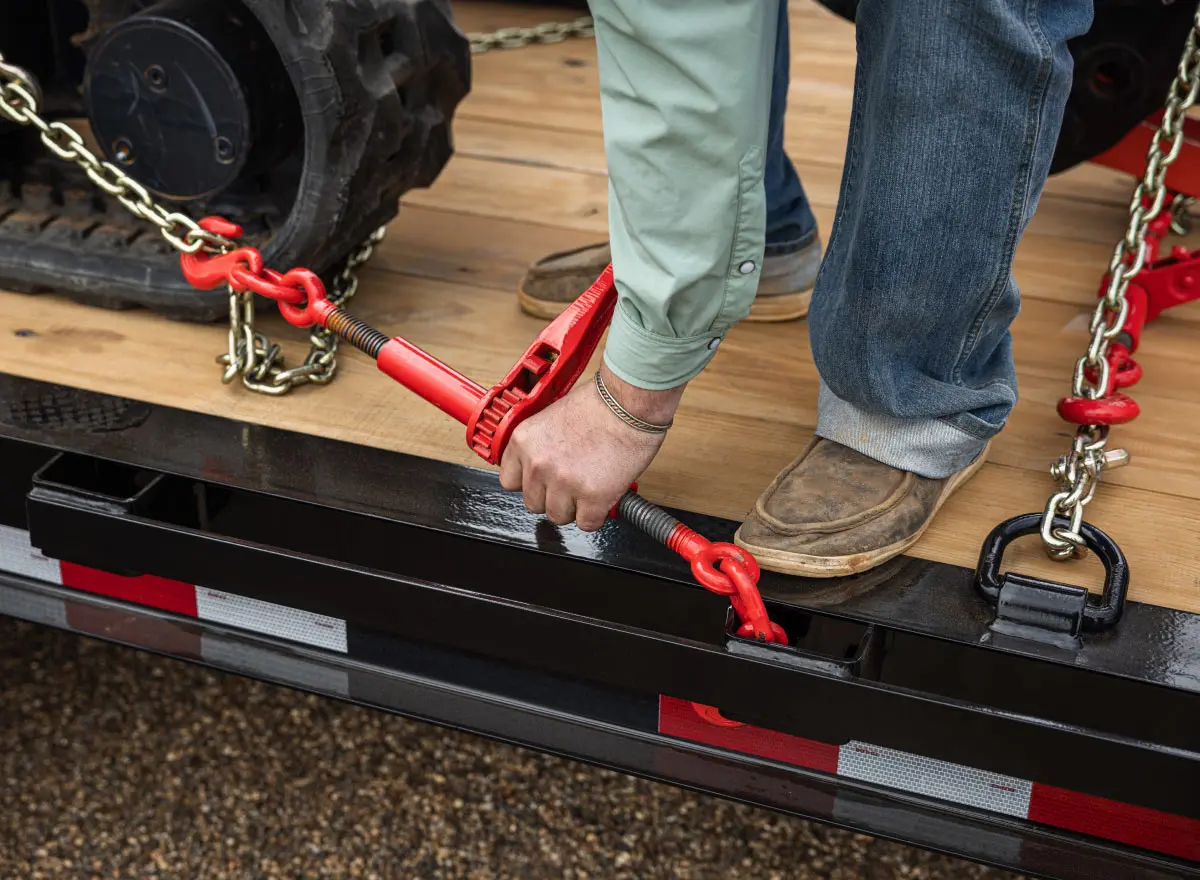

| Tie-Downs | (6) 5/8" D-Rings | |
| Break-Away Kit | Complete Breakaway System w/ Zip Breakaway Cable | |

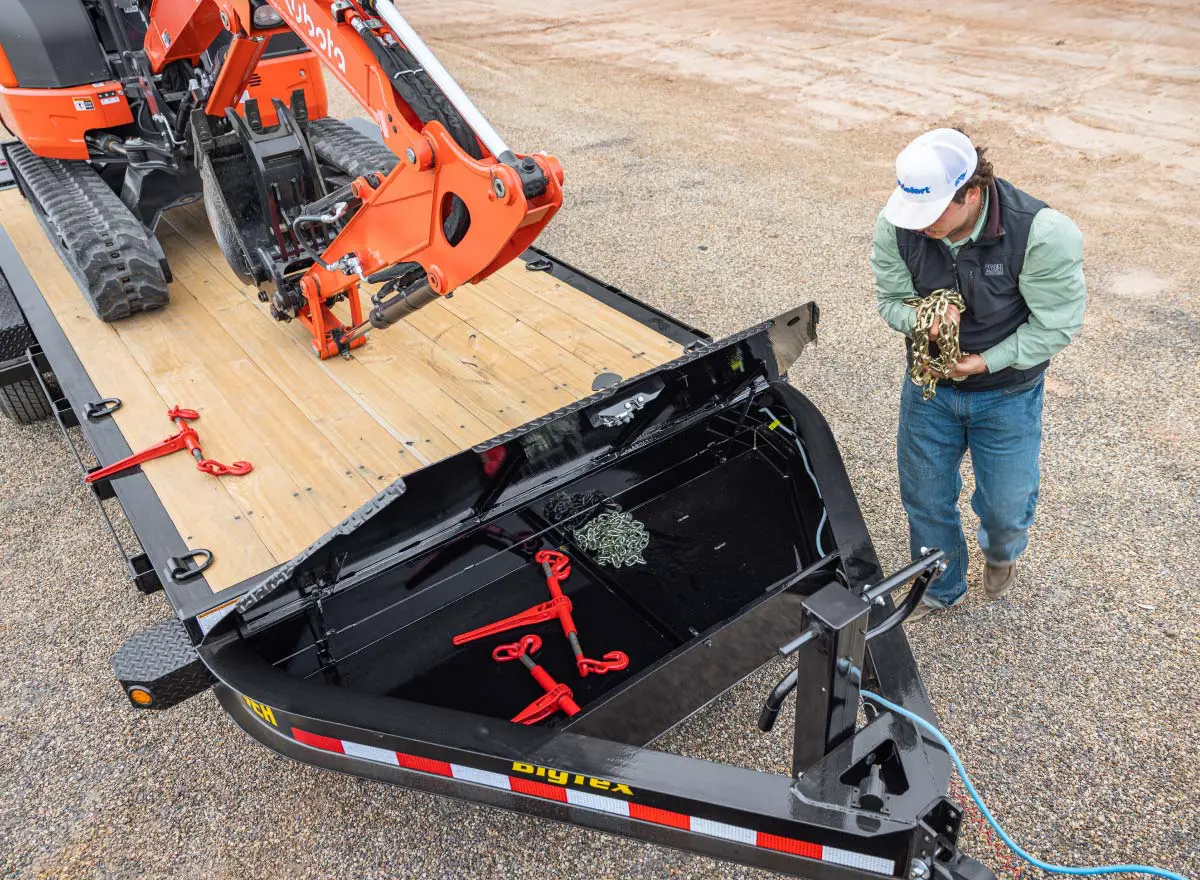

| Storage | Lockable Toolbox Between Risers on Gooseneck Model Mega-Sized Integrated Tongue Box with Lockable Lid (Bumper Pull Only) | |
| Steps & Handles | Convenient Side-Step to Access Deck |
