14ET

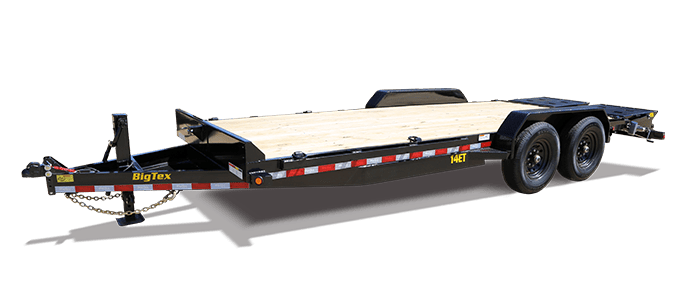

Heavy Duty Tandem Axle Equipment Trailer

Engineered to get the job done like no other, the 14ET Heavy Duty Tandem Axle Equipment Trailer delivers the versatility, durability, and strength required to take on the difficult demands of the heavy-duty hauling and equipment transportation. Ready to go for the longest and hardest hauls, it’s the ideal heavy-duty trailer solution for construction workers, professional landscapers, farmers, and more.

14ET

Heavy Duty Tandem Axle Equipment Trailer

Engineered to get the job done like no other, the 14ET Heavy Duty Tandem Axle Equipment Trailer delivers the versatility, durability, and strength required to take on the difficult demands of the heavy-duty hauling and equipment transportation. Ready to go for the longest and hardest hauls, it’s the ideal heavy-duty trailer solution for construction workers, professional landscapers, farmers, and more.

14ET 14ET

Model Pull Type GVWR Empty Weight Cargo Capacity Bed Length Bed Width
14ET-22KR Bumperpull 14000 lbs 3140 lbs 10860 lbs 22' 83"
14ET-20KR Bumperpull 14000 lbs 2940 lbs 11060 lbs 20' 83"
14ET-18KR Bumperpull 14000 lbs 2740 lbs 11260 lbs 18' 83"
14ET-16KR Bumperpull 17500 lbs 2540 lbs 14960 lbs 16' 83"

Standard Feature Available Options
Axles 2 - 7,000# Premium, Cambered Axles with Quick-Lubricating Hubs
Brakes Forward Self-Adjusting Electric Brakes on Both Axles
Suspension Multi-Leaf Slipper Spring w/ Equalizer

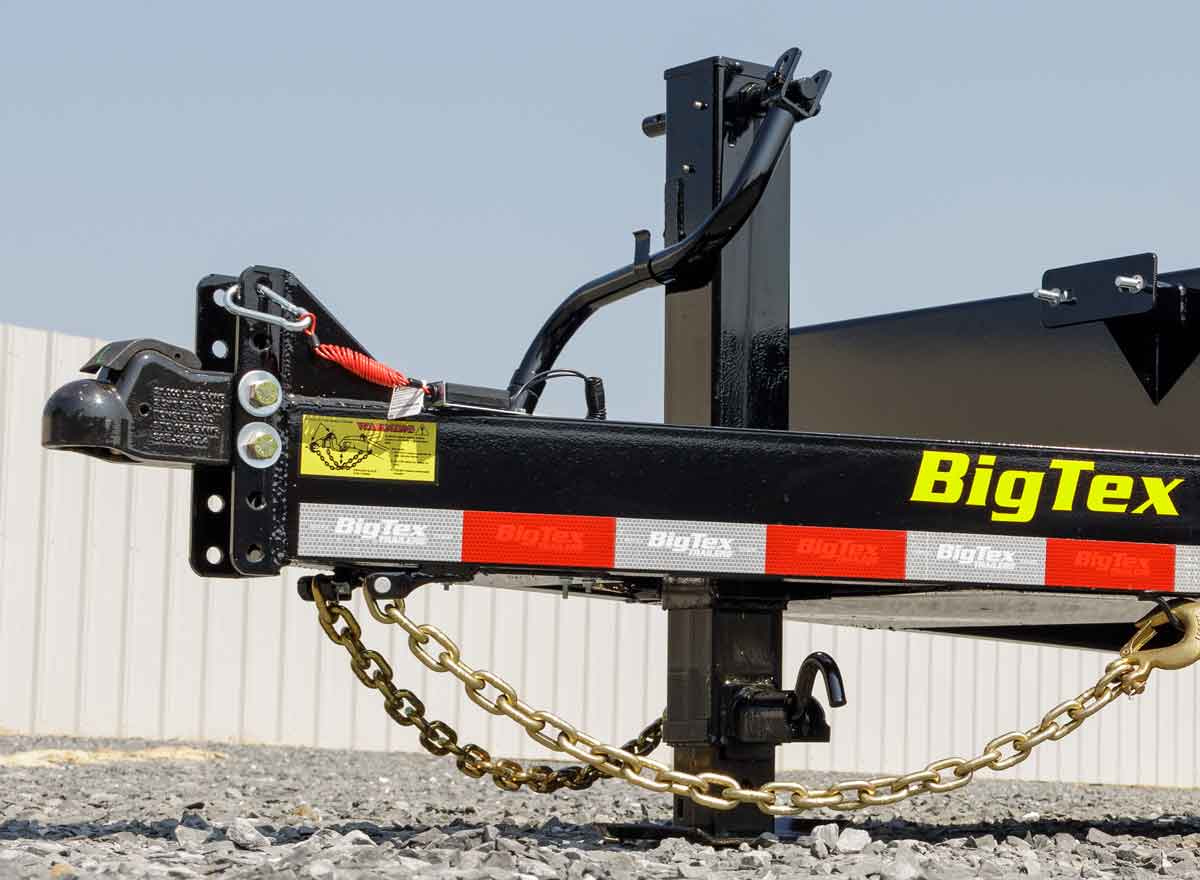

Coupler 2-5/16" Ball, Adjustable Demco EZ Latch Coupler 2-5/16" Round Gooseneck Coupler on Gooseneck models Adjustable Pintle in Channel in Lieu of Coupler
Safety Chains 3/8" Grade 70 w/ Safety Latch Hook (2 ea)
Jack 12,000# Drop-Leg Jack (Side Wind) Dual Jacks on Gooseneck Model
Frame 6" Channel
Cross-Members 3" Channel on 16" Centers
Front Stop Rail 3/16" Fabricated Front Stop Rail (Bumper Pull Only)
Floor Treated Pine Floor Blackwood Pro Rubber Infused Lumber Floor (per linear foot) 1/8” Diamond Plate Steel Floor (Per Square Foot)
Fenders 9" x 72" 14 Ga. Diamond Plate Double Broke w/ Back
Ramps 4’ Tall, 16" Knee Ramps (Spring Assisted) 44" Wide Mega Ramps (Dovetail only) 5' Rear Slide-In Ramps (Straight Deck models only) Super-Wide Ramps (60" Tall x XX" Wide)
Dovetail 3' Cleated Dovetail Blackwood Pro Dovetail (Standard with Super-Wide Ramps)
Stake Pockets Stake Pockets Along Both Sides (Quantity Varies by Length)
Trailer Plug 7-Way RV
Lights Recessed, Grommet-Mounted L.E.D. Lighting
Wiring Sealed, Modular Cold-Weather Wiring Harness
Tires ST235/80 R-16 Load Range E Radial Tires Tire Upgrade (ST235/80 R-16 LR-G)
Bolt Pattern 8-Lug
Spare Mount Front Spare Tire Mount
Spare Tire Not Included Spare Tire & Wheel (ST235/80 R-16 LR-E) Spare Tire Upgrade (ST235/80 R-16 LR-G)
Paint Color Black Red Grey White Desert Tan Jet Blue Slime Green Implement Green Equipment Orange Medium Yellow
Rubrail Rub Rail Along Both Sides
Tie-Downs (6) 5/8" D-Rings Extra 5/8" D-Rings Recessed D-Ring in Floor (Steel Floor Only)
Break-Away Kit Complete Breakaway System w/ Zip Breakaway Cable
Storage Tongue Tool Tray (Bumper Pull Only) Lockable Toolbox Between Risers on Gooseneck Model

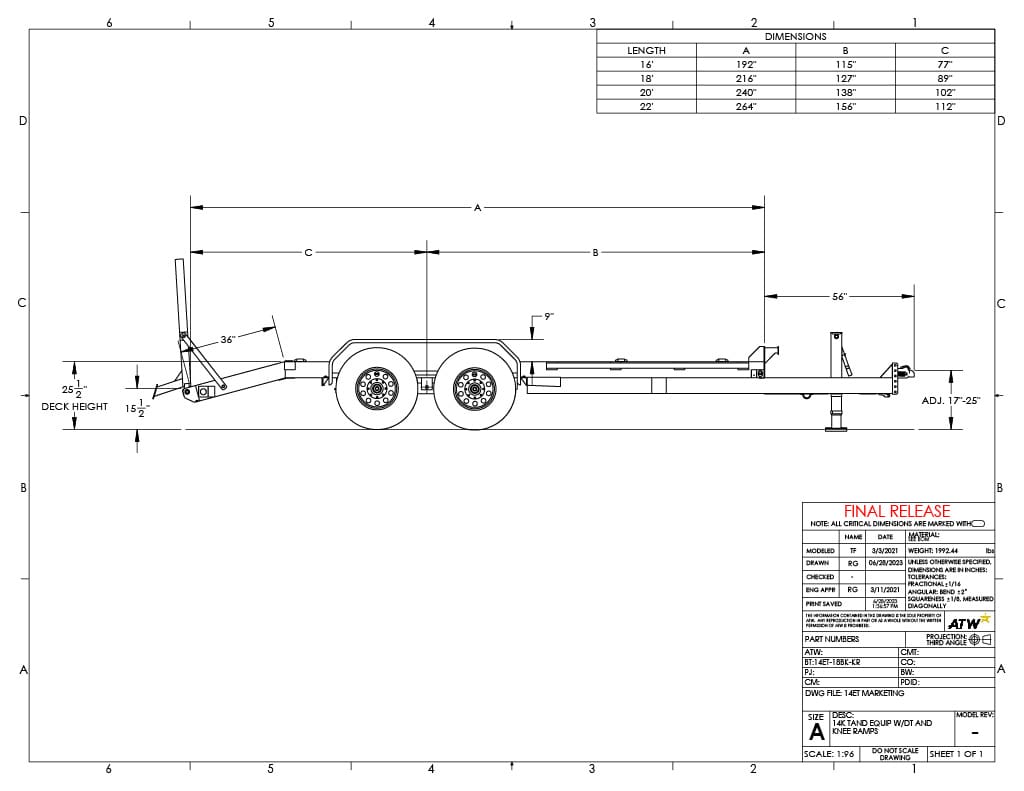

https://www.bigtextrailers.com/wp-content/uploads/2023/07/14et_specdiagram_v2.jpg
