Trailers / Equipment & Tilt Trailers / Low-Profile Equipment Haulers

10ET 10ET
a 10ET low profile equipment hauler big tex trailer

10ET

Pro Series Tandem Axle Equipment Trailer

When you need a jack of all trades that’s a master of all your equipment hauling needs, the 10ET Pro Series Tandem Axle Equipment Trailer won’t let you down. It brings excellent durability to the table when you’re hauling light and medium duty equipment and features an 83”-wide deck, so the possibilities are nearly endless. And it’s designed for safety and performance down to the last bolt, whether you’re driving or loading. It’s got forward self-adjusting brakes for easier brake maintenance, plus a cleated dovetail design so you can confidently load equipment without slipping. When you combine innovation, durability, and versatility, this trailer is what you get.

Model Pull Type GVWR GAWR (Ea. Axle) Empty Weight Cargo Capacity Bed Length Bed Width A B C Tongue Length
10ET-18KR Bumperpull 9990 lbs 5200 lbs 2420 lbs 7570 lbs 18' 83" 217-1/2" 127" 90-1/2" 56-3/4"
10ET-20KR Bumperpull 9990 lbs 5200 lbs 2520 lbs 7470 lbs 20' 83" 240" 138" 102" 56-3/4"

Standard Feature Available Options
Axles 2 - 5,200# Premium, Cambered Axles with Quick-Lubricating Hubs
Brakes Forward Self-Adjusting Electric Brakes on Both Axles
Suspension Multi-Leaf Slipper Spring w/ Equalizer
Coupler Adjustable Forged 2-5/16” Adjustable Pintle in Channel in Lieu of Coupler
Safety Chains 1/4" Grade 70 w/ Safety Latch Hook (2 ea)
Jack 8,000# Set-Back, Drop-Leg Jack
Frame 5" Channel
Cross-Members 3" Channel
Front Stop Rail 3/16" Fabricated Front Stop Rail
Floor Treated Pine Floor Blackwood Pro Rubber Infused Lumber Floor (per linear foot) 1/8” Diamond Plate Steel Floor (Per Square Foot)
Fenders Tear Drop Removable
Ramps 4’ Tall, Channel Knee Ramps 5’ Rear Slide In Ramps (Straight Deck w/ Stabilizers) 3’ Mega Ramps

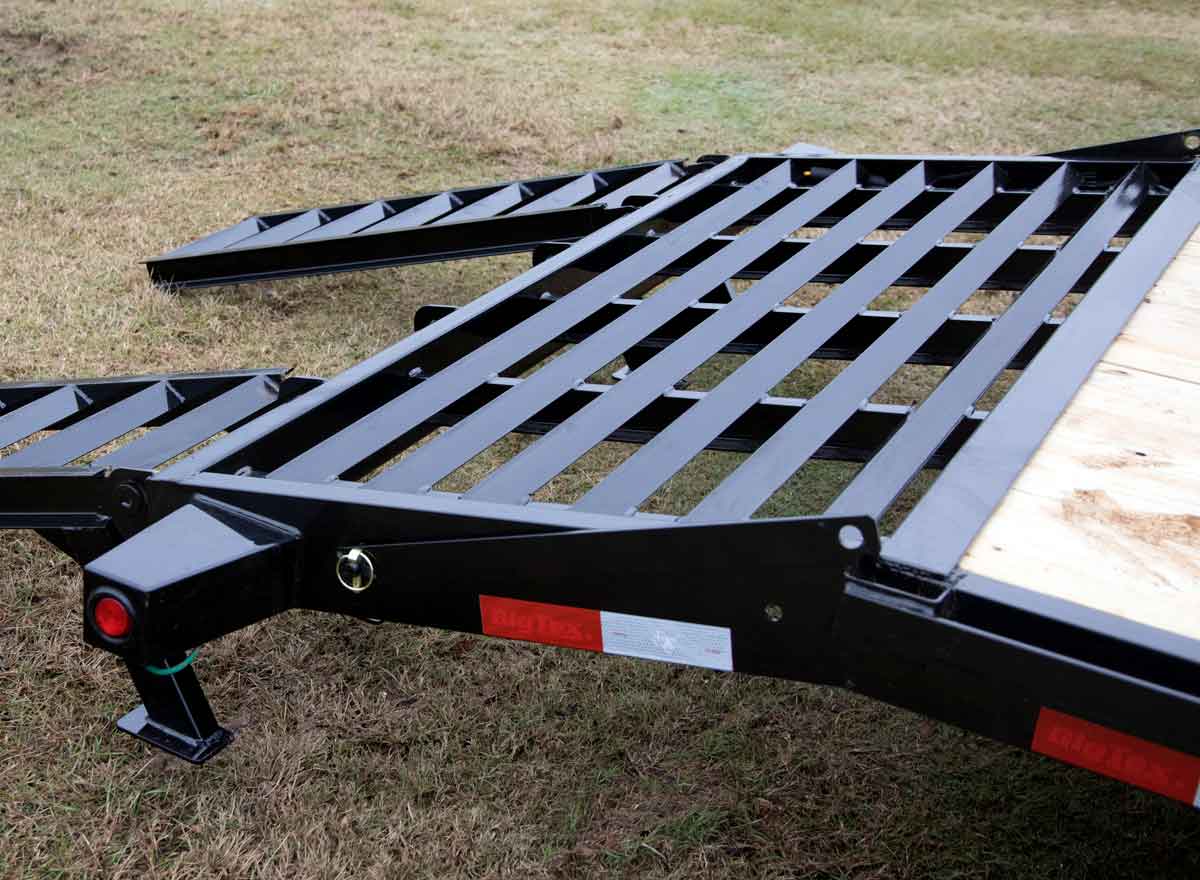

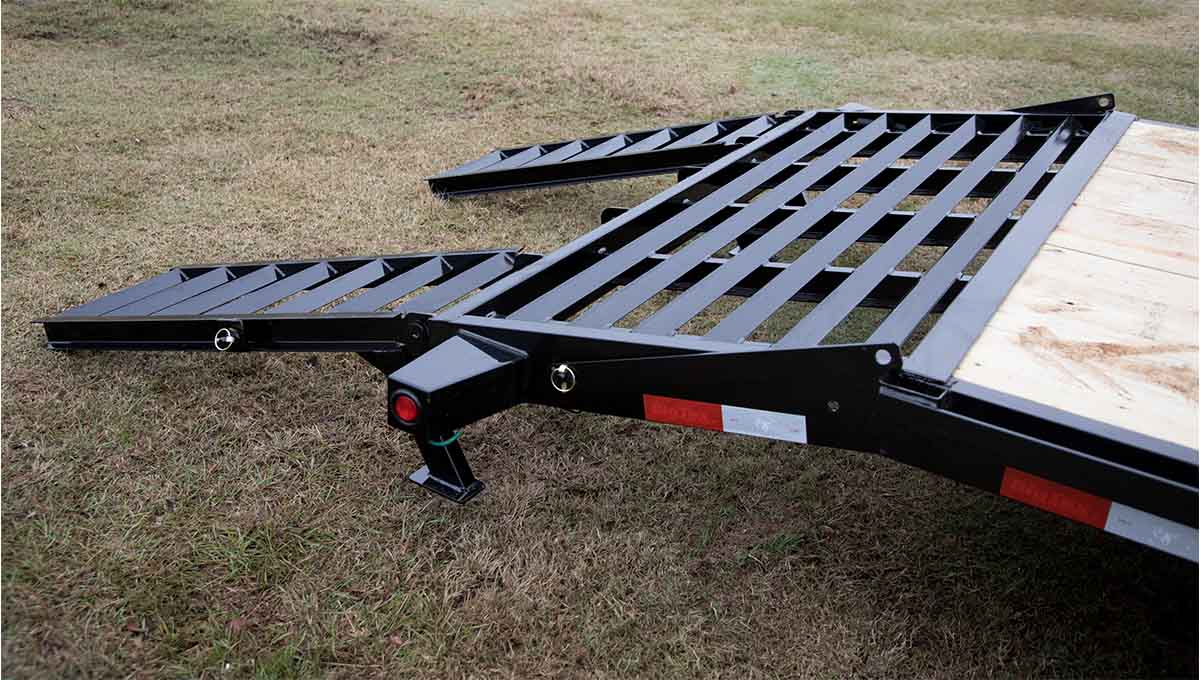

Dovetail 3' Cleated Dovetail
Stake Pockets Stake Pockets Along Both Sides (Quantity Varies by Length)
Trailer Plug 7-Way RV
Lights Recessed, Grommet-Mounted L.E.D. Lighting
Wiring Sealed, Modular Cold-Weather Wiring Harness
Tires ST225/75 R-15 Load Range D Radial Tires
Bolt Pattern 6-Lug

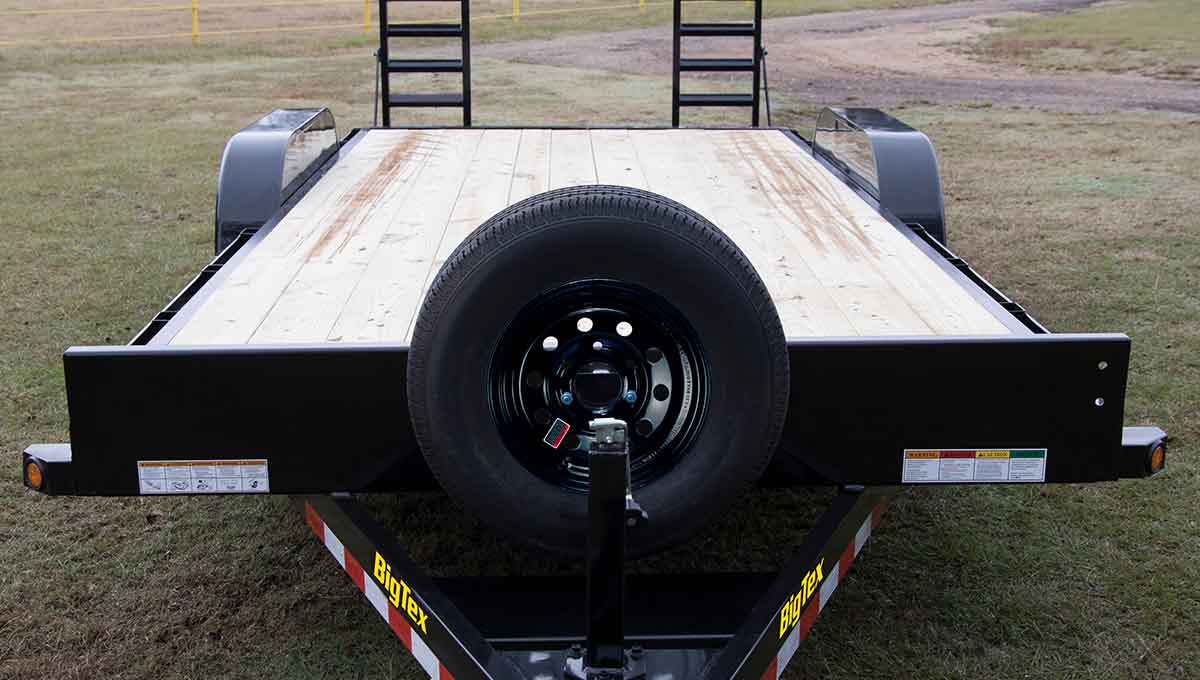

Spare Mount Front Spare Tire Mount
Spare Tire Not Included Spare Tire & Wheel (ST225/75 R-15 LR-D)
Paint Type Professional Finish w/ Primer Standard
Paint Color Black Red Grey White Desert Tan Jet Blue Slime Green Implement Green Equipment Orange Medium Yellow
Rubrail Rub Rail Along Both Sides
Tie-Downs (6) 5/8" D-Rings Extra 5/8" D-Rings Recessed D-Ring in Floor (Steel Floor Only)
Break-Away Kit Complete Breakaway System w/ Zip Breakaway Cable

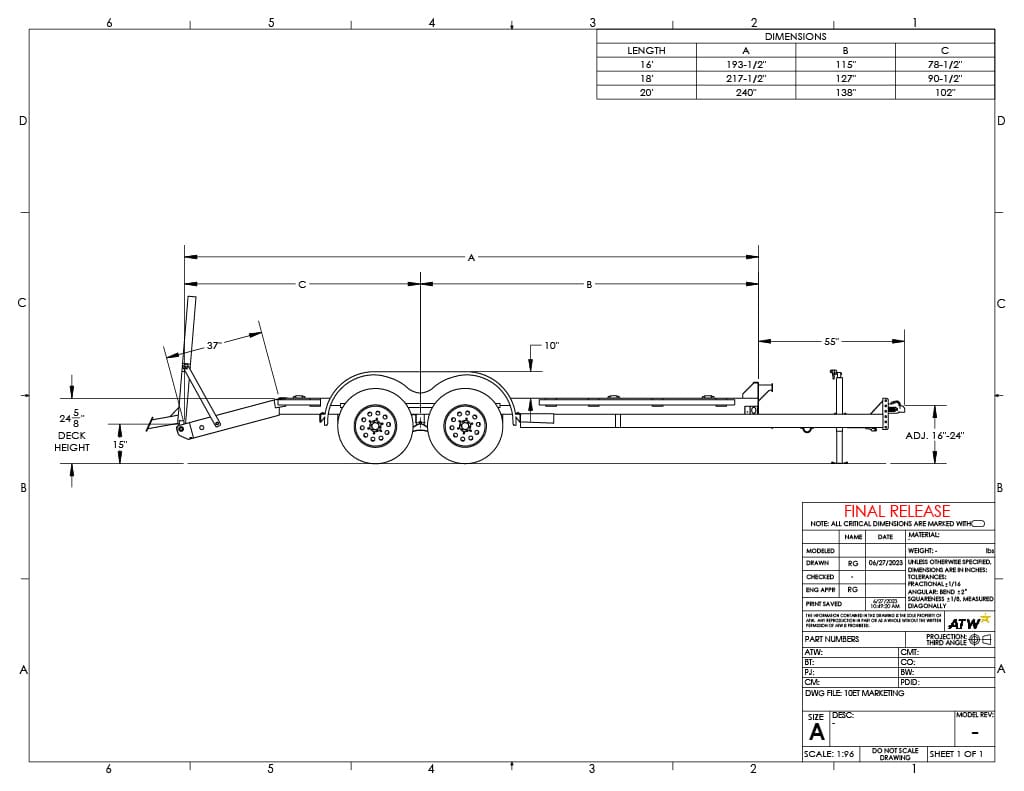

https://www.bigtextrailers.com/wp-content/uploads/2023/07/10et_specdiagram_v2.jpg
