14OT

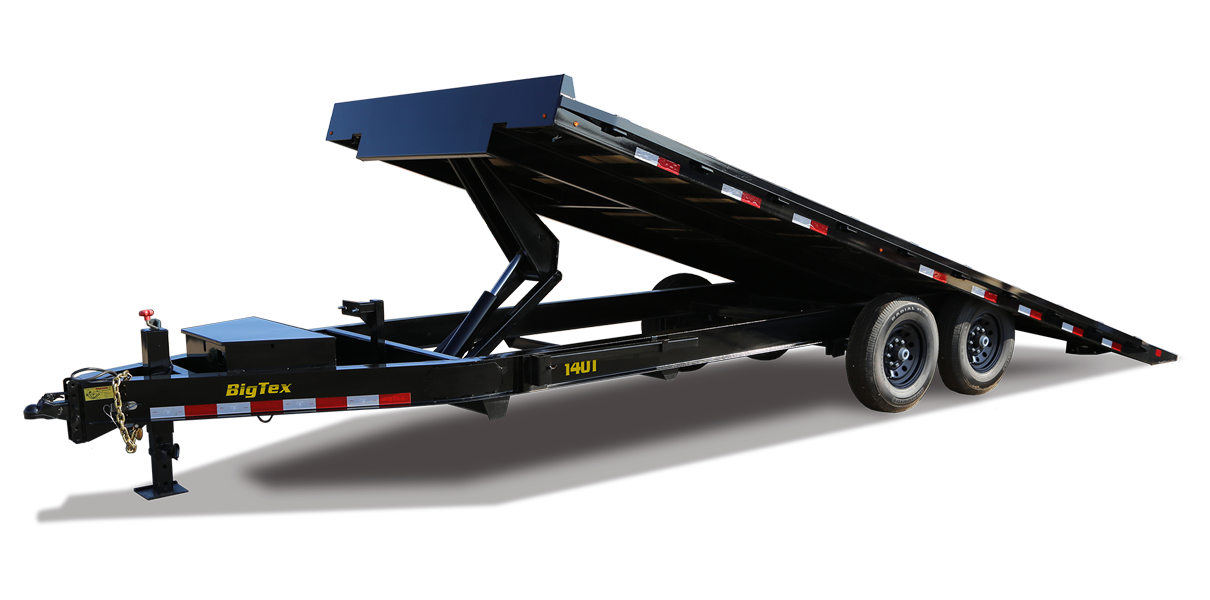

Heavy Duty Over-the-Axle Tilt Bed Equipment

The 14OT heavy-duty over-the-axle tilt trailer is designed with a scissor-style hydraulic hoist, providing more load stability & energy efficiency than single-ram systems and less maintenance and upkeep than dual-ram systems. Optimized for low-profile equipment, the 14OT has a knife-edge at the rear of the bed to provide a smooth transition while loading and unloading.

Interested in purchasing this trailer?

Locate a 14OT

Specs...

360°

AXLE (2) 7,000# EZ Lube w/Electric Brakes
JACK 12,000# Drop Leg Jack (Top Wind)
TIRE ST235/80 R-16 Load Range E
FLOOR 2" Treated Pine or Douglas Fir*
FRAME 8" I-Beam, 10# (13# on 26 Model)
WHEEL 16" x 6"; Heavy Black Mod 8 Bolt
FINISH Superior Quality Finish is Applied for a Highly Decorative and Protective Finish
LIGHTS L.E.D. D.O.T. Stop, Tail, Turn & Clearance
TONGUE Integral w/ Frame
COUPLER Adjustable Cast 2-5/16"
G.V.W.R. 14,000#
TOP RAIL None
ELEC. PLUG 7-Way RV
HITCH TYPE Bumper Pull
SIDE RAILS 6" x 2" x 1/8" Rectangular Tubing w/Stake Pockets & Rubrail on Both Sides
SUSPENSION Multi-Leaf Slipper Spring w/Equalizer
CROSSMEMBERS 3" Channel
FINISH (Prep) Steel is Cleaned to Ensure a Professional Smooth Finish
SAFETY CHAINS 3/8" Grd. 70 w/Safety Latch Hook (2 each)
G.A.W.R. (Ea. Axle) 7,000#

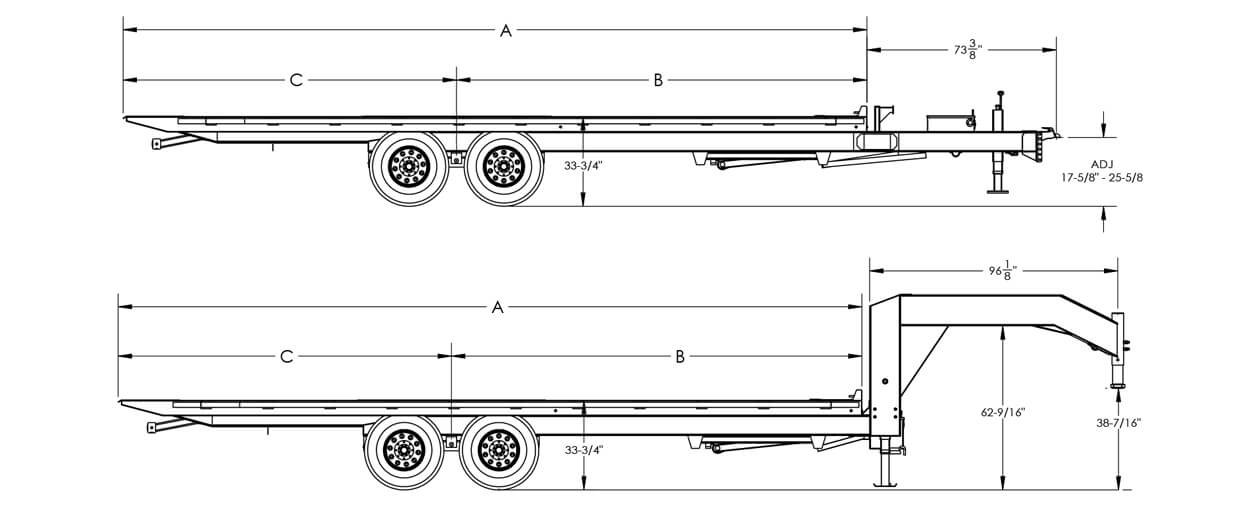

Models

Model Weight Description
14OT-22 4,745# 102" x 22' Over-The-Axle Bumperpull Tilt
14OT-22GN 4,970# 102" x 22' Over-The-Axle Gooseneck Tilt
14OT-24 4,950# 102" x 24' Over-The-Axle Bumperpull Tilt
14OT-24GN 5,175# 102" x 24' Over-The-Axle Goosneeck Tilt
14OT-26 5,290# 102" x 26' Over-The-Axle Bumperpull Tilt
14OT-26GN 5,515# 102" x 26' Over-The-Axle Goosneeck Tilt

& Features

  • Grommet Mount Sealed Lighting

    Grommet Mount Sealed Lighting

    Protected wiring, inside the framing or in protected channels, with access to junctures.

  • Rubrail and Tie Down Pockets Along Sides

    Rubrail and Tie Down Pockets Along Sides

    For added convenience and stability when securing loads.

  • LED Lighting Package

    LED Lighting Package

    LED lighting is brighter and lasts longer.

  • EZ Lube Hubs

    EZ Lube Hubs

    EZ Lube hubs are simple to maintain and completely submersible with no disassembly required.

  • Dexter Brand Axles

    Dexter Brand Axles

    Dexter Axles outperform all others for strength and a smooth ride.

  • Nev-R-Adjust Electric Brakes on All Hubs

    Nev-R-Adjust Electric Brakes on All Hubs

    Nev-R-Adjust Brakes ensure safety and automatically adjust to proper clearances during travel.

The 14OT also comes equipped with:

  • Rubrail and Tie Down Pockets Along Sides
  • Adjustable Cast 2-5/16" Coupler
  • Tongue Integral with Frame for Added Strength
  • 12,000# Drop-Leg Jack, Top Wind
  • *Dual Jacks on Gooseneck Model
  • EZ Lube Hubs
  • Dexter Brand Axles
  • Cambered Axles
  • Nev-R-Adjust Electric Brakes on All Hubs
  • Lockable Pump Box in Front
  • Power Up/Power Down Hydraulic Pump
  • Scissor Style Hydraulic Hoist
  • 110V On-Board Battery Charger
  • Rear Diamond Plate Knife Edge w/ Collapsible Bumper
  • Grommet Mount Sealed Lighting
  • L.E.D. Lighting Package
  • Sealed Modular Wiring Harness
  • Spare Tire Mount (In Tongue Area)
  • Complete Break-A-Way System w/Charger
  • Zip Break-A-Way Cable
  • Radial Tires
  • Recessed Winch Plate at Front of Deck

Optional Equipment

Category Description
BODY Blackwood Rubber Infused Floor
BRAKES Hydraulic Surge Brakes 2 Axles w/Adjustable Demco Actuator
CARGO CONTROL B40 5/8" D-Ring
COUPLERS Adjustable Pintle in Channel in Lieu of Coupler
JACKS 12,000# Elec/Hyd Jack by Stillwell
JACKS Dual 12,000# Elec/Hyd Jacks by Stillwell
JACKS Dual 2-Speed Landing Gear
JACKS Dual Single Speed Drop Leg Jacks
POWER 5 Watt Solar Charger
POWER 9,000# Electric Winch Package
POWER Wireless Remote
TIRE/WHEEL Spare Tire (ST235/80 R-16 LR-E)
TIRE/WHEEL Spare Tire Upgrade (ST235/85 R-16 LR-G)
TIRE/WHEEL Tire Upgrade (ST235/85 R-16 LR-G)
