Telescopic Hoist Cylinder
The 12-ton cylinder creates more leverage for a smoother, more efficient lift.

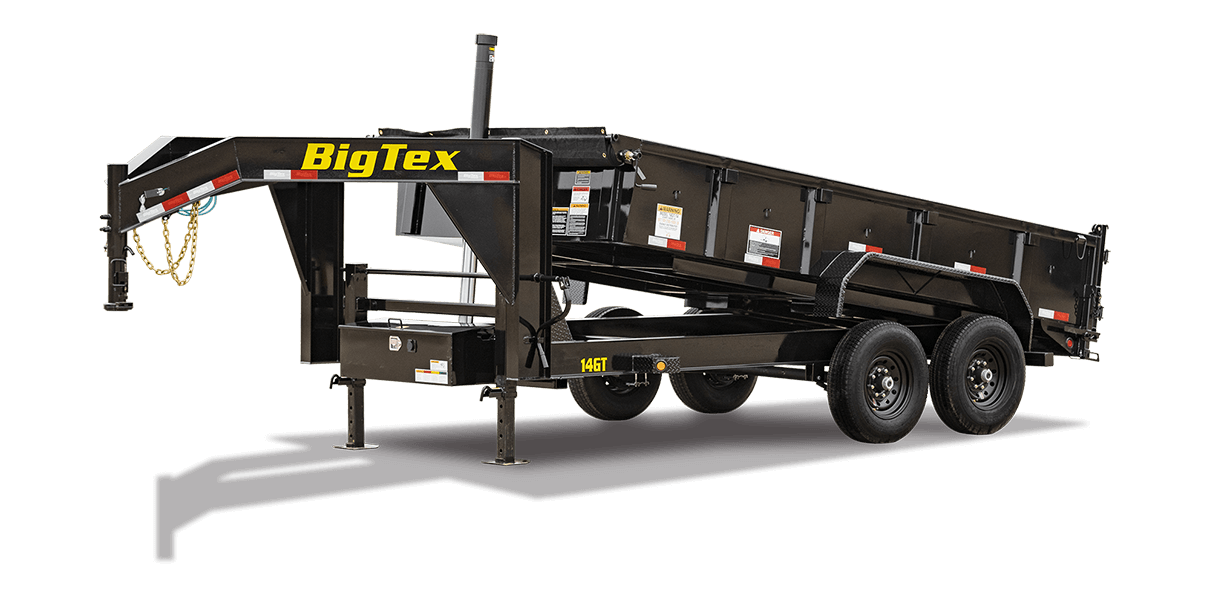

This heavy-duty gooseneck trailer offers a 12-ton, 3-stage telescopic hydraulic cylinder that provides a superior lift capacity for any load.
Interested in purchasing this trailer?
| JACK | Dual 12,000# Drop Leg Side Wind |
|---|---|
| NECK | 10" I-Beam |
| TIRE | ST235/80 R-16 Load Range E |
| FLOOR | 10 Gauge Smooth Steel |
| WHEEL | 16" x 6"; Black Mod, 8 Bolt |
| FINISH | Superior Quality Finish is Applied for a Highly Decorative and Protective Finish. |
| LIGHTS | L.E.D. D.O.T. Stop, Tail, Turn and Clearance |
| COUPLER | 2-5/16" Round Adj. Pin (25K) |
| FENDERS | 9" x 72" 14 Ga. Diamond Plate Double Square Broke |
| G.V.W.R. | 15,900# |
| ELEC. PLUG | 7-Way RV |
|---|---|
| MAIN FRAME | 8" I-Beam, 13# |
| SUSPENSION | Multi-Leaf Spring w/Equalizer |
| FINISH (Prep) | Steel is Cleaned to Ensure a Professional Smooth Finish. |
| SAFETY CHAINS | 3/8" Grd. 70 w/Safety Latch Hook (2 each) |
| DUMP BODY SIDES | 24" Tall Sides (10 Gauge) |
| BED CROSSMEMBERS | 3" Channel, 16" Centers |
| DUMP BODY TOP RAIL | 3" x 2" Rectangular Tubing |
| G.A.W.R. (Ea. Axle) | 7,000# |
| Model | Weight | Description |
|---|---|---|
| 14GT-14 | 4,650# | 83" x 14' Heavy Duty Telescopic Gooseneck Dump |
| 14GT-16 | 5,110# | 83" x 16' Heavy Duty Telescopic Gooseneck Dump |
The 12-ton cylinder creates more leverage for a smoother, more efficient lift.
8" I-Beam frame and 10" I-Beam neck gives superior strength and durability.
Heavy duty steel sides with 24" height and J hooks along the side for ideal cargo containment.
10 Gauge steel floor
Multi-functional rear gate that can be used as a spreader gate or open as barn doors.
Premium brand axles with forward self-adjusting electric brakes.
| Category | Description |
|---|---|
| AXLES | Drop Axles (Lowers Deck Height to 24" from Ground) |
| BODY | 24" Expanded Metal Side Extensions |
| BODY | 3 Solid Sheet Metal Sides |
| BODY | 4 Solid Sheet Metal Sides |
| BODY | Removable Deck on the Neck - Bolt On (8W x 6L) |
| BODY | Upgrade Floor to 7-Gauge Steel |
| JACKS | Dual 2-Speed Landing Gear |
| POWER | 5 WATT SOLAR CHARGER |
| POWER | Wireless Remote |
| RAMPS | 6.5 Slide In Ramp Package |
| TIRE/WHEEL | Spare Tire (ST235/80 R-16 LR-E) |
| TIRE/WHEEL | Spare Tire Upgrade (ST235/80 R-16 LR-G) |
| TIRE/WHEEL | Tire Upgrade (ST235/80 R-16 LR-G) |
Big Tex Trailers reserves the right to change price, design, material and/or specifications without notice or obligation.
