Adjustable Forged Coupler
Built for durability and a secure connection to tow vehicle.

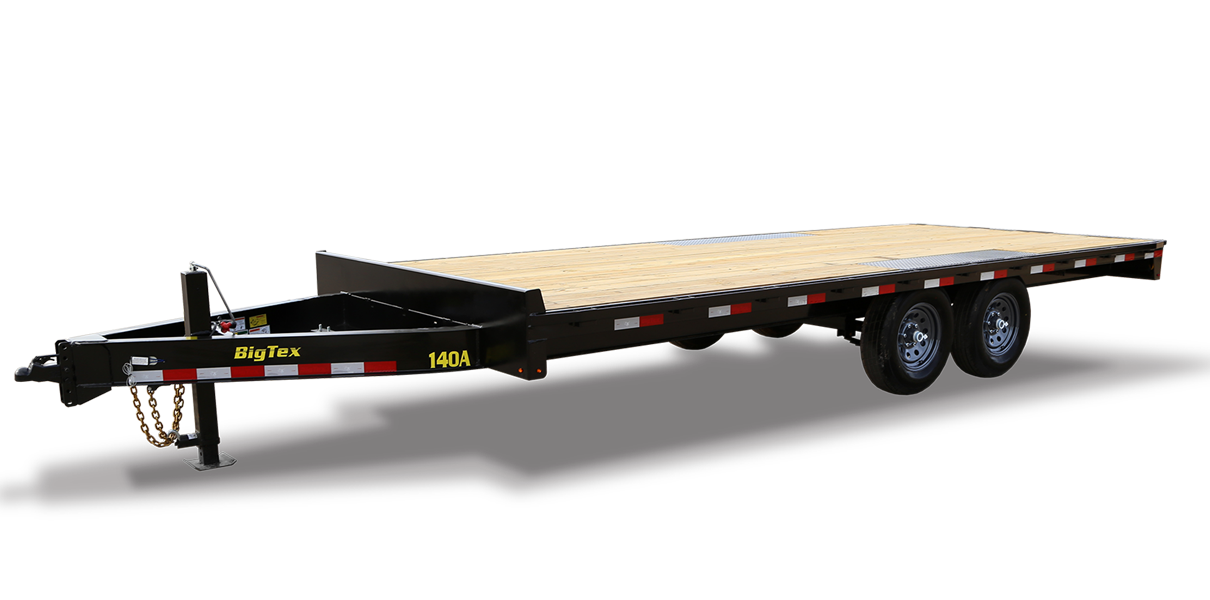

The 14OA Heavy-Duty Over-the-Axle Bumperpull Trailer from Big Tex features a 102-inch width and has a greater G.V.W.R. than the 10OA. This durable trailer comes in multiple lengths (16, 18 and 20) and has 8-foot slide-in ramps, ideal for hauling pallets and medium-weight equipment.
Interested in purchasing this trailer?
| AXLE | (2) 7,000# Quick Lubricating w/Electric Brakes |
|---|---|
| JACK | 12,000# Drop Leg Jack (Bolted On) |
| TIRE | ST235/80 R-16 Load Range E |
| FLOOR | 2" Treated Pine or Douglas Fir* |
| FRAME | 8" I BEAM |
| WHEEL | 16" x 6"; Black Mod 8 Bolt |
| FINISH | Superior Quality Finish is Applied for a Highly Decorative and Protective Finish. |
| LIGHTS | L.E.D. D.O.T. Stop, Tail, Turn & Clearance |
| TONGUE | Integral w/Frame (8" I-Beam, 10#) |
| COUPLER | Adjustable Forged 2-5/16" 18,000# Demco EZ Latch |
| G.V.W.R. | 14,000# |
|---|---|
| TOP RAIL | NONE |
| UPRIGHTS | 5" Channel w/Stake Pockets & Rubrail on Both Sides |
| ELEC. PLUG | 7-Way RV |
| HITCH TYPE | Bumper Pull |
| SUSPENSION | Multi-Leaf Slipper Spring w/Equalizer |
| CROSSMEMBERS | 3" x 3.5" Channel |
| FINISH (Prep) | Steel is Cleaned to Ensure a Professional Smooth Finish. |
| SAFETY CHAINS | 1/4" Grd. 70 w/Safety Latch Hook (2 each) |
| G.A.W.R. (Ea. Axle) | 7,000# |
| Model | Weight | Description |
|---|---|---|
| 14OA-16 | 3,250# | 102" x 16' Heavy Duty Over-The-Axle Bumperpull |
| 14OA-18 | 3,450# | 102" x 18' Heavy Duty Over-The-Axle Bumperpull |
| 14OA-20 | 3,650# | 102" x 20' Heavy Duty Over-The-Axle Bumperpull |
| 14OA-22 | 3,850# | 102" x 22' Heavy Duty Over-The-Axle Bumperpull |
Built for durability and a secure connection to tow vehicle.
For added convenience and stability when securing loads.
Simple to maintain and completely submersible with no disassembly required.
A convenient location that provides added strength to the joint service.
Industry-leading axles with a smooth, reliable ride.
Ensure safety and automatically adjust to proper clearances during travel.
| Category | Description |
|---|---|
| BODY | Blackwood Pro Rubber Infused Floor |
| BRAKES | Hydraulic Surge Brakes 2 Axles w/Adjustable Demco Actuator |
| CARGO CONTROL | 5/8" D-Ring |
| COUPLER | Adjustable Pintle in Channel in Lieu of Coupler |
| RAMPS | 5 HD Stand Up Ramps (Standard Equipped on "+3" Models) |
| RAMPS | 8 Rear Slide In Ramps |
| TIRE/WHEEL | Spare Tire (ST235/80 R-16 LR-E) |
| TIRE/WHEEL | Spare Tire Upgrade (ST235/85 R-16 LR-G) |
| TIRE/WHEEL | Tire Upgrade (ST235/85 R-16 LR-G) |
Big Tex Trailers reserves the right to change price, design, material and/or specifications without notice or obligation.
