4XPH

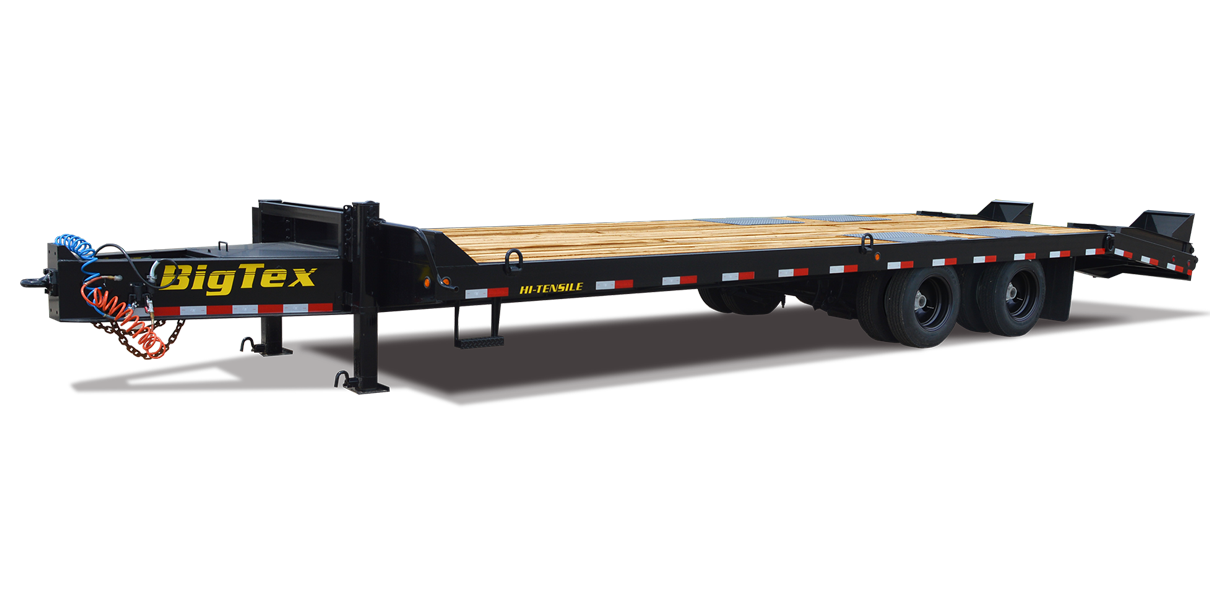

Pintle Heavy Equipment Transport Trailer

The 4XPH Pintle Heavy Equipment Transport Trailer from Big Tex Trailers is a heavy duty pintle hitch style trailer. Equipped with a 14" I beam and junior I beam crossmembers, this unit is sure to handle the needs of heavy equipment haulers everywhere.

THIS MODEL IS TEMPORARILY UNAVAILABLE

Please reach out to your local dealer for any current inventory of this model.

Specs...

4XPH
AXLE (2) 22,500# Dual Wheel Air Brake - Oil Bath
JACK 12,000# Drop Leg Jack- Top Wind
TIRE ST215/75 R-17.5 Load Range H
FLOOR 2" Nominal Oak (S4S)
FRAME 14", 26# I-Beam
WHEEL 6.75 x 17.5, 10 Bolt Budd
FINISH Superior Quality Finish is Applied for a Highly Decorative and Protective Finish
LIGHTS LED D.O.T. Stop, Tail, Turn & Clearance
TONGUE Integral w/Frame (14" I-Beam, 26#)
COUPLER 60,000# 3" ID Pintle Eye
DOVETAIL 5 Cleated Dovetail w/5 Double Hinged, Spring-Assisted Flip-Over Ramps
G.V.W.R. 48,000#
ELEC. PLUG 7 Way Semi Style
HITCH TYPE Pintle Hitch
SIDE RAILS 8" Channel w/(6) 1" D-Rings
SUSPENSION Heavy Duty 44,000# Adjustable
CROSSMEMBERS 6" Jr. I-Beam on 16" Centers
FINISH (Prep) Steel is Cleaned to Ensure a Professional Smooth Finish
SAFETY CHAINS 1/2" Grd. 80 w/Safety Latch Hook (2 each)
G.A.W.R. (Ea. Axle) 18,160#

Models

Model Weight Description
4XPH-20+5 8,950# 102" x 20' + 5' Equipment Transport
4XPH-24+5 10,150# 102" x 24' + 5' Equipment Transport

& Features

  • Safety Reflective Marker Tape

    Safety Reflective Marker Tape

    Helps to provide maximum visibility and safety.

  • Oak Flooring

    Oak Flooring

    Oak flooring is stylish and durable.

  • Oil Bath Axles

    Oil Bath Axles

    Oil bath axles keep bearings evenly and completely lubricated.

  • LED Lighting Package

    LED Lighting Package

    LED lighting is brighter and lasts longer.

  • Grommet Mount Sealed Lighting

    Grommet Mount Sealed Lighting

    Protected wiring, inside the framing or in protected channels, with access to junctures.

  • Storage Area in Tongue

    Storage Area in Tongue

    Added storage space for convenience.

The 4XPH also comes equipped with:

  • 3 Position Pintle Adjustment
  • 12,000# Drop Leg Jack (Top Wind)
  • 102" Overall Width
  • Low Profile, Pierced-Beam Frame Design
  • Storage Area in Tongue
  • (2) Side Bed Steps
  • (6) 1" D-Rings to Secure Equipment
  • Dexter Brand Axles
  • Oil Bath Hubs
  • Heavy Duty 44,000# Adjustable Suspension
  • Anti-Skid Brake System on Front Axle
  • 5 Dove Tail w/Heavy Duty Double Hinged Spring Assist Ramps
  • Grommet Mount, Sealed L.E.D. Lighting
  • Sealed, Modular Wiring Harness
  • Oak Flooring
  • Spare Tire & Wheel- Standard Equipped
  • Heavy Duty Oil Bath Axles w/12-1/4" x 7-1/2" Air Brakes, Including Automatic Slack Adjusters & Spring Brakes on Both Axles

Optional Equipment

Category Description
BODY Lockable Lid Cover Tool Storage in Tongue
BODY Wood Fill Dovetail & Ramps
BRAKES ABS on 2nd Axle
CARGO CONTROL 1" D-Ring
JACK Dual 2 Speed Landing Gear Jacks (50K)
JACK Dual Single Speed Drop Leg Jacks
JACK Single 2 Speed Drop Leg Jack (25K)
TIRE/WHEEL Vertical Spare Mount

Big Tex Trailers reserves the right to change price, design, material and/or specifications without notice or obligation.
