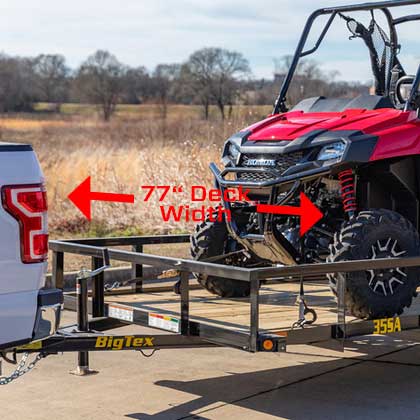

77" Deck Width
Plenty of deck width for a variety of cargo.

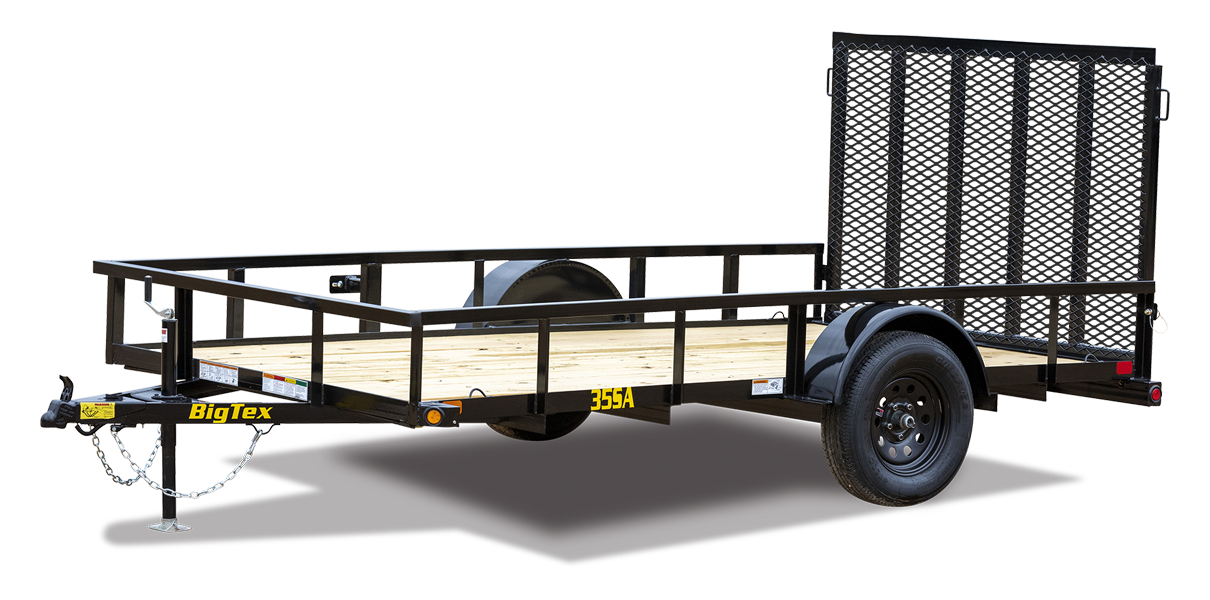

At a generous 77" wide, the 35SA Single Axle Utility Trailer from Big Tex is ideal for home and garden tasks and can even accommodate many side-by-side models. Available "X" configurations of the 35SA push the width to 83" adding deck space, capability and versatility.
Interested in purchasing this trailer?
| AXLE | 3,500# Quick Lubricating Hub Axle w/ Brake Flanges |
|---|---|
| JACK | 2,000# Top Wind, Set-Back Jack |
| TIRE | ST205/75R-15 Load Range C |
| FLOOR | 2" Treated Pine or Douglas Fir* |
| FRAME | 3" x 2" x 3/16" Angle |
| WHEEL | 15" x 5; Black Mod, 5 on 5 Bolt Pattern |
| FINISH | Superior Quality Finish is Applied for a Highly Decorative and Protective Finish |
| LIGHTS | L.E.D. D.O.T. Stop, Tail, Turn & Clearance |
| TONGUE | 3" Channel |
| COUPLER | 2" A-Frame |
| FENDERS | 9" x 32" Rolled Formed w/ Back |
| G.V.W.R. | 2,995# |
|---|---|
| TOP RAIL | 2" x 2" Square Tubing |
| UPRIGHTS | 15" Tall Angle, 2" Angle |
| ELEC. PLUG | 4-Way Flat w/ Loom |
| HITCH TYPE | Bumper Pull |
| SUSPENSION | Multi-Leaf Spring |
| CROSSMEMBERS | 3" x 2" x 3/16" Angle |
| FINISH (Prep) | Steel is Cleaned to Ensure a Professional, Smooth Finish |
| SAFETY CHAINS | 1/4" Grd. 30 w/ Safety Latch Hook (2 ea) |
| G.A.W.R. (Ea. Axle) | 3,500# |
| Model | Weight | Description |
|---|---|---|
| 35SA-10 | 893# | 77" x 10' Single Axle Utility Trailer |
| 35SA-12 | 983# | 77" x 12' Single Axle Utility Trailer |
| 35SA-14 | 1,073# | 77" x 14' Single Axle Utility Trailer |
Plenty of deck width for a variety of cargo.

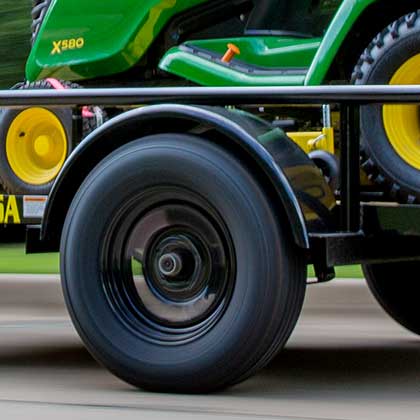

These last longer and offer a smoother ride with better fuel economy.

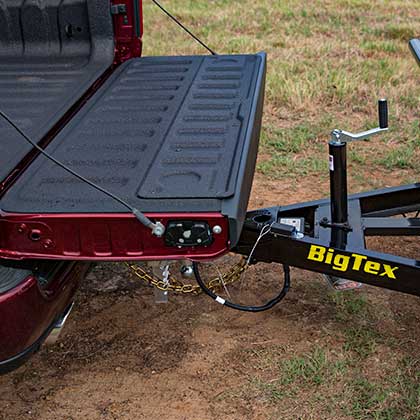

Helps protect your truck and trailer from damage and dings.

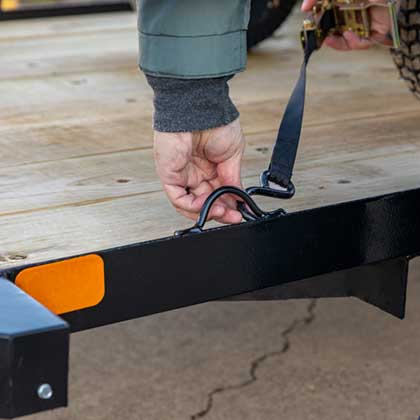

Safely and conveniently secure your cargo.

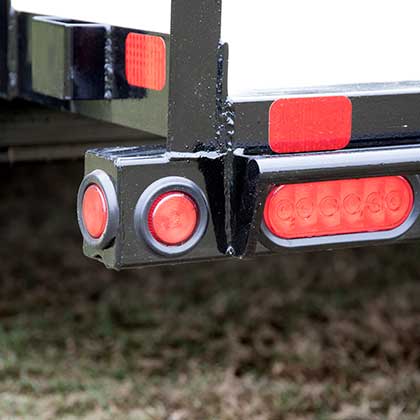

3-4 times brighter and lasts 6 times longer compared to incandescent bulbs.

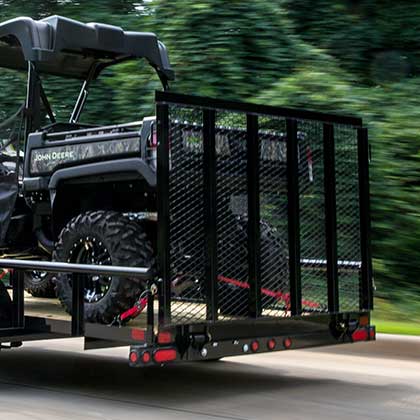

Internal coil-springs make this rampgate feel lighter, helping you lift and lower with ease.
| Category | Description |
|---|---|
| BODY | 2 High Sides (Open) |
| BODY | 3 High Sides (Open) |
| BODY | 4 HIGH SIDES (OPEN) |
| BODY | Blackwood Pro Rubber Infused Floor |
| BODY | Car Hauler Style (No Side Rails) |
| BODY | Enclose Sides w/ Expanded Metal |
| BODY | Enclose Sides w/ Sheet Metal |
| BRAKES | Electric Brakes w/ Complete Brake-Away Kit |
| CARGO CONTROL | Additional Tie Loops |
| CARGO CONTROL | Stake Pockets |
| COUPLER | 2" Forged Coupler |
| JACK | 2,000# Fold-Up Jack |
| RAMPS | 4 Slide-In Ramp Package |
| RAMPS | 4 Tall Bi-Fold Rear Ramgate w/ Coil Spring Assist |
| RAMPS | 4 Tall Rear Rampgate w/ Coil Spring Assist |
| RAMPS | 5 Tall Rear Rampgate W/ Coil Spring Assist |
| TIRE/WHEEL | Spare Tire Mount (Side) |
| TIRE/WHEEL | Spare Tire and Wheel (ST205/75R-15 LR-C) |
Big Tex Trailers reserves the right to change price, design, material and/or specifications without notice or obligation.
