Big Tex Single Axle Vanguard Trailer

30SV

Single Axle Vanguard Trailer

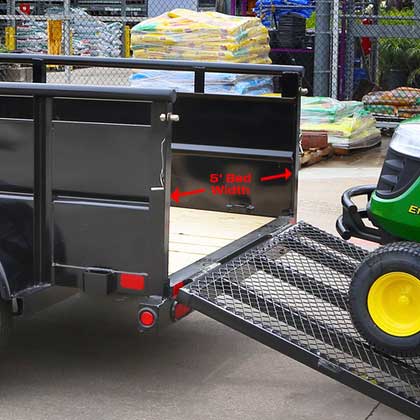

When it’s time to work, it’s time for the 30SV Single Axle Vanguard Trailer. Built-strong to haul your landscaping equipment without hassle from job to job, the 30SV features a pipe-top rail and higher sides to protect cargo and keep tools in place and ready to go. And if you’re looking to take your landscaping operations to the next level, you can expand your hauling capabilities with an optional rear ramp gate—perfect for transporting a variety of vehicles, including golf carts, ATVs, side-by-sides, and more.

30SV

Single Axle Vanguard Trailer

When it’s time to work, it’s time for the 30SV Single Axle Vanguard Trailer. Built-strong to haul your landscaping equipment without hassle from job to job, the 30SV features a pipe-top rail and higher sides to protect cargo and keep tools in place and ready to go. And if you’re looking to take your landscaping operations to the next level, you can expand your hauling capabilities with an optional rear ramp gate—perfect for transporting a variety of vehicles, including golf carts, ATVs, side-by-sides, and more.

30SV 30SV
Big Tex Single Axle Vanguard Trailer

Model Pull Type GVWR GAWR (Ea. Axle) Empty Weight Cargo Capacity Bed Length Bed Width A B C Tongue Length
30SV-12 Bumperpull 2995 lbs 3500 lbs 1070 lbs 1925 lbs 14' 60" 145-1/2” 85” 60-1/2” 36-1/8"
30SV-10 Bumperpull 2995 lbs 3500 lbs 970 lbs 2025 lbs 12' 60" 121-1/2" 73" 48-1/2" 36-1/8"
30SV-08 Bumperpull 2995 lbs 3500 lbs 870 lbs 2125 lbs 10' 60" 97-1/2" 61" 36-1/2" 36-1/8"

Standard Feature Available Options
Axles 3,500# Premium, Cambered Axle with Quick-Lubricating Hubs
Brakes Brake Flanges for Easy Brake Addition Electric Brakes w/ Complete Break-Away Kit
Suspension Multi-Leaf Slipper Spring
Coupler Demco EZ Latch 2" Forged Coupler
Safety Chains 1/4" Grd. 30 w/ Safety Latch Hook (2 ea)
Jack 2,000# Top Wind, Set-Back Jack 2,000# Fold-Up Jack
Frame 3" x 2" x 3/16" Angle
Cross-Members 3” x 2” x 3/16” Angle
Floor Treated Pine or Douglas Fir Blackwood Pro Rubber Infused Lumber Floor (per linear foot)
Fenders 9" x 32" Rolled Formed w/ Back

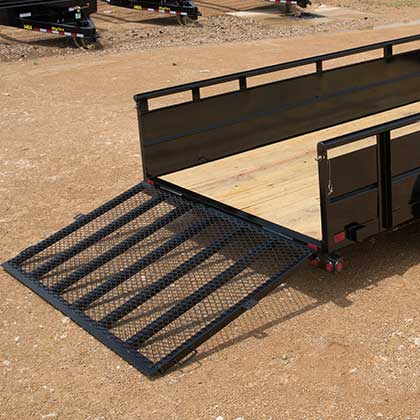

Ramps 4' Tall Rear Ramp Gate w/ Coil Spring Assist 5' Tall Rear Ramp Gate w/ Coil Spring Assist

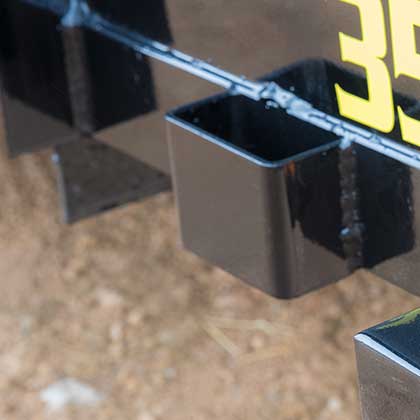

Stake Pockets Additional Stake Pockets (Each)
Trailer Plug 4-Way Flat w/ Loom
Lights L.E.D. D.O.T. Stop, Tail, Turn & Clearance
Wiring Grommet-Mounted Lifetime L.E.D. Lighting

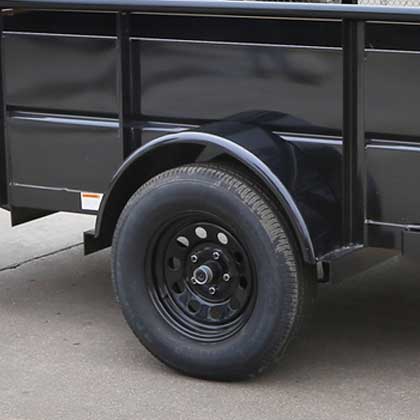

Tires ST205/75 R-15 Load Range C
Bolt Pattern 5 Bolt
Spare Mount Side Spare Tire Mount
Spare Tire Spare Tire (ST205/75R-15 LR-C)
Paint Type Professional Finish w/ Primer Standard
Paint Color Black Red Grey White Desert Tan Jet Blue Slime Green Implement Green Equipment Orange Medium Yellow

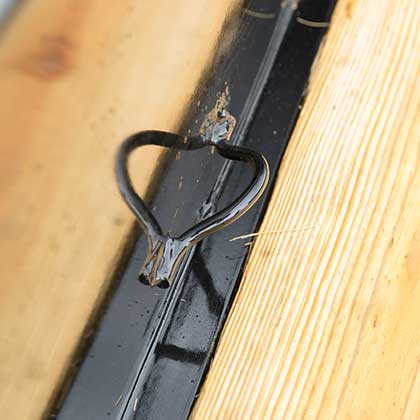

Tie-Downs (4) Tie Down Loops Inside Bed Additional Tie Loops

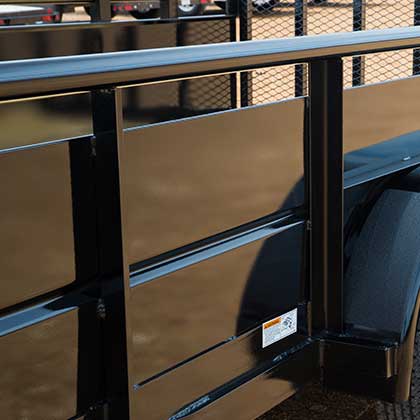

Sides 28-1/2" Tall Sides w/ 24" V-Crimped Steel Panels (16 Ga.)
Storage Bolt-On Landscape Box (24" x 24" x 64-1/2")
Top Rail 2" x 2" Square Tubing
