25PH

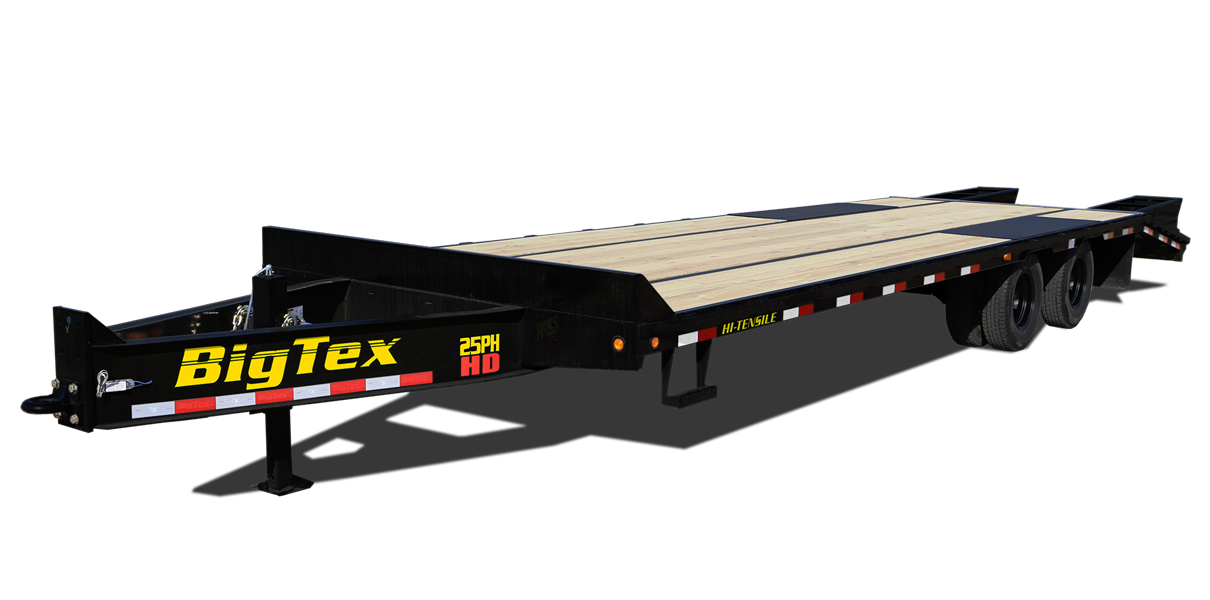

Heavy Duty Tandem Dual Axle Pintle Trailer

The 25PH from Big Tex Trailers is a durable tandem dual wheel pintle hauler. Standard features include two 12K axles, a spare tire and wheel, an LED lighting package, a low-profile bed with a pierced-beam frame and a heavy-duty adjustable suspension.

Interested in purchasing this trailer?

Locate a 25PH

Specs...

360°

AXLE (2) 12,000# Dual Wheel w/ Electric Brakes (Oil Bath)
JACK 12,000# Drop Leg Jack- Top Wind
TIRE ST235/80 R-16 Load Range E Dual
FLOOR 2" Treated Pine or Douglas Fir*
FRAME 12" I-Beam, 19#
WHEEL 16" x 6"; Black Dual 8 Bolt
FINISH Superior Quality Finish is Applied for a Highly Decorative and Protective Finish.
LIGHTS L.E.D. D.O.T. Stop, Tail, Turn & Clearance
TONGUE Integral with Frame (12" I-Beam, 16#)
COUPLER 3" ID Pintle Ring
DOVETAIL 5 Cleated Dovetail w/5 Double Hinged, Spring-Assisted Flip-Over Ramps
G.V.W.R. 25,900#
ELEC. PLUG 7-Way RV
HITCH TYPE Pintle Hitch
SIDE RAILS 8" Channel w/Rub Rail, Stake Pockets, and Chain Spools
SUSPENSION Heavy Duty 30,000# Adjustable
CROSSMEMBERS 3" Channel
FINISH (Prep) Steel is Cleaned to Ensure a Professional Smooth Finish.
SAFETY CHAINS 3/8" Grd. 70 w/Safety Latch Hook (2 each)
G.A.W.R. (Ea. Axle) 12,000#

Models

Model Weight Description
25PH-20+5 5,800# 102" x 20' + 5' HD Tandem Dual Wheel Pintle
25PH-25+5 6,300# 102" x 25' + 5' HD Tandem Dual Wheel Pintle

& Features

  • Nev-R-Adjust Electric Brakes on All Hubs

    Nev-R-Adjust Electric Brakes on All Hubs

    Nev-R-Adjust Brakes ensure safety and automatically adjust to proper clearances during travel.

  • EZ Lube Hubs

    EZ Lube Hubs

    EZ Lube hubs are simple to maintain and completely submersible with no disassembly required.

  • Dexter Brand Axles

    Dexter Brand Axles

    Dexter Axles outperform all others for strength and a smooth ride.

  • LED Lighting Package

    LED Lighting Package

    LED lighting is brighter and lasts longer.

  • Grommet Mount Sealed Lighting

    Grommet Mount Sealed Lighting

    Protected wiring, inside the framing or in protected channels, with access to junctures.

  • Radial Tires

    Radial Tires

    Flexible sidewalls result in reduced fuel consumption and produce a softer ride.

The 25PH also comes equipped with:

  • 3" ID Pintle Ring
  • 12,000# Drop Leg Jack- Top Wind
  • 102" Overall Width
  • Low Profile Bed, Pierced- Beam Frame
  • (2) Side Bed Steps
  • 3/8" Heavy Duty Rub Rail
  • Stake Pockets Along Sides, 24" On Center
  • 1-1/4" Pipe Chain Spools Between Tie Down Pockets
  • Dexter Brand Axles
  • Oil Bath Hubs
  • Forward Self Adjusting Brakes
  • Heavy Duty 30,000# Adjustable Suspension by Dexter Axle
  • Grommet Mount Sealed Lighting
  • L.E.D. Lighting Package
  • Modular Sealed Wiring Harness
  • Spare Tire Mount
  • 5 Dovetail w/ 5 Double Hinged Spring Assist Flip-Over Ramps
  • Flip-Over Ramps
  • Complete Break-A-Way System w/Charger
  • Zip Breakaway Cable
  • Radial Tires
  • Mudflaps
  • Spare Tire & Wheel- Standard Equipped

Optional Equipment

Category Description
BODY Blackwood Rubber Infused Floor
BODY Lockable Lid Over Tool Storage In Tongue
BRAKES Air Brake Assembly w/ABS on Front, Spring Brake Chambers & Auto Slacks
BRAKES Electric Over Hydraulic Brakes (Disc)
BRAKES Electric Over Hydraulic Brakes (Drum)
CARGO CONTROL 4" Sliding Winch
CARGO CONTROL 4" Weld-On Winch
CARGO CONTROL 4" x 30 Strap
CARGO CONTROL B 40 5/8" D-Ring
CARGO CONTROL Low Profile Tool Box 12" x 18" x 36" (Side Mount)
CARGO CONTROL Sliding Winch Track (Per 6 Section)
JACK Dual 2-Speed Landing Gear
JACK Dual Electric Over Hydraulic Jacks by Stillwell
JACK Dual Single-Speed Drop-Leg Jacks
RAMPS (2) 5 MEGA Ramps
RAMPS 8 Rear Slide-In Ramps (Straight Deck Only)
RAMPS No Dovetail Option (Deletes Dovetail & Ramps)
TIRE/WHEEL Tire Upgrade (ST215/75 R-17.5 LR-H Dual) Includes Spare
TIRE/WHEEL Tire Upgrade (ST235/85 R-16 LR-G Dual) Includes Spare


Big Tex Trailers reserves the right to change price, design, material and/or specifications without notice or obligation.
