16GN

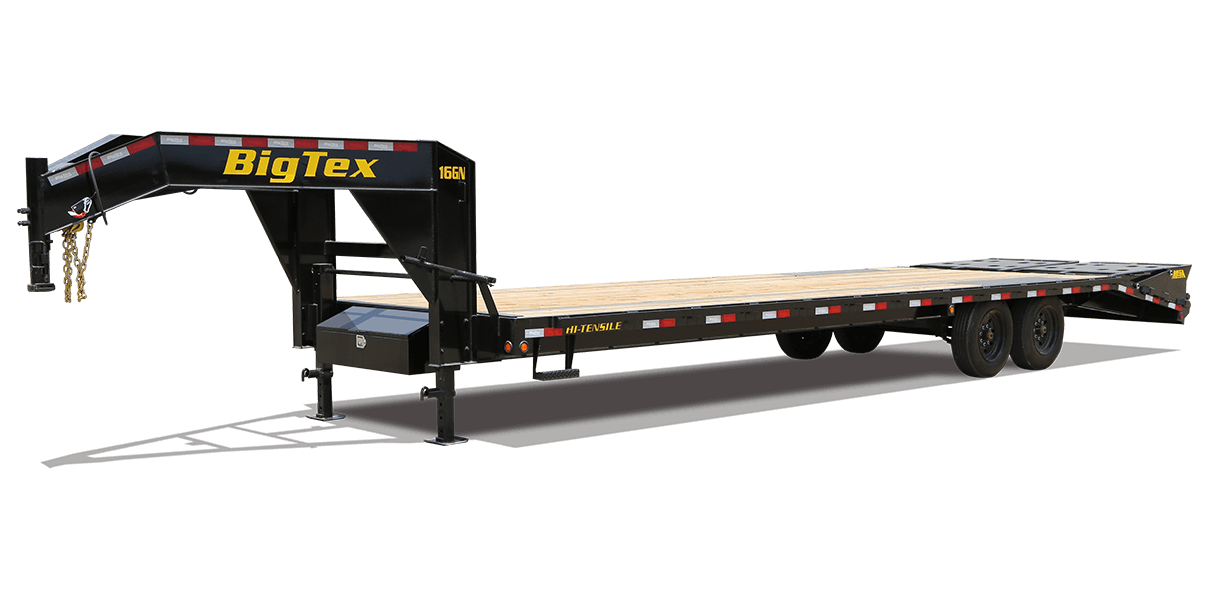

Single Wheel Tandem Axle Gooseneck Trailer

The 16GN from Big Tex Trailers is our super-duty, single-wheel gooseneck, delivering more cargo capacity without the need for dual-wheel axles. This model combines the Big Tex features you know and love, like a pierced beam, low-profile, high tensile steel frame, dual 12,000# drop-leg jacks, an integrated toolbox and premium axles. Plus its also available with versatile Mega ramps - providing a professional-grade trailer that packs the punch you need for hard work at an exceptional value.

Interested in purchasing this trailer?

Locate a 16GN

Specs...

16GN
AXLE (2) 8,000# Oil Bath w/Electric Brakes
JACK Dual 12,000# Drop Leg Side Wind (Bolted On)
NECK 12" I-Beam, 14#
TIRE ST215/75 R-17.5 Load Range H
FLOOR 2" Treated Pine or Douglas Fir*
FRAME 12" I-Beam, 14# (16# on 28 Trailer and Longer)
WHEEL 17.5" x 6.75"; Black Mod 8 Bolt
FINISH Superior Quality Finish is Applied for a Highly Decorative and Protective Finish.
LIGHTS L.E.D. D.O.T. Stop, Tail, Turn and Clearance
COUPLER 2-5/16" Ball Adjustable Pipe
DOVETAIL 5 Cleated Dovetail w/5 Double Hinged, Spring-Assisted Flip-Over Ramps
G.V.W.R. 17,500#
ELEC. PLUG 7-Way RV
HITCH TYPE Gooseneck
SIDE RAILS 5" Channel w/Rub Rail, Stake Pockets, and Chain Spools
SUSPENSION Multi-Leaf Slipper Spring w/Equalizer
CROSSMEMBERS 3" Channel
FINISH (Prep) Steel is Cleaned to Ensure a Professional Smooth Finish.
SAFETY CHAINS 3/8" Grd. 70 w/Safety Latch Hook (2 each)
G.A.W.R. (Ea. Axle) 8,000#

Models

Model Weight Description
16GN-20+5 4,940# 102" x 20'+5' Super Duty Single Wheel Tandem Axle GN
16GN-22+5 5,140# 102" x 22'+5' Super Duty Single Wheel Tandem Axle GN
16GN-25+5 5,440# 102" x 25'+5' Super Duty Single Wheel Tandem Axle GN
16GN-28+5 5,900# 102" x 28'+5' Super Duty Single Wheel Tandem Axle GN
16GN-30+5 6,110# 102" x 30'+5' Super Duty Single Wheel Tandem Axle GN
16GN-35+5 6,330# 102" x 35'+5' Super Duty Single Wheel Tandem Axle GN

& Features

  • Cambered Axles

    Cambered Axles

    Oil bath axles keep bearings evenly and completely lubricated.

  • Protected Wiring

    Protected Wiring

    Protected wiring, inside the framing or in protected channels, with access to junctures.

  • Dexter Brand Axles

    Dexter Brand Axles

    Dexter Axles outperform all others for strength and a smooth ride.

  • LED Lighting Package

    LED Lighting Package

    LED lighting is brighter and lasts longer.

  • Nev-R-Adjust Electric Brakes on All Hubs

    Nev-R-Adjust Electric Brakes on All Hubs

    Nev-R-Adjust Brakes ensure safety and automatically adjust to proper clearances during travel.

  • Radial Tires

    Radial Tires

    Flexible sidewalls result in reduced fuel consumption and produce a softer ride.

The 16GN also comes equipped with:

  • 2-5/16" Ball Adjustable Pipe Coupler
  • Dual 12,000# Drop Leg Jacks (Bolted on) w/Greasable Handle
  • 102" Overall Width
  • Low Profile Bed, Pierced- Beam Frame Design
  • Lockable Toolbox Between GN Uprights
  • (2) Side Bed Steps and Handles
  • 3/8" Heavy Duty Rub Rail
  • Stake Pockets Along Sides, 24" On Center
  • 1-1/4" Pipe Chain Spools Between Stake Pockets
  • Quick Lubricating Hubs
  • Premium 8,000# Oil Bath Axles
  • Forward Self Adjusting Electric Brakes on All Hubs
  • Cambered Axles
  • Grommet Mount Sealed Lighting
  • L.E.D. Lighting Package
  • Sealed, Modular Wiring Harness
  • 5 Dovetail w/ 5 Double Hinged Spring Assist Flip-Over Ramps
  • Complete Break-A-Way System w/Charger
  • Spare Tire Mount (Top of Neck)
  • Radial Tires
  • Zip Breakaway Cable
  • XL Features 28 and Longer (Torque Tube to Prevent Frame Twist and 16# I-Beam Frame Upgrade)

Optional Equipment

Category Description
BODY Blackwood Pro Rubber Infused Floor
BODY Removable Deck on the Neck- Bolt On (8 W x 6 L)
BRAKES Electric Over Hydraulic Brakes (Drum)
CARGO CONTROL 4" Sliding Winch
CARGO CONTROL 4" Weld-On Winch
CARGO CONTROL 4" x 30 Strap
CARGO CONTROL 5/8" D-Ring
CARGO CONTROL Low Profile Tool Box 15" x 15" x 36" (Side Mount)
CARGO CONTROL Sliding Winch Track
JACKS Dual 2-Speed Landing Gear
JACKS Dual Electric Over Hydraulic Jacks by Stillwell
RAMPS (2) 5 MEGA Ramps
RAMPS 8 Rear Slide-In Ramps (Straight Deck Only)
RAMPS No Dovetail Option (Deletes Dovetail and Ramps)


Big Tex Trailers reserves the right to change price, design, material and/or specifications without notice or obligation.
