Trailers / Utility & Landscape Trailers / Landscape Trailers

70LR 70LR

70LR

Tandem Axle Landscape Trailer

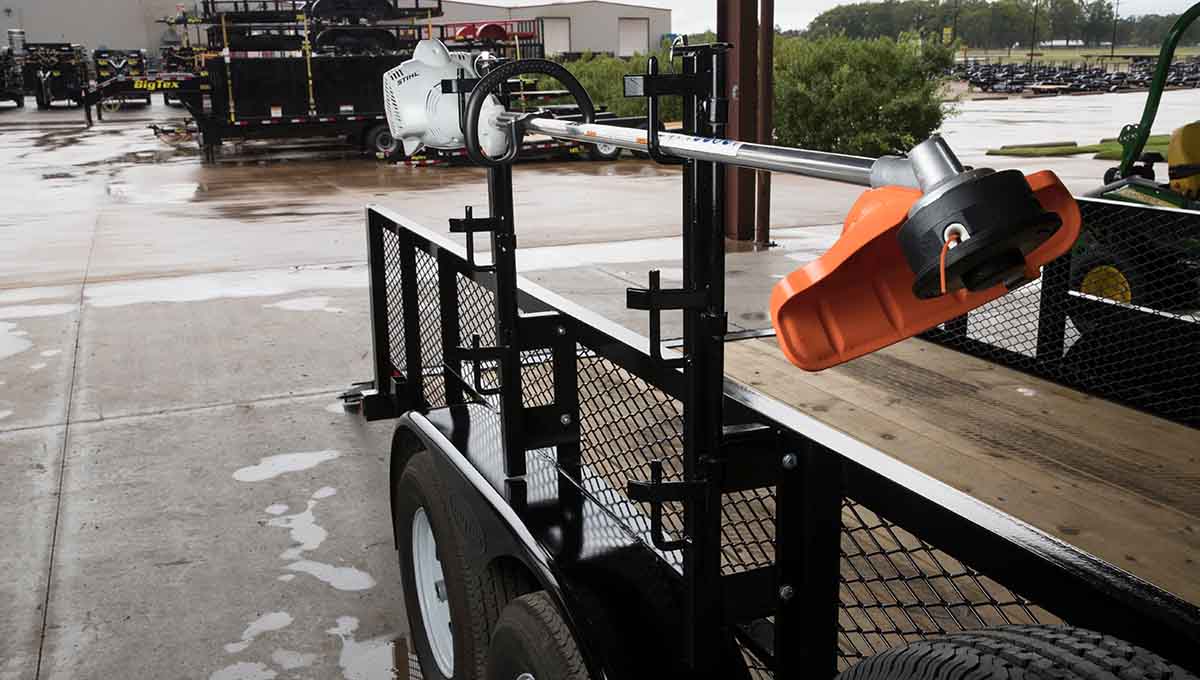

Is your landscaping business transporting heavy-duty equipment and large loads? Versatile, rugged, and built to haul heavy-duty loads up to 4,880 lbs, the 70LR Tandem Axle Landscape Trailer is the answer. Weed trimmer racks, tool holders, and a lockable landscape box securely hold all your cargo and gear and allow you to stay on the job to finish the task ahead. Plus, it comes standard with two-foot expanded metal sides and a spring assisted rear ramp gate for spacious and convenient loading, unloading, and hauling of lawnmowers or other pieces of landscaping equipment. With the 70LR, you’ll always be ready for what’s next.

70LR

Tandem Axle Landscape Trailer

Is your landscaping business transporting heavy-duty equipment and large loads? Versatile, rugged, and built to haul heavy-duty loads up to 4,880 lbs, the 70LR Tandem Axle Landscape Trailer is the answer. Weed trimmer racks, tool holders, and a lockable landscape box securely hold all your cargo and gear and allow you to stay on the job to finish the task ahead. Plus, it comes standard with two-foot expanded metal sides and a spring assisted rear ramp gate for spacious and convenient loading, unloading, and hauling of lawnmowers or other pieces of landscaping equipment. With the 70LR, you’ll always be ready for what’s next.

70LR 70LR

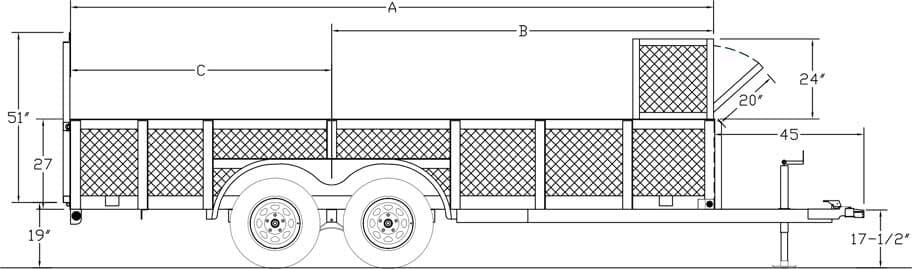

Model Pull Type GVWR Empty Weight Cargo Capacity Bed Length Bed Width A B C Tongue Length
70LR-16 Bumperpull 7000 lbs 2370 lbs 4630 lbs 16' 83" 193-1/2" 115" 78-1/2" 45"
70LR-14 Bumperpull 7000 lbs 2120 lbs 4790 lbs 14' 83" 169-1/2" 103" 66-1/2" 45"

Standard Feature Available Options
Axles 2 - 3,500# Premium, Cambered Axles with Quick-Lubricating Hubs
Brakes Forward Self Adjusting Brakes on Rear Axle Electric Brakes on 2nd Axle
Suspension Multi-Leaf Spring
Coupler 2-5/16” Demco EZ Latch 2-5/16” Forged Coupler 2-5/16” Stamped Coupler
Safety Chains 1/4" Grd. 30 w/ Safety Latch Hook (2 ea)
Jack 2,000# Top Wind, Set-Back Jack (Bolted On) 8,000# Drop-Leg Jack 2,000# Fold-Up Jack
Frame 4" x 3" x 1/4" Angle
Cross-Members 3” x 2” x 3/16” Angle
Floor Treated Pine or Douglas Fir Blackwood Pro Rubber Infused Lumber Floor (per linear foot) 1/8” Diamond Plate Steel Floor (Per Square Foot)
Fenders 9" x 72" 16 Ga. Rolled Formed

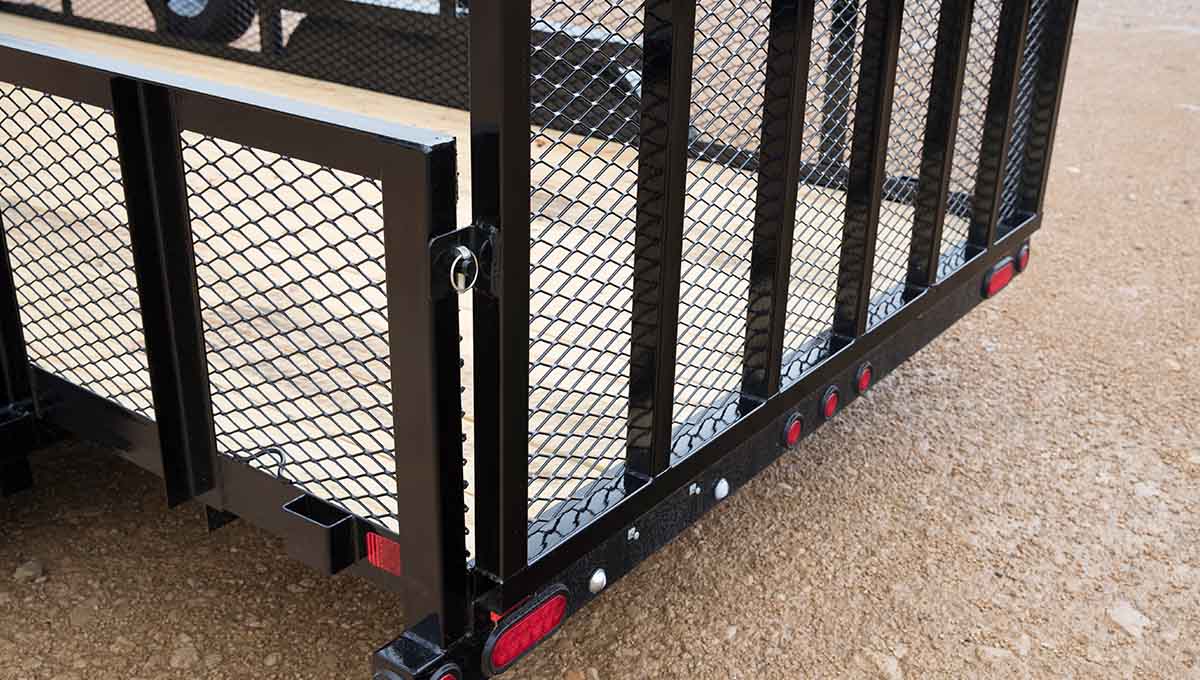

Ramps 4' Tall Rear Ramp Gate w/ Coil Spring Assist 4' Heavy Duty Integrated Ramp Gate w/ Gas Shock Assist 5' Tall Rear Ramp Gate w/ Coil Spring Assist

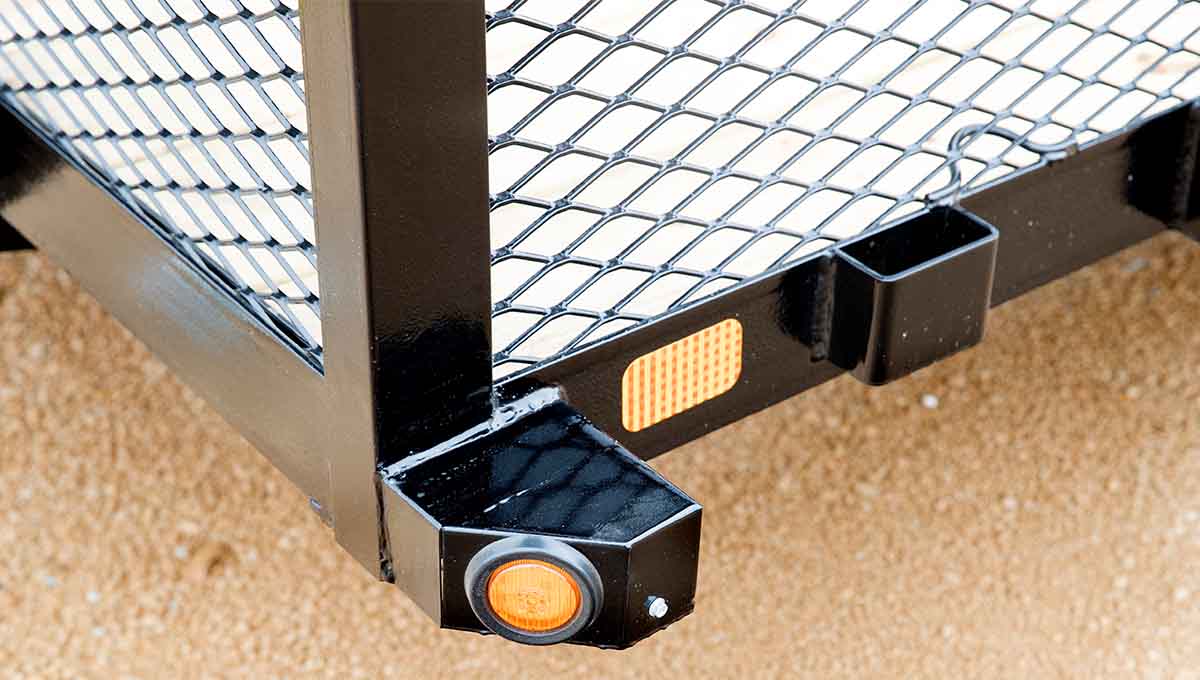

Stake Pockets (4) Stake Pockets on Outside Frame Additional Stake Pockets (Each)
Trailer Plug 7-Way RV
Lights L.E.D. D.O.T. Stop, Tail, Turn & Clearance
Tires ST205/75 R-15 Load Range C Tire Upgrade (ST225/75R-15 LR-D)
Bolt Pattern 5 Bolt
Spare Mount Side Spare Tire Mount
Spare Tire Spare Tire (ST205/75R-15 LR-C) Spare Tire (ST225/75R-15 LR-D)
Paint Type Professional Finish w/ Primer Standard
Paint Color Black Red Grey White Desert Tan Jet Blue Slime Green Implement Green Equipment Orange Medium Yellow
Tie-Downs (4) Tie Down Loops Inside Bed 5/8" D-Ring Additional Tie Loops
Sides 24" Tall with Expanded Metal 4’ Tall Expanded Metal Sides

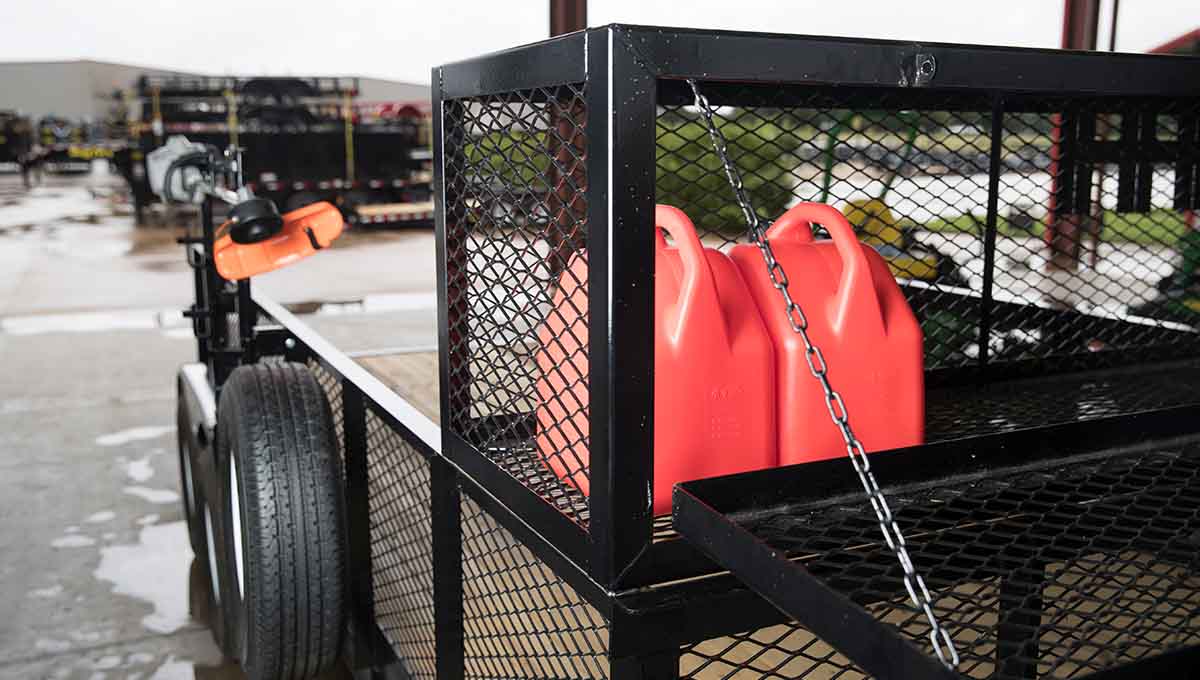

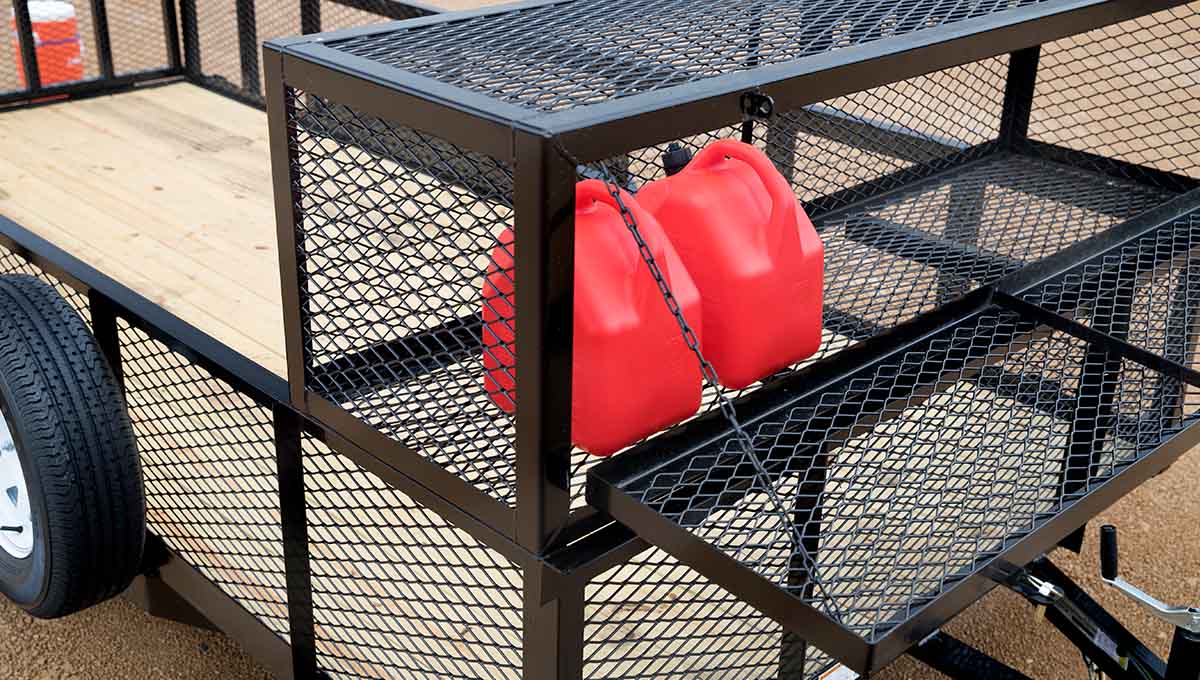

Storage Bolt-On Landscape Box (24" x 24" x 87")
Top Rail 2" x 2" Square Tubing
https://www.bigtextrailers.com/wp-content/uploads/2023/07/70lr_specdiagram.jpg
