Economy Tandem Axle Pipe Top Utility Trailer
With the 60ES Tandem Axle Utility Trailer, cost-effective versatility is the name of the game. That means you’re getting a dependable and reliable utility trailer that’s designed to transport small equipment and recreational vehicles, all at an affordable price point. And with a 6,000 lbs G.V.W.R. and reinforced structure for enhanced strength, it has the muscle to make sure your small tractors, side-by-sides, and favorite toys get to their destination—safely and securely.
2,000 lbs Set Back Jack
Designed to lower the tailgate of your tow vehicle without the top of the jack damaging it.
Forward, self-adjusting brakes make brake maintenance a breeze. The system automatically adjusts the brake shoes as they wear down, eliminating the need for manual adjustments.

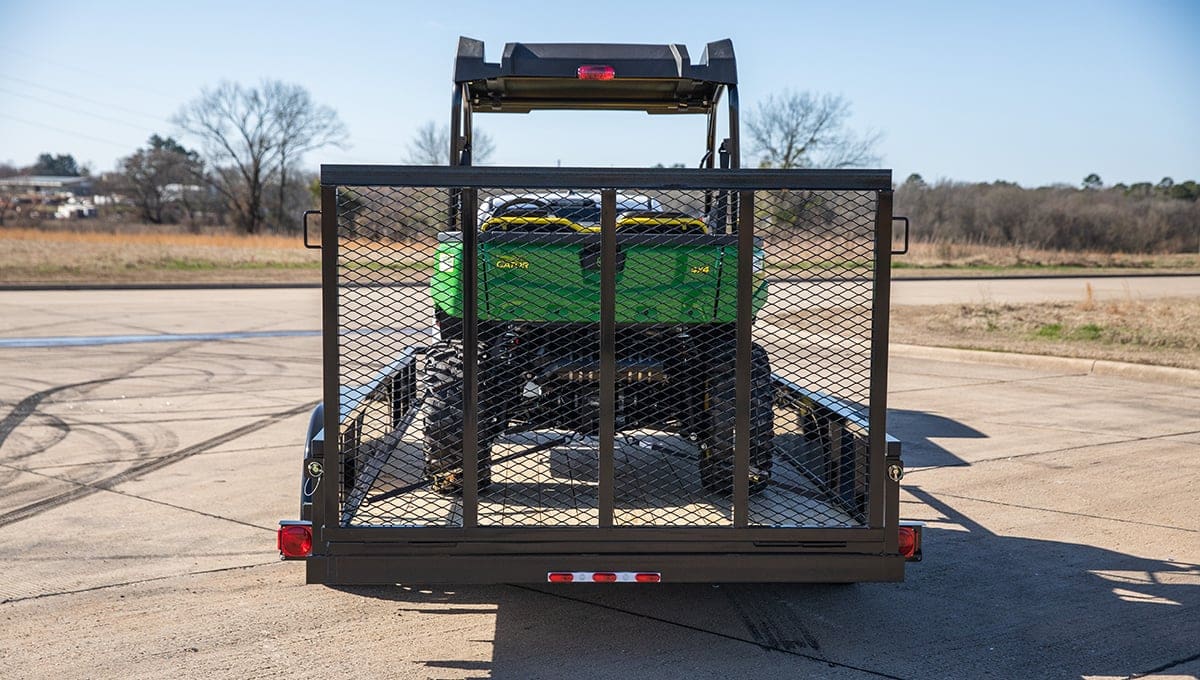

Optional Rear Ramp Gate
Expand your hauling capabilities with an optional 4’ tall rear ramp gate—ideal for transporting a variety of vehicles, including golf carts, ATVs, side-by-sides, and more.
Square Tubing Top Rail
Offering superior resilience compared to typical angle top rails, this trailer features square tubing for increased strength and structure.
0 of 0
|Model||Pull Type||GVWR||Empty Weight||Cargo Capacity||Bed Length||Bed Width||A||B||C||Tongue Length|
|60ES-16||Bumperpull||6000 lbs||1525 lbs||4475 lbs||16'||77"||193-1/2"||115"||78-1/2"||37-1/2"|
|60ES-14||Bumperpull||6000 lbs||1480 lbs||4520 lbs||14'||77"||145-1/2"||103"||72-1/2"||37-1/2"|
|60ES-12||Bumperpull||6000 lbs||1430 lbs||4570 lbs||12'||77"||121-1/2"||85"||60-1/2"||37-1/2"|
|Standard Feature||Available Options|
|Axles||2 - 3,500# Premium, Cambered Axles with Quick-Lubricating Hubs|
|Brakes||Electric Brake on Front Axle||Electric Brakes on 2nd Axle|
|Suspension||Multi-Leaf Spring w/ Equalizer|
|Safety Chains||1/4" Grd. 30 w/ Safety Latch Hook (2 ea)|
|Jack||2,000# Top Wind, Removable Sand Foot|
|Frame||3" x 2" x 3/16" Angle|
|Cross-Members||3” x 2” x 3/16” Angle|
|Floor||Treated Pine Floor|
|Fenders||9" x 72" Rolled Formed w/ Back|
|Ramps||4' Tall Rear Ramp Gate w/ Coil Spring Assist|
|Trailer Plug||7-Way RV|
|Lights||L.E.D. D.O.T. Stop, Tail, Turn & Clearance|
|Wiring||Grommet-Mounted Lifetime L.E.D. Lighting|
|Tires||ST205/75 R-15 Load Range C|
|Bolt Pattern||5 Bolt|
|Spare Mount||Side Spare Tire Mount|
|Spare Tire||Spare Tire (ST205/75R-15 LR-C)|
|Paint Type||Professional Finish w/ Primer Standard|
|Paint Color||Black||Red Grey White Desert Tan Jet Blue Slime Green Implement Green Equipment Orange Medium Yellow|
|Tie-Downs||(4) Tie Down Loops Inside Bed|
|Sides||15" Tall Open sides with 2”x2" Angle uprights and 2" x 2" Square Tubing Top Rail|
