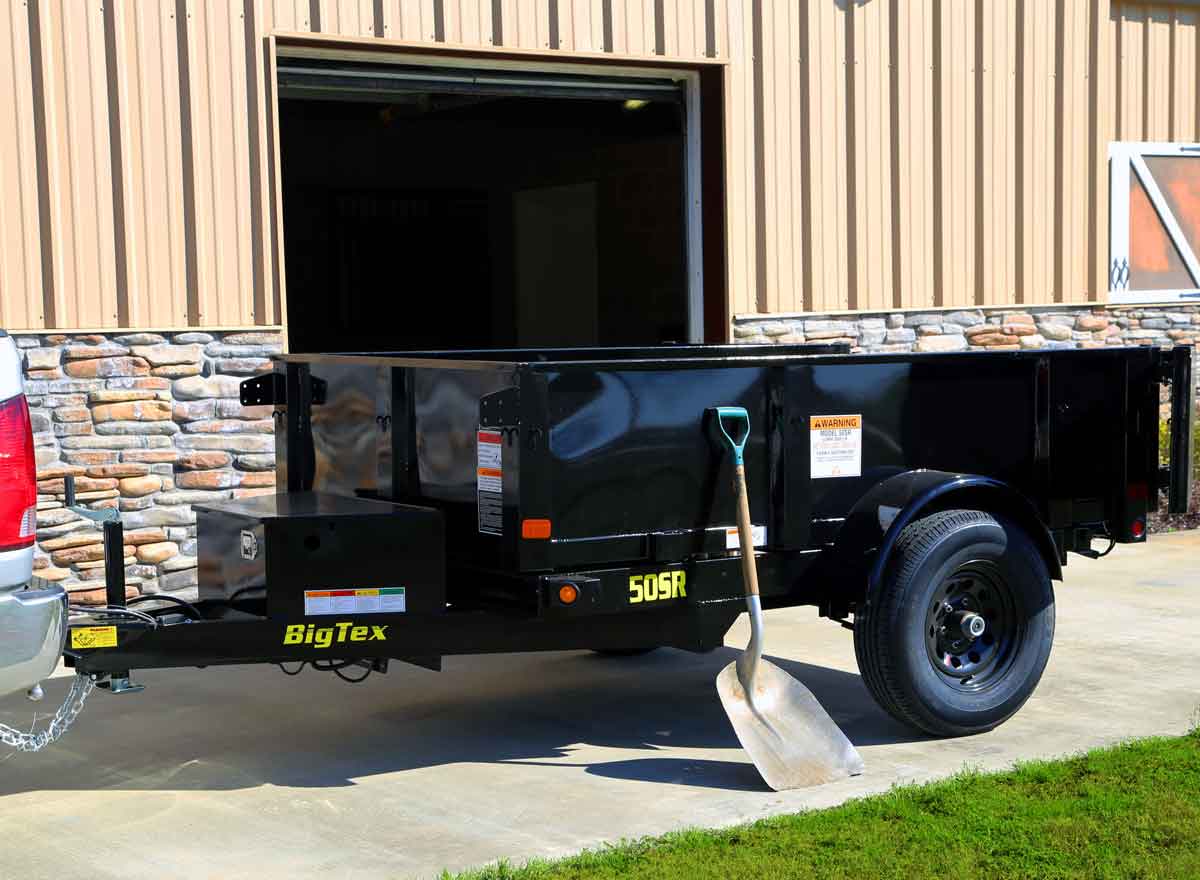

50SR
Single Axle Single Ram Dump
Don’t underestimate the small yet mighty 50SR Single Axle Single Ram Dump Trailer, a light-duty trailer built to haul mulch, dirt, and gravel for homeowners, farmers, and small-scale commercial purposes. An entry-level dump trailer offering ease-of-use and accessibility, the 50SR features a compact size that’s designed to get in and around tight spaces to effectively transport and dump lighter loads. And with premium brand axles and forward self-adjusting electric brakes, it’s packed with the same conveniences that bigger trailers have. In other words, never judge a trailer by its size.

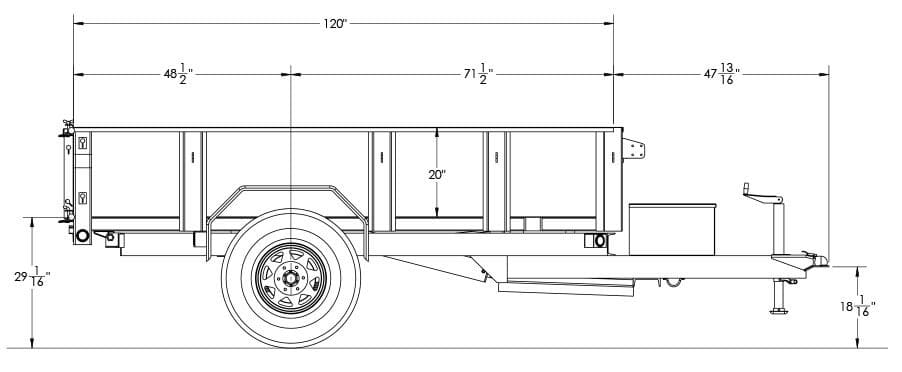

Model | Pull Type | GVWR | Empty Weight | Cargo Capacity | Bed Length | Bed Width | A | B | C | Tongue Length |
---|---|---|---|---|---|---|---|---|---|---|
50SR-08-5WDD | Bumperpull | 5000 lbs | 1680 lbs | 2.5 Cu Yards lbs | 12' | 60" | 120 | 71-1/2" | 48-1/2" | 47-5/8" |
Standard Feature | Available Options | |
---|---|---|
Axles | 1 - 5,200# Premium, Cambered Axles with Quick-Lubricating Hubs | |
Brakes | Forward Self-Adjusting Electric Brakes | |
Suspension | Multi-Leaf Slipper Spring w/ Equalizer | |
Tongue | 5" Channel | |
Coupler | 2-5/16” Stamped A-Frame | |
Safety Chains | 1/4” Grd. 70 w/Safety Latch Hook (2 each) | |
Jack | 2,000# Top Wind | |
Frame | 5" Channel | |
Cross-Members | 2" Channel, 17" Centers | |
Floor | 16 Gauge Smooth Steel | |
Fenders | 9” x 36” 16 Ga. Roll Formed | |
Stake Pockets | Stake Pockets Along Both Sides (Quantity Varies by Length) | |
Trailer Plug | 7-Way RV | |
Lights | Recessed, Grommet-Mounted L.E.D. Lighting | |
Wiring | Sealed, Modular Cold-Weather Wiring Harness | |
Tires | ST225/75 R-15 Load Range D Radial Tires | |
Bolt Pattern | 6-Lug | |
Spare Tire | Not Included | Spare Tire Upgrade (ST225/75R-15 LR-D) |
Paint Type | Professional Finish w/ Primer Standard | |
Paint Color | Black | Red Grey White Desert Tan Jet Blue Slime Green Implement Green Equipment Orange Medium Yellow |
Tie-Downs | Along Sides and Rear for Cargo Control | |
Break-Away Kit | Complete System with Breakaway Cable | |
Battery | 12V Deep Cycle | |
Charger | 5A 110V on Board Battery Charger | |
Power | Power Up/Power Down Movement | |
Ram | Self-Contained Single Cylinder Lift | |
Sides | 20" Tall Sides (16-Gauge) | |
Storage | Lockable Pump and Battery Box mounted in Front of Bed | |
Tarp | Not Included | Crank Style Roll Tarp |
Top Rail | 2" x 2" Square Tubing |
