Single Axle ATV Trailer
Specifically designed and built for homeowners and outdoor enthusiasts hauling ATVs and larger side-by-sides, the rugged and dependable 35SA-RSX Single Axle ATV Trailer is equipped to handle the job. That’s why it’s outfitted with a heavy-duty 4" frame, square rail, ramp sides, and, most importantly, a wider 83’’ deck. All that extra space makes it easier to load and unload side-by-sides and landscaping equipment—meaning you’ll spend less time trying to figure out how to haul your toys and more time having fun with them.

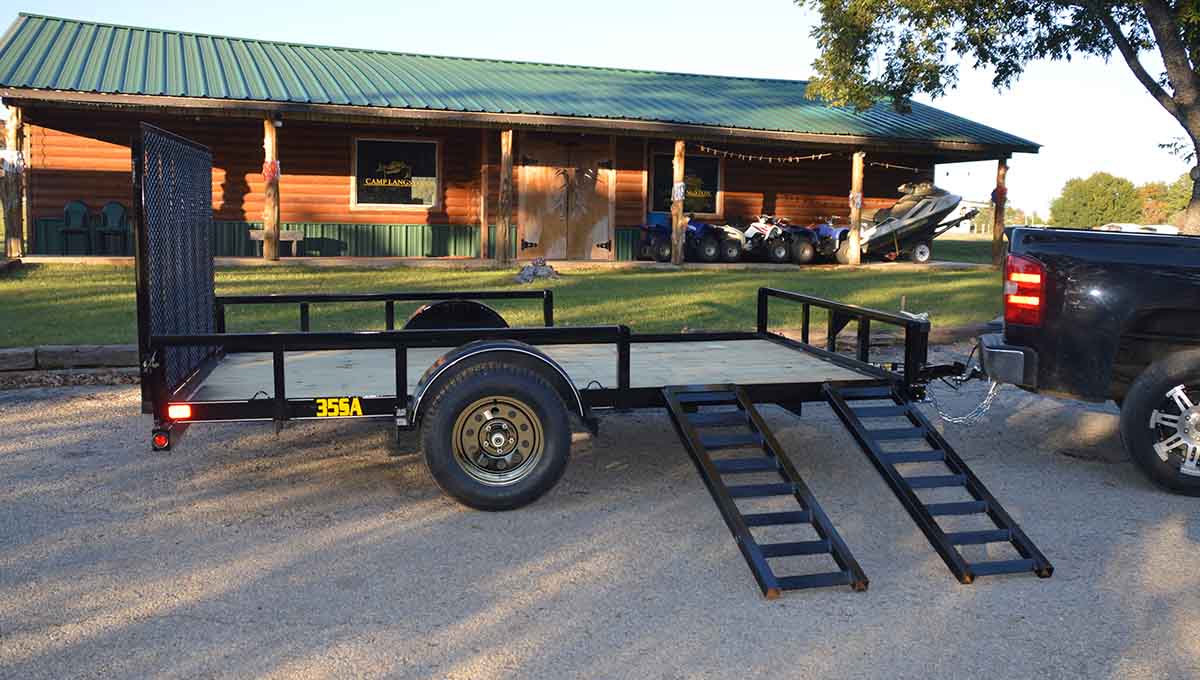

Optional Rear Ramp Gate
Expand your hauling capabilities with an optional 4’ tall rear ramp gate—ideal for transporting a variety of vehicles, including golf carts, ATVs, side-by-sides, and more.
Square Tubing Top Rail
Offering superior resilience compared to typical angle top rails, this trailer features square tubing for increased strength and structure.
Quick Lubricating Axle with Brake Flanges
Steel-belted radial tires and stylish black wheels combine together with premium, industry-leading axles that offer a smooth ride that’s stylish, reliable, and easier to maintain.

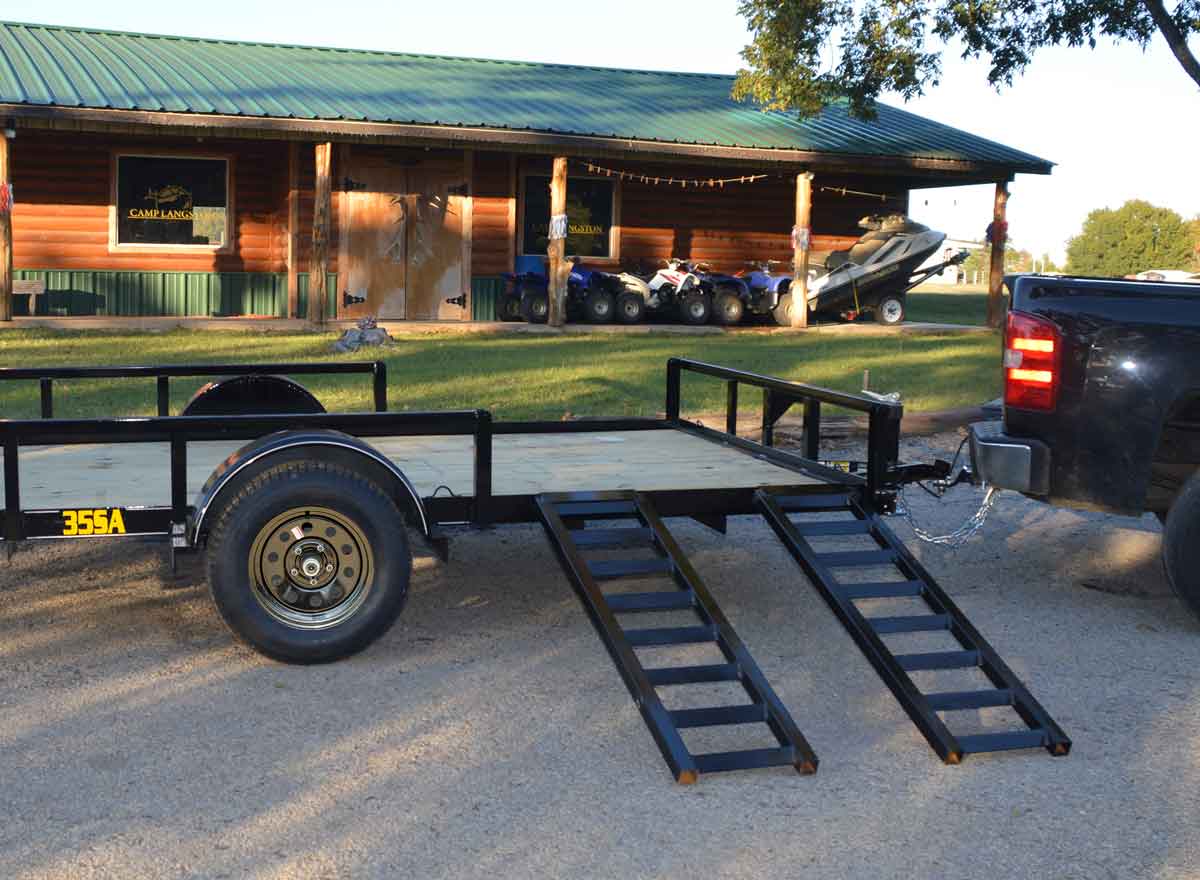

5’ Square Tubing ATV Ramp Sides
Removable sides double as versatile ramps that can be used on either side or the rear.
0 of 0

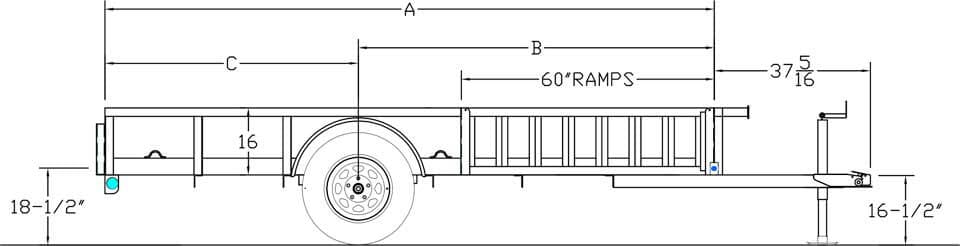

|Model||Pull Type||GVWR||Empty Weight||Cargo Capacity||Bed Length||Bed Width||A||B||C||Tongue Length|
|35SA-14RSX||Bumperpull||2995 lbs||1220 lbs||1775 lbs||14'||83"||169-1/2”||97”||72-1/2”||37-1/4"|
|35SA-12RSX||Bumperpull||2995 lbs||1140 lbs||1855 lbs||12'||83"||145-1/2”||85”||60-1/2”||37-1/4"|
|Standard Feature||Available Options|
|Axles||3,500# Premium, Cambered Axle with Quick-Lubricating Hubs|
|Brakes||Brake Flanges for Easy Brake Addition||Electric Brakes w/ Complete Break-Away Kit|
|Suspension||Multi-Leaf Slipper Spring|
|Coupler||2" A-Frame||2" Forged Coupler|
|Safety Chains||1/4" Grd. 30 w/ Safety Latch Hook (2 ea)|
|Jack||2,000# Top Wind, Set-Back Jack with Removable Sand Foot||2,000# Fold-Up Jack|
|Frame||4" x 3" x 1/4" Angle|
|Cross-Members||3” x 2” x 3/16” Angle|
|Floor||2" Treated Pine or Douglas Fir*||Blackwood Pro Rubber Infused Lumber Floor (per linear foot)|
|Fenders||9" x 32" Rolled Formed w/ Back|
|Ramps||(2) 5' Square tubing ATV Ramp Sides||4' Tall Bi-Fold Rear Ramp Gate w/ Coil Spring Assist 4' Tall Rear Ramp Gate w/ Coil Spring Assist 5' Tall Rear Ramp Gate w/ Coil Spring Assist|
|Stake Pockets||Additional Stake Pockets (Each)|
|Trailer Plug||4-Way Flat w/ Loom|
|Lights||L.E.D. D.O.T. Stop, Tail, Turn & Clearance|
|Wiring||Grommet-Mounted Lifetime L.E.D. Lighting|
|Tires||ST205/75 R-15 Load Range C|
|Bolt Pattern||5 Bolt|
|Spare Mount||Front Spare Tire Mount|
|Spare Tire||Spare Tire (ST205/75R-15 LR-C)|
|Paint Type||Professional Finish w/ Primer Standard|
|Paint Color||Black||Red Grey White Desert Tan Jet Blue Slime Green Implement Green Equipment Orange Medium Yellow|
|Tie-Downs||(6) Tie Down Loops Inside Bed||Additional Tie Loops|
|Sides||16" Tall Open sides with 2” Angle uprights and 2" x 2" Square Tubing Top Rail|
