Economy Single Axle Utility Trailer

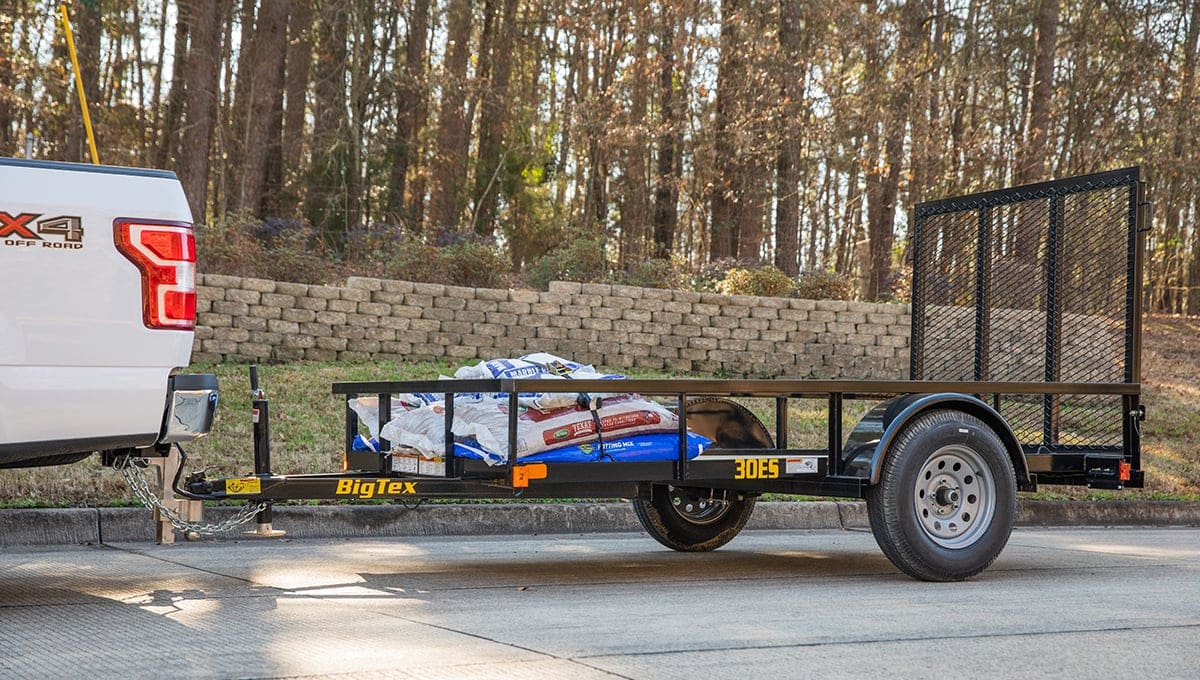

Deal with a lot of different types of tasks around the home? Then the 30ES Economy Single Axle Utility Trailer is for you. An affordable single axle trailer that’s all about versatility, the 30ES features a heavy-duty frame with a square tubing top rail for long-lasting durability. Plus, you can choose from treated pine or fir floors, so you get exactly what you need. Perfect for hauling ATVs, lawn equipment, and other light loads, it’s a cost-effective, jack-of-all-trades trailer that gets the job done.

30ES 30ES

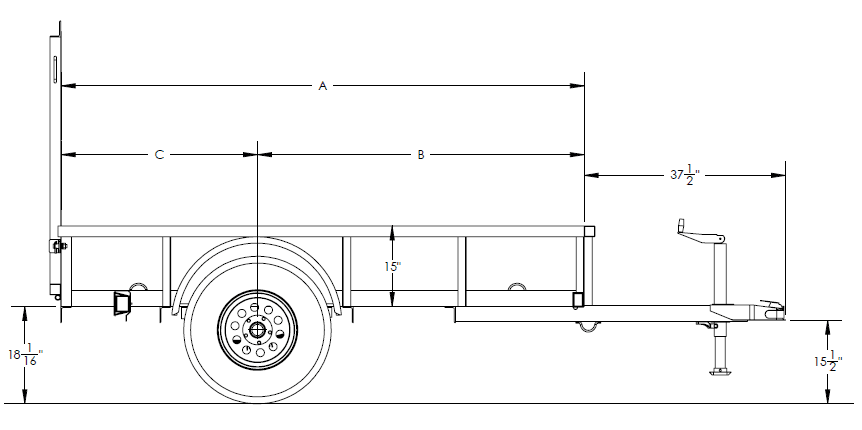

Model Pull Type GVWR Empty Weight Cargo Capacity Bed Length Bed Width A B C Tongue Length
30ES-10 Bumperpull 2995 lbs 723 lbs 2272 lbs 10' 60" 121-1/2” 73” 48-1/2” 37-1/2"
30ES-08 Bumperpull 2995 lbs 663 lbs 2332 lbs 8' 60" 97-1/2” 61” 36-1/2” 37-1/2"

Standard Feature Available Options

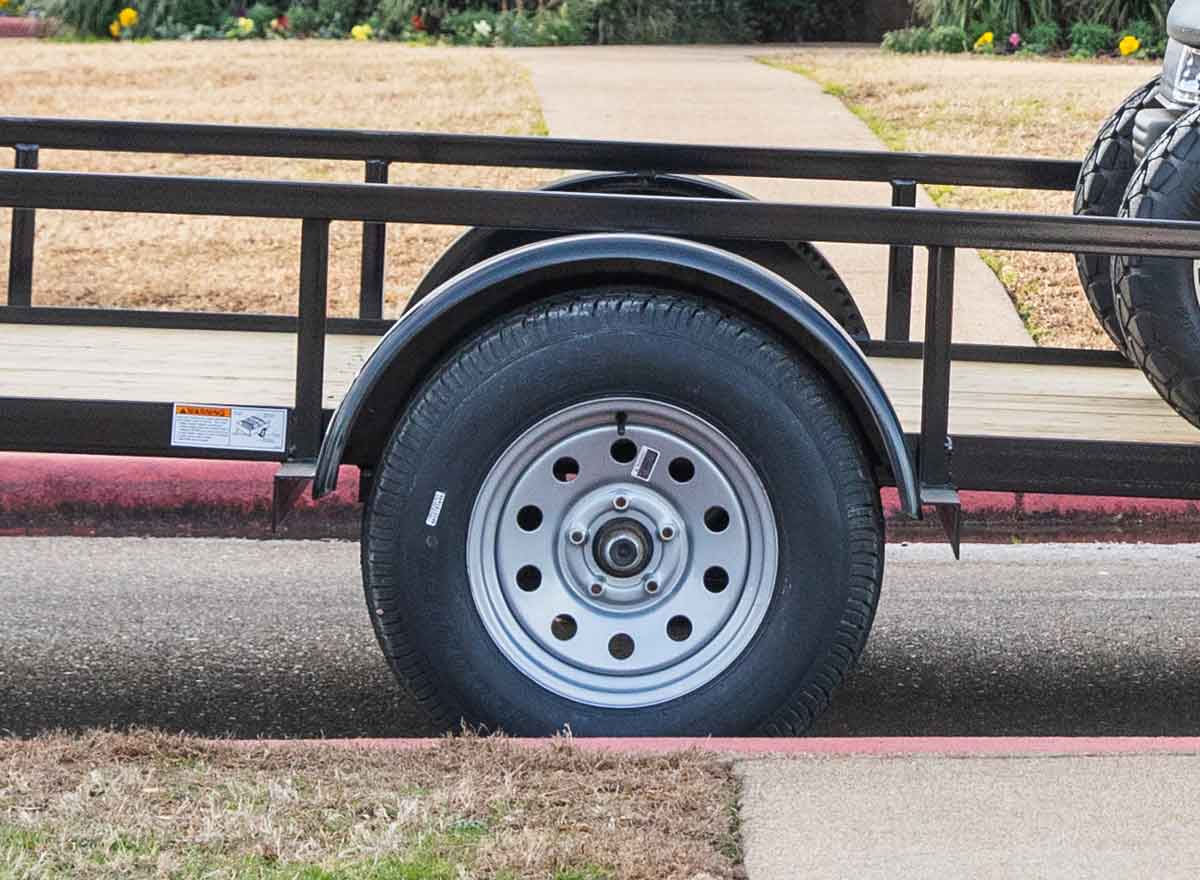

Axles 3,500# Quick Lubricating Axle
Brakes Brake Flanges for Easy Brake Addition
Suspension Multi-Leaf Spring

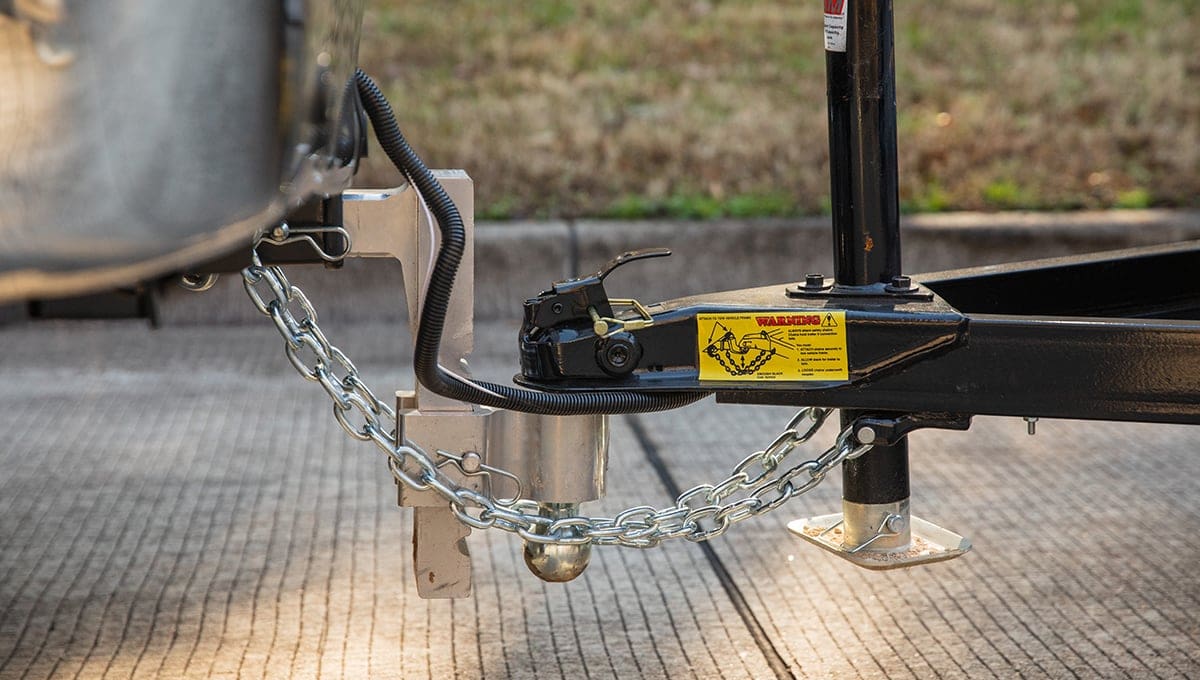

Coupler 2" A-Frame
Safety Chains 1/4" Grd. 30 w/ Safety Latch Hook (2 ea)
Jack 2,000# Top Wind, Removable Sand Foot
Frame 3" x 2" x 3/16" Angle
Cross-Members 3” x 2” x 3/16” Angle

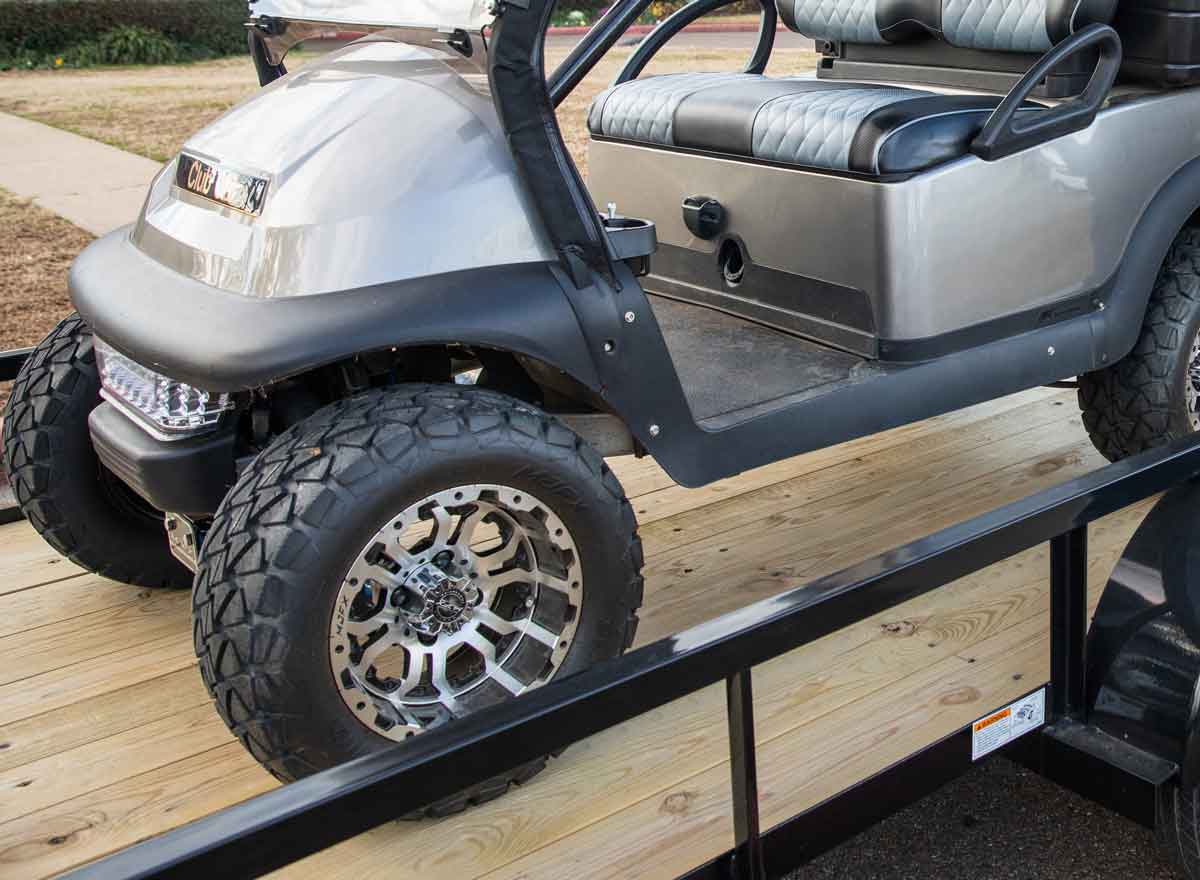

Floor Treated Pine Floor
Fenders 9" x 32" Rolled Formed w/ Back

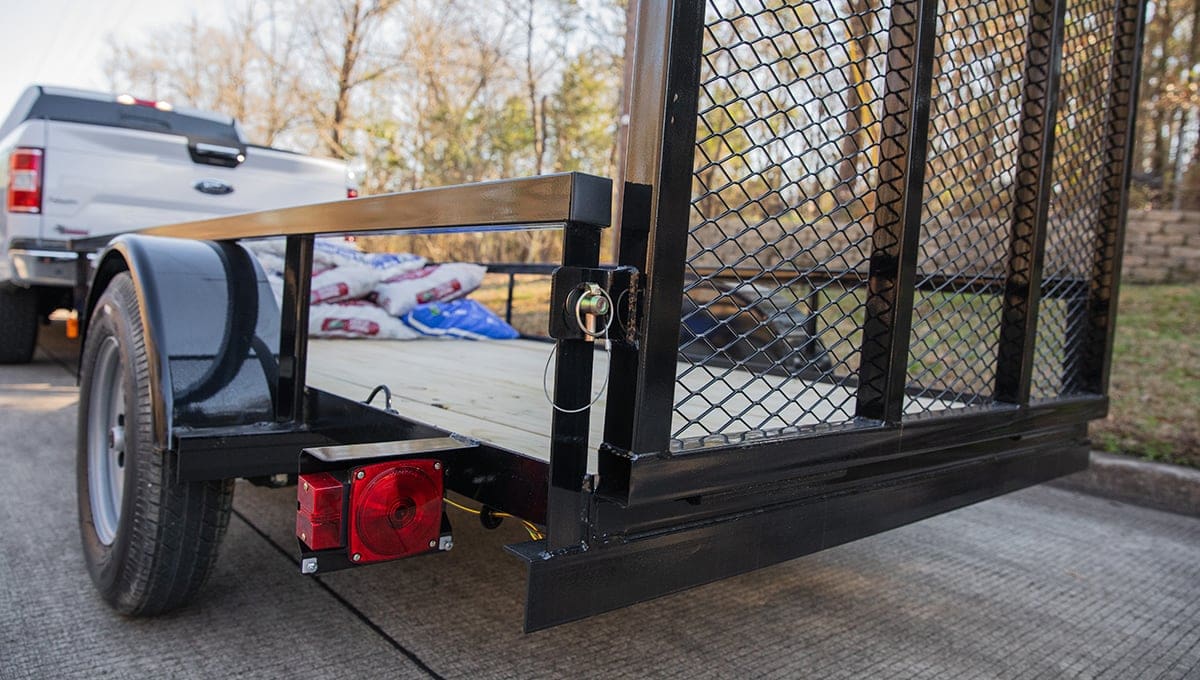

Ramps 4' Tall Rear Ramp Gate
Trailer Plug 4-Way Flat w/ Loom
Lights L.E.D. D.O.T. Stop, Tail, Turn & Clearance
Wiring Grommet-Mounted Lifetime L.E.D. Lighting
Tires ST205/75 R-15 Load Range C
Bolt Pattern 5 Bolt
Spare Tire Spare Tire (ST205/75R-15 LR-C)
Paint Type Professional Finish w/ Primer Standard
Paint Color Black Red Grey White Desert Tan Jet Blue Slime Green Implement Green Equipment Orange Medium Yellow
Tie-Downs (4) Tie Down Loops Inside Bed

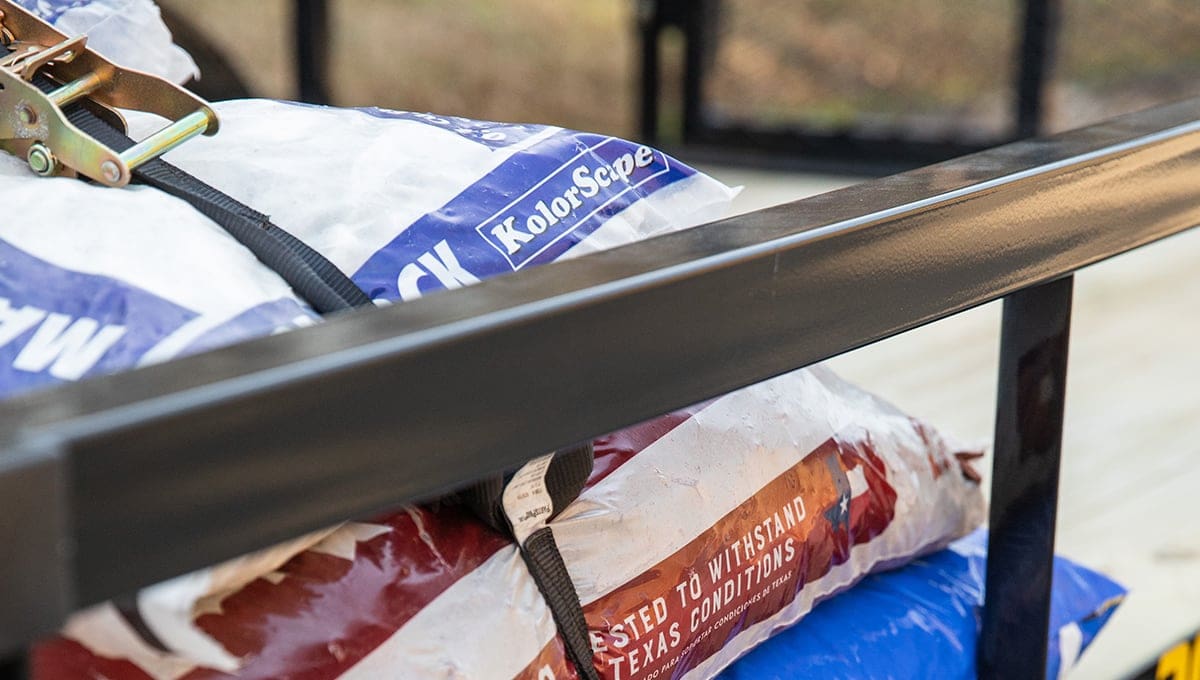

Sides 15" Tall Open sides with 1-1/2" Angle uprights and 2" x 2" Square Tubing Top Rail
