14OD
Heavy Duty Over The Axle Dump

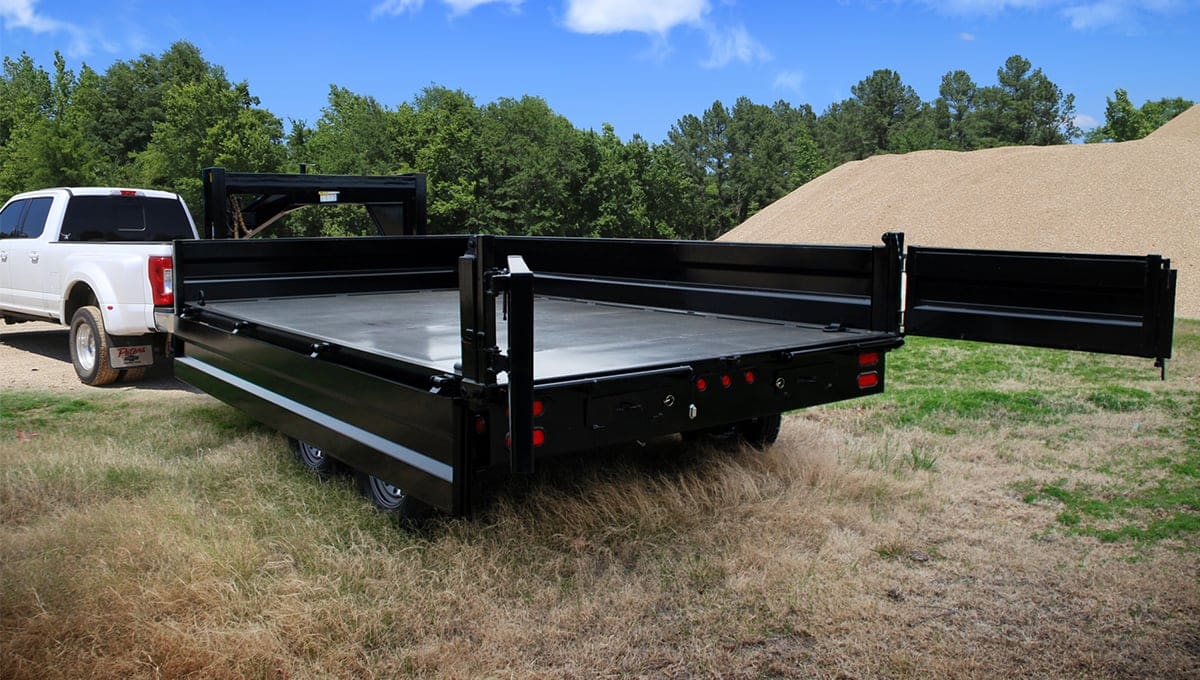

Is your work always changing and requiring you to adapt on the fly? Then you need a trailer that does the same. Versatility is the name of the game for the 14OD Over-The-Axle Dump Trailer, built to ensure that you’re prepared to take on whatever type of load comes your way. Available in either gooseneck or bumper pull configurations, its full 96"-wide body is both strong and spacious—perfect for larger loads. And when faced with a heavy-duty haul, its fold-down side panels make loading and unloading it a snap. Ready for anything, the 14OD is here to change how you work.

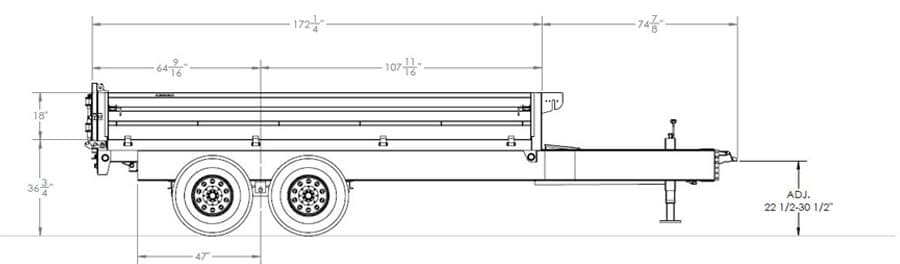

Model | Pull Type | GVWR | Empty Weight | Cargo Capacity | Bed Length | Bed Width | A | B | C | Tongue Length |
---|---|---|---|---|---|---|---|---|---|---|
10OD-14 | Bumperpull | 14000 lbs | 3160 lbs | 6.2 lbs | 14' | 96" | 172-1/2" | 107-3/4" | 34-5/8" | 75" |
Standard Feature | Available Options | |
---|---|---|
Axles | 2 - 7,000# Premium, Cambered Axles with Quick-Lubricating Hubs | |
Brakes | Forward Self-Adjusting Electric Brakes | |
Suspension | Multi-Leaf Slipper Spring w/ Equalizer | |
Tongue | 6" Channel 8" Seamless I-Beam Integrated w/ Frame (10#) | |
Coupler | Adjustable Forged 2-5/16” | |
Safety Chains | 3/8" Grade 70 w/ Safety Latch Hook (2 ea) | |
Jack | 12,000# Top Wind | 12,000# Elec/Hyd. Jack BY Stillwell™ |
Frame | 12" I-Beam, 14# | |
Cross-Members | 3" Channel on 16" Centers | |
Floor | 10 Gauge Smooth Steel | |
Fenders | 9" x 72" 14 Ga. Diamond Plate Double Broke 9” x 72” 14 Ga. Diamond Plate Double Square Broke | |
Ramps | 7' Rear Slide-In Ramps | |
Stake Pockets | Stake Pockets Along Both Sides (Quantity Varies by Length) | |
Trailer Plug | 7-Way RV | |
Lights | Recessed, Grommet-Mounted L.E.D. Lighting | |
Wiring | Sealed, Modular Cold-Weather Wiring Harness | |
Tires | ST235/80 R-16 Load Range E Radial Tires | Tire Upgrade (ST235/80 R-16 LR-G) |
Bolt Pattern | 8-Lug | |
Wheels | Black Mod Steel | |
Spare Mount | Side Spare Tire Mount | |
Spare Tire | Not Included | Spare Tire & Wheel (ST235/80 R-16 LR-E) Spare Tire Upgrade (ST235/80 R-16 LR-G) |
Paint Type | Professional Finish w/ Primer Standard | |
Paint Color | Black | |
Tie-Downs | (4) 1/2" D-Rings Inside Bed to Secure Equipment Along Sides and Rear for Cargo Control | |
Break-Away Kit | Complete System with Breakaway Cable | |
Battery | 12V Deep Cycle | |
Charger | 5A 110V on Board Battery Charger | |
Gate | Rear Combo Gate (Barn Doors & Spreader Gate) | |
J-Hooks | Along sides and rear for Cargo Control | |
Power | Power Up/Power Down Movement | 5 Watt Solar Charger Wireless Remote |
Ram | Self-Contained Single Cylinder Lift | |
Sides | 18" Tall, Drop-Down Sides (12 Gauge) | |
Stabilizers | Rear Stabilizer Stands | |
Steps | Convenient Side-Step to Access Top Rail | |
Storage | Lockable Pump and Battery Box mounted in Front of Bed | |
Top Rail | 2" x 2" Square Tubing |
