Heavy Duty Pipe Top Gooseneck Lowboy Trailer
Looking for the confidence to haul heavy-duty equipment, day in and day out? Look no further. One of our most rugged, capable, and popular pipe-top equipment trailers (and for good reason), the 14GP Heavy Duty Pipe Top Gooseneck Lowboy Trailer is purpose-built to take on the biggest jobs. Bringing together the best features of a 14K gooseneck trailer with a pipe rail for added strength and security, the 14GP is the trailer you need when the going gets tough. And with a 14,000 lbs G.V.W.R., it’s resilient, strong, and won’t back down—from morning to night, 24/7.
Forward, self-adjusting brakes make brake maintenance a breeze. The system automatically adjusts the brake shoes as they wear down, eliminating the need for manual adjustments.
Your Haul, Secured
Safely and conveniently secure your cargo with four tie-down loops inside the bed.

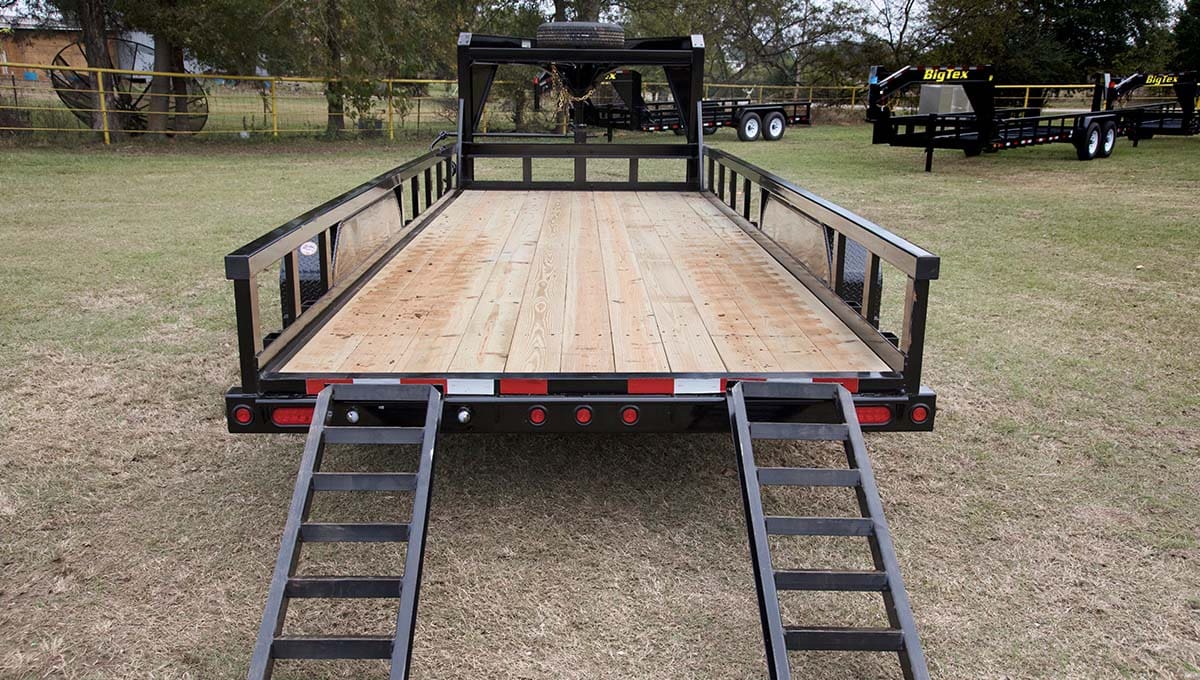

4' Slide-In Ramps
Slide-in ramps come standard on this model to make loading easy and convenient.
Sturdy 3" x 3" Pipe Top Rail
Constructed from 3" x 3" square tubing, its pipe top rail is built-strong for increased strength that’s perfect for everyday hauling.
0 of 0

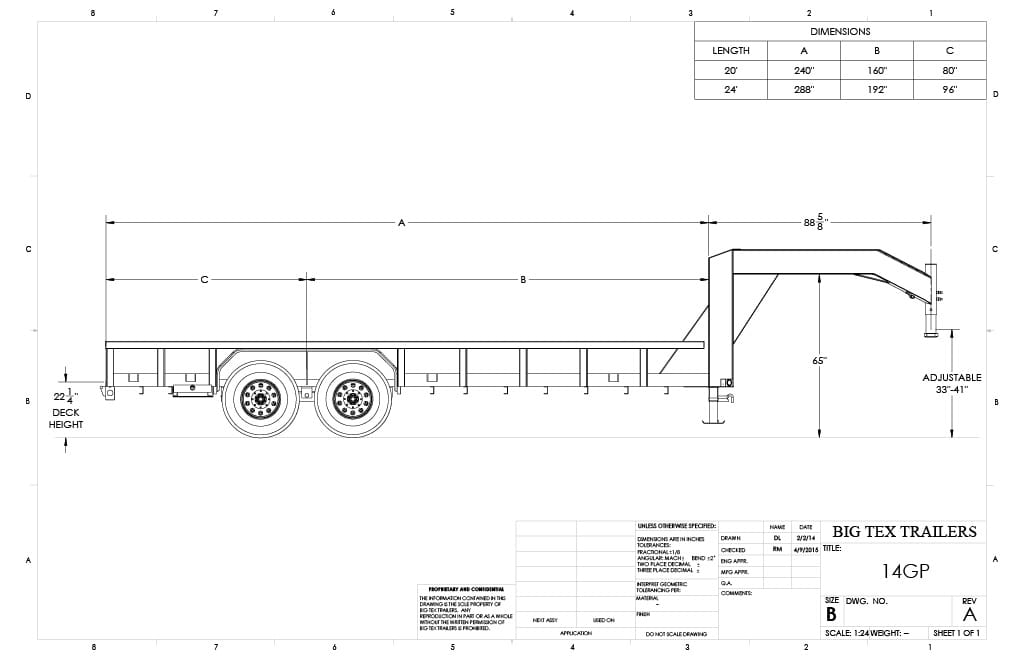

|Model||Pull Type||GVWR||Empty Weight||Cargo Capacity||Bed Length||Bed Width||A||B||C||Tongue Length|
|14GP-20||Gooseneck||14000 lbs||3450 lbs||10550 lbs||20'||83"||240"||160"||80"||88-5/8"|
|14GP-24||Gooseneck||14000 lbs||3850 lbs||10150 lbs||24'||83"||288"||192"||96"||88-5/8"|
|Standard Feature||Available Options|

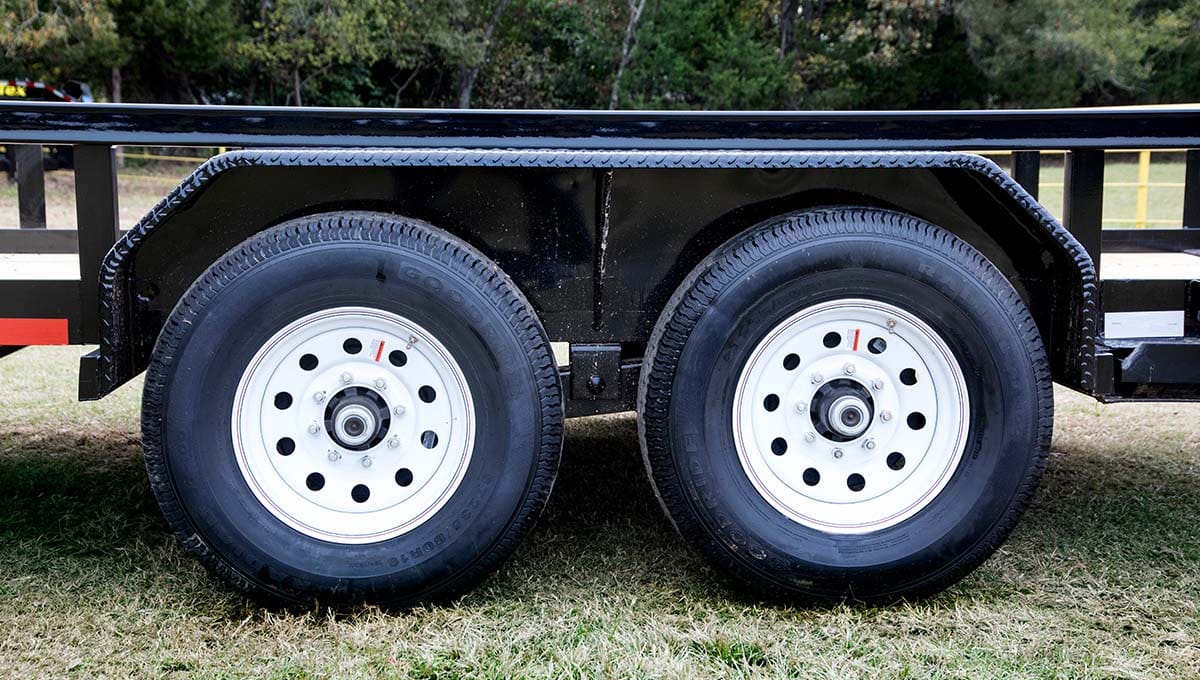

|Axles||2 - 7,000# Premium, Cambered Axles with Quick-Lubricating Hubs|
|Brakes||Forward Self-Adjusting Electric Brakes on All Hubs|
|Suspension||Multi-Leaf Spring w/ Equalizer|
|Coupler||2-5/16” Adjustable Pipe Coupler|
|Safety Chains||3/8" Grade 70 w/ Safety Latch Hook (2 ea)|
|Jack||12,000# Drop-Leg Jack (Side Wind)||Dual 12,000# Drop Leg Jacks|
|Frame||5" x 3" x 5/16" Angle|
|Cross-Members||3" Channel on 16" Centers|
|Floor||Treated Pine Floor||Blackwood Pro Rubber Infused Lumber Floor (per linear foot) 1/8” Diamond Plate Steel Floor (Per Square Foot)|
|Fenders||9" x 72" 14 Ga. Diamond Plate Double Broke|
|Ramps||4' Slide in Channel Ramps||5’ Stand Up Ramps 4' Heavy Duty Integrated Ramp Gate w/ Coil Spring 5' Heavy Duty Integrated Ramp Gate w/ Coil Spring|
|Stake Pockets||Outside Frame Stake Pockets||Additional Stake Pockets (Each)|
|Trailer Plug||7-Way RV|
|Lights||L.E.D. D.O.T. Stop, Tail, Turn & Clearance|
|Wiring||Grommet-Mounted Lifetime L.E.D. Lighting|
|Tires||ST235/80 R-16 Load Range E||Tire Upgrade (ST235/80 R-16 LR-G)|
|Spare Mount||Top of Neck Spare Tire Mount|
|Spare Tire||Spare Tire (ST235/80 R-15 LR-E) Spare Tire & Wheel (ST235/80 R-16 LR-E)|
|Paint Type||Professional Finish w/ Primer Standard|
|Paint Color||Black||Red Grey White Desert Tan Jet Blue Slime Green Implement Green Equipment Orange Medium Yellow|
|Sides||15" Tall Open sides with 3"x 2”x 3/16" Angle uprights and 3" x 3" Square Tubing Top Rail||2' High Sides (Open, Total Height with Top Rail) 3’ High Sides (Open, total height with Top Rail) 4’ High Sides (Open, total height with Top Rail) Car Hauler Style (No Side Rails) Enclose Sides w/ Expanded Metal (Per Square Foot) Enclose Sides w/ Sheet Metal (Per Square Foot)|
|Storage||Lockable Tool Box Between Gooseneck Risers (Dual Jacks Required)|
