14K Tandem Axle Equipment Trailer

“Everything you need and nothing you don’t” sometimes means the bare bones, but not here. The 14EE Tandem Axle Equipment Trailer is full of features you’ll use and a durable, heavy design to stand strong haul after haul. Its 5’ real slide-in ramps, stabilizer stands, and front stop rail makes loading in a breeze, and a 6” channel wrap tongue and Demco EZ Latch couple secures your cargo for the long haul. Armed with 7,000-pound axles, this stalwart is ready for any and all of your medium-duty tasks.

14EE 14EE

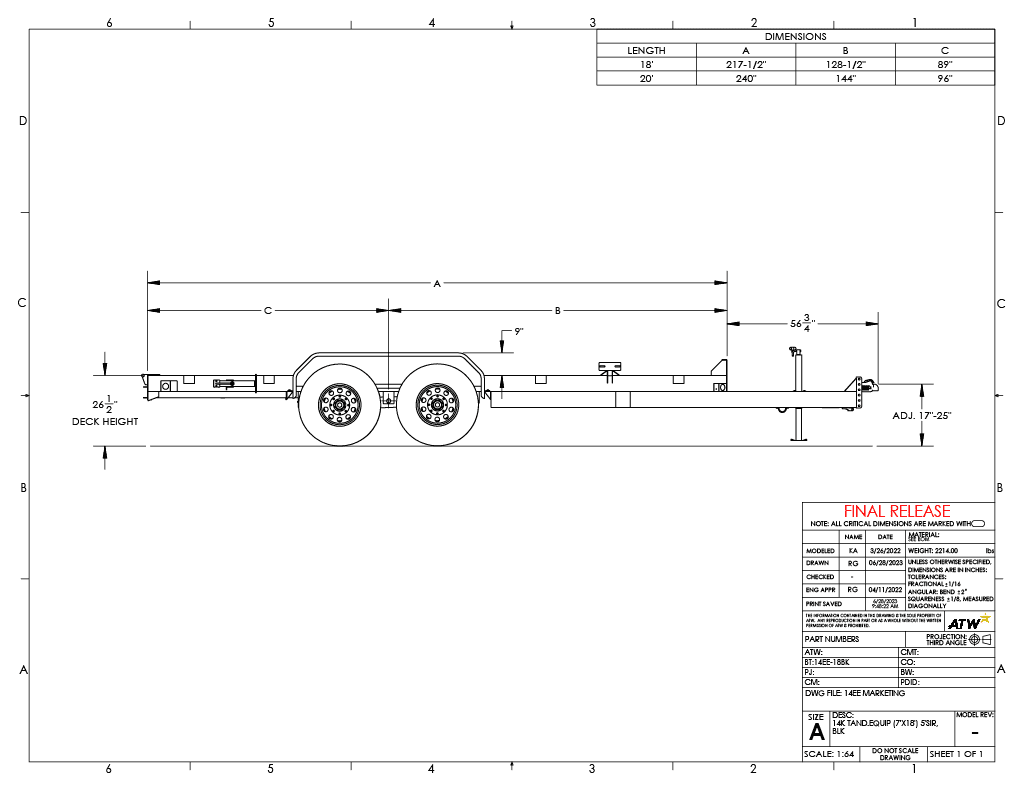

Model Pull Type GVWR Empty Weight Cargo Capacity Bed Length Bed Width A B C Tongue Length
14EE-20 Bumperpull 14000 lbs 2830 lbs 11170 lbs 20' 83" 240 144 96 46"
14EE-18 Bumperpull 14000 lbs 2630 lbs 11370 lbs 18' 83" 217-1/2" 128-1/2" 89 46"

Standard Feature Available Options
Axles 2 - 5,200# Premium, Cambered Axles with Quick-Lubricating Hubs
Brakes Forward Self-Adjusting Electric Brakes on Both Axles
Suspension Multi-Leaf Slipper Spring w/ Equalizer
Coupler 2-5/16" Ball, Adjustable Demco EZ Latch Coupler Adjustable Pintle in Channel in Lieu of Coupler
Safety Chains 3/8" Grade 70 w/ Safety Latch Hook (2 ea)
Jack 8,000# Set-Back, Drop-Leg Jack, Top Wind
Frame 6" Channel
Cross-Members 3" Channel
Front Stop Rail 3/16" Fabricated Front Stop Rail
Floor Treated Pine Floor
Fenders Double Broke Diamond Plate Fenders (Removable)
Ramps 5' Rear Slide-In Ramps (with Stabilizer Stands) 5' Stand Up Ramps
Stake Pockets Stake Pockets Along Both Sides (Quantity Varies by Length)
Trailer Plug 7-Way RV
Lights Recessed, Grommet-Mounted L.E.D. Lighting
Wiring Sealed, Modular Cold-Weather Wiring Harness
Tires ST235/80 R-16 Load Range E Radial Tires
Bolt Pattern 8-Lug
Spare Mount Front Spare Tire Mount
Spare Tire Not Included Spare Tire & Wheel (ST235/80 R-16 LR-E)
Paint Type Professional Finish w/ Primer Standard
Paint Color Black Red Grey White Desert Tan Jet Blue Slime Green Implement Green Equipment Orange Medium Yellow * Limited availability on specialty colors
Break-Away Kit Complete Breakaway System w/ Zip Breakaway Cable
