Heavy Duty Drive-Over Fender Equipment/Car Hauler
When you want to widen the scope of what you can haul, you need a trailer with a full-width, 102” deck in front and behind the fenders. That’s what the 14DF Heavy Duty Drive-Over Fender Equipment/Car Hauler offers, and then some. It features a Front Stop Rail, as well as D-Rings and Pockets for securing your gear, plus two 7,000-pound axles and a 36” cleated dovetail. As speaking of those fenders, they’re 3/16” diamond plated drive over fenders, looking good and standing strong, just like you as you go about your equipment hauling tasks.
Forward, self-adjusting brakes make brake maintenance a breeze. The system automatically adjusts the brake shoes as they wear down, eliminating the need for manual adjustments.
Fast and Easy Hitching
The Demco EZ Latch Coupler is built to last and provides a fast and easy connection, and its automatic latching system securely locks when lowered—saving you both time and effort.
Get a Grip While You Load
Get a boost of confidence as you load in or out with our 36” cleated dovetail. It provides excellent traction and prevents slipping, keeping you moving through your task smoothly.
Diamond-Plate Drive-Over Fenders
These fenders live up to their tough look with a strong construction you can even drive on.
0 of 0

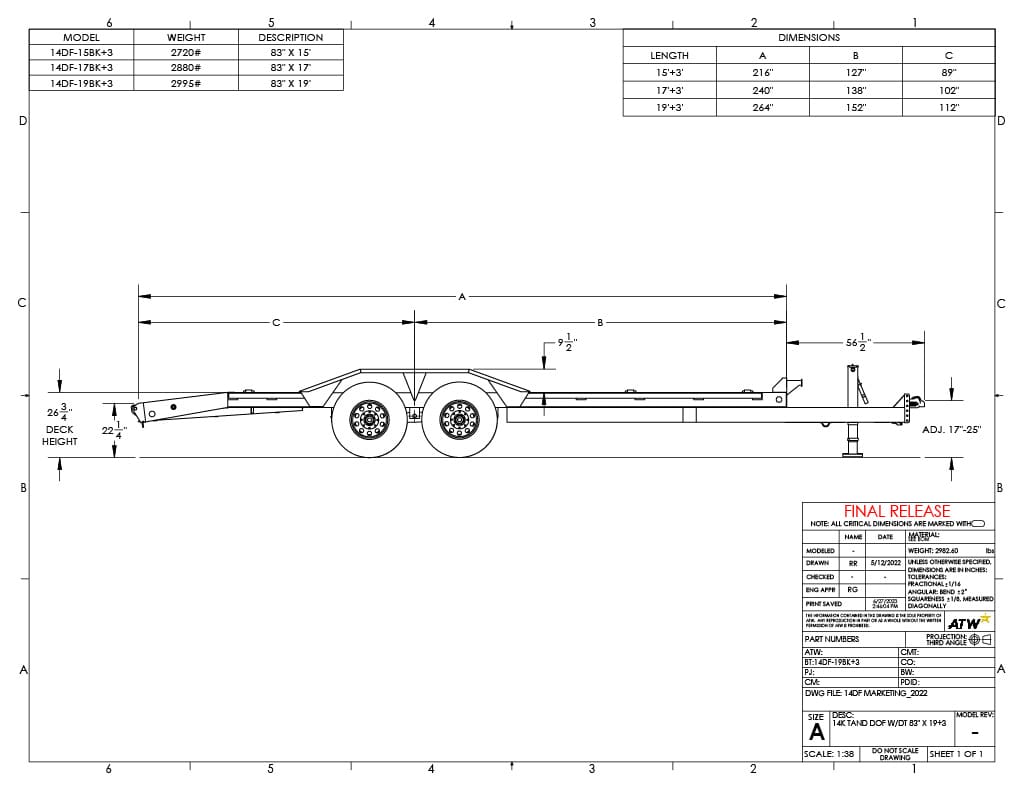

|Model||Pull Type||GVWR||Empty Weight||Cargo Capacity||Bed Length||Bed Width||A||B||C||Tongue Length|
|14DF-19+3||Bumperpull||14000 lbs||3675 lbs||10325 lbs||22'||102"||263-1/2"||153"||110-1/2"||56-3/8"|
|14DF-17+3||Bumperpull||14000 lbs||3340 lbs||10660 lbs||20'||102"||240"||138"||102"||56-3/8"|
|Standard Feature||Available Options|
|Axles||2 - 7,000# Premium, Cambered Axles with Quick-Lubricating Hubs|
|Brakes||Forward Self-Adjusting Electric Brakes on Both Axles|
|Coupler||2-5/16" Ball, Adjustable Demco EZ Latch Coupler 2-5/16" Round Gooseneck Coupler on Gooseneck models||Adjustable Pintle in Channel in Lieu of Coupler Gooseneck In Lieu Bumperpull|
|Safety Chains||3/8" Grade 70 w/ Safety Latch Hook (2 ea)|
|Jack||12,000# Drop-Leg Jack (Side Wind)|
|Cross-Members||3" Channel on 16" Centers|
|Front Stop Rail||3/16" Fabricated Front Stop Rail (Bumper Pull Only)|
|Floor||Treated Pine Floor||Blackwood Pro Rubber Infused Lumber Floor (per linear foot) 1/8” Diamond Plate Steel Floor (Per Square Foot)|
|Fenders||3/16" Diamond Plate Drive Over Fenders|
|Ramps||5' Rear Slide in Ramps w/ Stabilizer Jacks||5' Knee Ramps (19") In Lieu of Slide-in Ramps|
|Dovetail||3' Cleated Dovetail|
|Stake Pockets||Stake Pockets Along Both Sides (Quantity Varies by Length)|
|Trailer Plug||7-Way RV|
|Lights||Recessed, Grommet-Mounted L.E.D. Lighting|
|Wiring||Sealed, Modular Cold-Weather Wiring Harness|
|Tires||ST235/80 R-16 Load Range E Radial Tires||Tire Upgrade (ST235/80 R-16 LR-G)|
|Spare Mount||Front Spare Tire Mount|
|Spare Tire||Not Included||Spare Tire & Wheel (ST235/80 R-16 LR-E) Spare Tire Upgrade (ST235/80 R-16 LR-G)|
|Paint Type||Professional Finish w/ Primer Standard|
|Paint Color||Black||Red Grey White Desert Tan Jet Blue Slime Green Implement Green Equipment Orange Medium Yellow|
|Rubrail||Rub Rail Along Both Sides|
|Tie-Downs||(6) 5/8" D-Rings||Extra 5/8" D-Rings Recessed D-Ring in Floor (Steel Floor Only)|
|Break-Away Kit||Complete Breakaway System w/ Zip Breakaway Cable|
