Pro Series Over-The-Axle Bumperpull Trailer
Does your day-to-day work involve transporting pallets or medium-weight equipment? Then the 10OA Pro Series Over-The-Axle Bumperpull Trailer is made for you. A versatile deck-over trailer that’s also affordable, the 10OA is designed to efficiently and securely haul your load using the entire width of the trailer. A 102’’ low-profile bed for easier loading and unloading, I-beam frame and integral tongue for added strength and durability, and an adjustable coupler for a secure and reliable connection, this highly versatile trailer works hard to help make your daily operations a little easier.
Forward, self-adjusting brakes make brake maintenance a breeze. The system automatically adjusts the brake shoes as they wear down, eliminating the need for manual adjustments.
Keep Your Haul Secured
Safeguard cargo with a solid one-piece stop rail and reliable d-ring tie downs, specifically designed to provide maximum security and stability during loading and towing.
An integrated storage tray in the tongue area provides additional organizational space.
Connected with Confidence

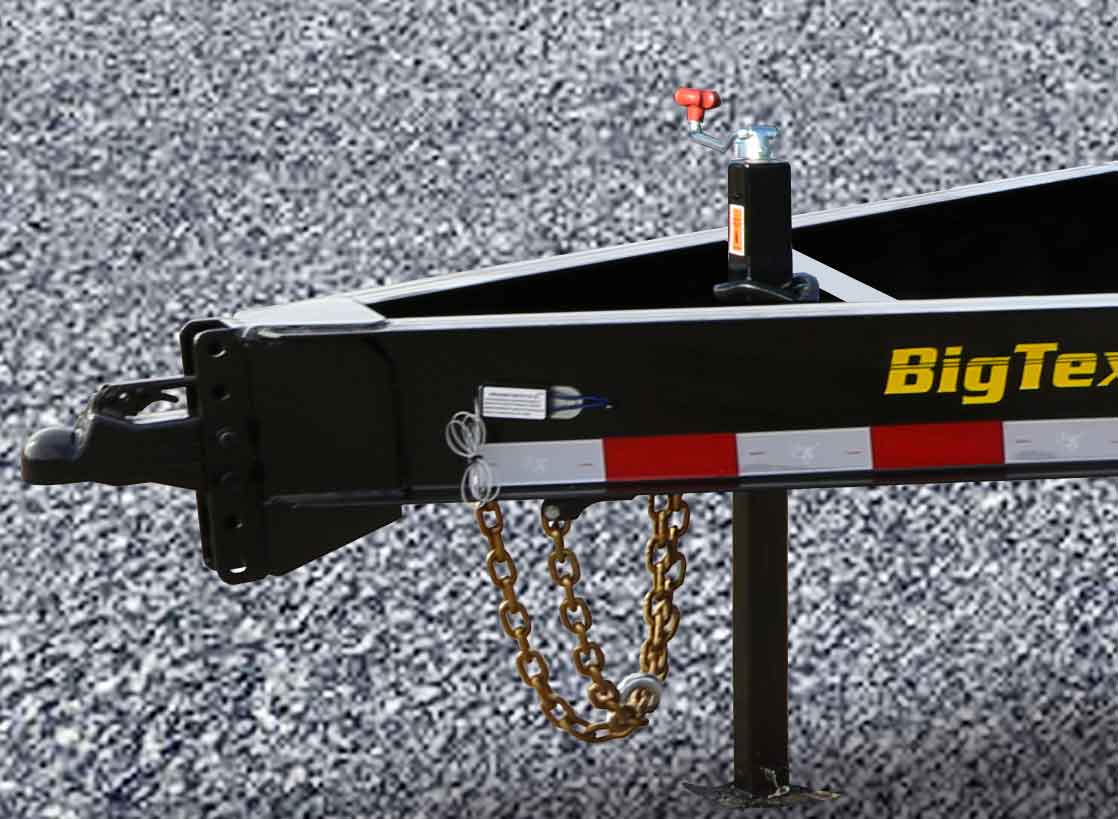

Hook up and go with an adjustable forged coupler, built for durability and to securely connect to your tow vehicle.
0 of 0

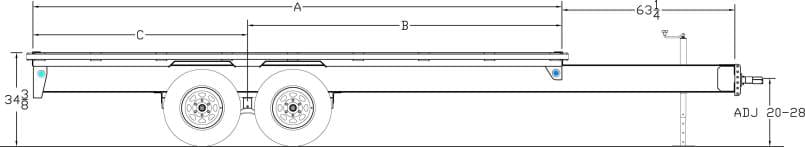

|Model||Pull Type||GVWR||Empty Weight||Cargo Capacity||Bed Length||Bed Width||A||B||C||D|
|10OA-21+3||Bumperpull||9990 lbs||4160 lbs||5830 lbs||24'||102"||63-1/4"|
|10OA-19+3||Bumperpull||9990 lbs||3870 lbs||6120 lbs||22'||102"||63-1/4"|
|10OA-17+3||Bumperpull||9990 lbs||3660 lbs||6330 lbs||20'||102"||63-1/4"|
|10OA-20||Bumperpull||9990 lbs||3240 lbs||6750 lbs||20'||102"||240"||138"||102"||63-1/4"|
|10OA-18||Bumperpull||9990 lbs||3085 lbs||6905 lbs||18'||102"||217-1/2"||127"||90-1/2"||63-1/4"|
|10OA-16||Bumperpull||9990 lbs||2930 lbs||7060 lbs||16'||102"||193-1/2"||115"||78-1/2"||63-1/4"|
|Standard Feature||Available Options|
|Axles||2 - 5,200# Premium, Cambered Axles with Quick-Lubricating Hubs|
|Brakes||Forward Self-Adjusting Electric Brakes on Both Axles|
|Suspension||Multi-Leaf Slipper Spring w/ Equalizer|
|Coupler||Adjustable Forged 2-5/16”||Adjustable Pintle in Channel in Lieu of Coupler|
|Safety Chains||1/4” Grd. 70 w/Safety Latch Hook (2 each)|
|Jack||8,000# Set-Back, Drop-Leg Jack|
|Frame||8" I-Beam (10#)|
|Cross-Members||3" x 3.5" Channel|
|Front Stop Rail||3/16" Fabricated Front Stop Rail|
|Floor||Treated Pine Floor||Blackwood Pro Rubber Infused Lumber Floor (per linear foot)|
|Ramps||5’ HD Stand Up Ramps (Standard Equipped on "+3" Models) 8’ Slide In Ramp Package|
|Stake Pockets||Stake Pockets Along Both Sides, 24" O.C. (Quantity Varies by Length)|
|Trailer Plug||7-Way RV|
|Lights||Recessed, Grommet-Mounted L.E.D. Lighting|
|Wiring||Sealed, Modular Cold-Weather Wiring Harness|
|Tires||ST225/75 R-15 Load Range D Radial Tires|
|Spare Mount||Front Spare Tire Mount|
|Spare Tire||Spare Tire (ST225/75R-15 LR-D)|
|Paint Type||Professional Finish w/ Primer Standard|
|Paint Color||Black||Red Grey White Desert Tan Jet Blue Slime Green Implement Green Equipment Orange Medium Yellow|
|Rubrail||Rub Rail Along Both Sides|
|Tie-Downs||Extra 5/8" D-Rings|
|Break-Away Kit||Complete Breakaway System w/ Zip Breakaway Cable|
|Storage||Storage Tray in Tongue|
|Side Rail||5" Channel|

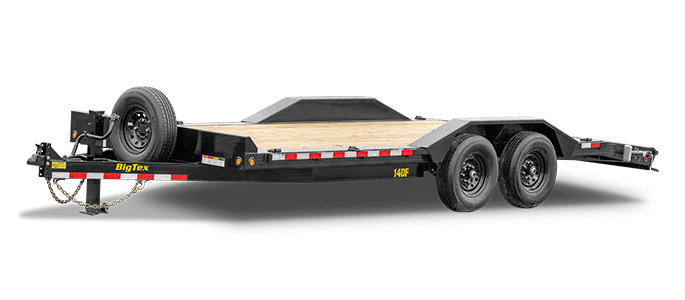

Heavy Duty Drive-Over Fender Equipment/Car Hauler
