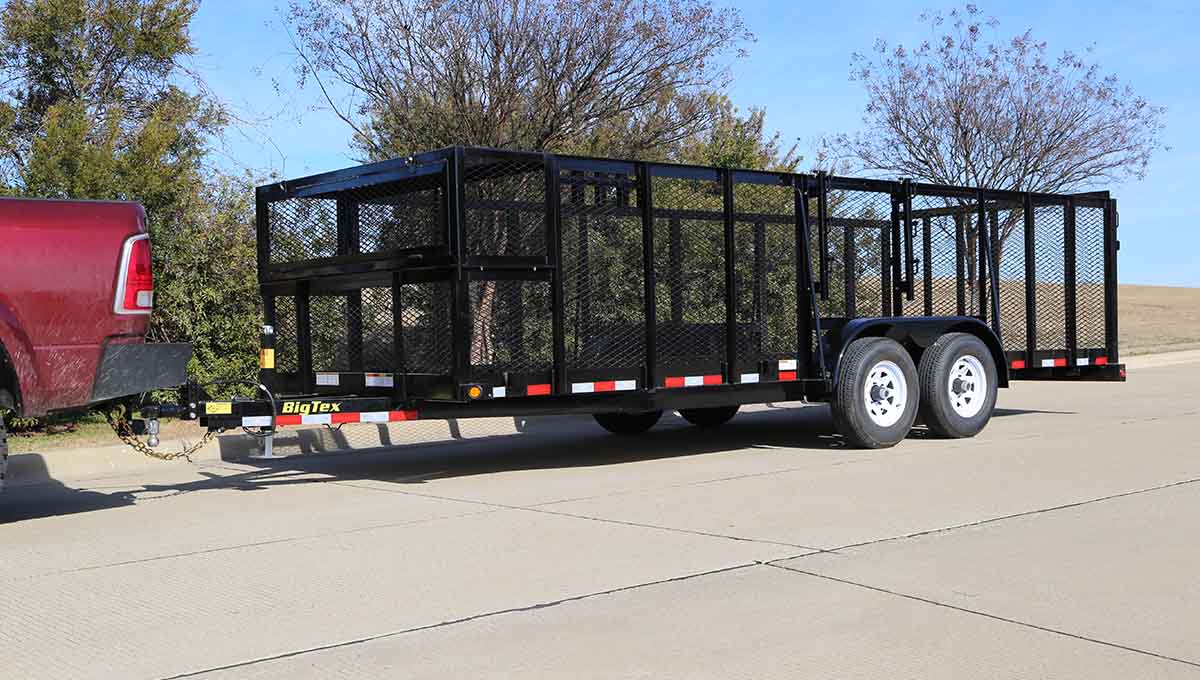

Pro Series Tandem Axle Landscape Trailer
Outfit your operation with one of the most versatile and rugged landscaping trailers, the 10LR Pro Series Tandem Axle Landscape Trailer. From heavy-duty landscaping equipment to zero-turn mowers, this trailer is built–strong to haul loads up to 7,250 lbs. And beyond its reinforced structure and frame for superior strength and durability, it’s packed to the brim with features to easily and securely accommodate all your cargo and gear. Weed trimmer racks, tool holders, and a lockable landscape box all come standard. Plus, it has expanded metal sides to ensure your equipment and tools are with you from job to job, every day of the week.

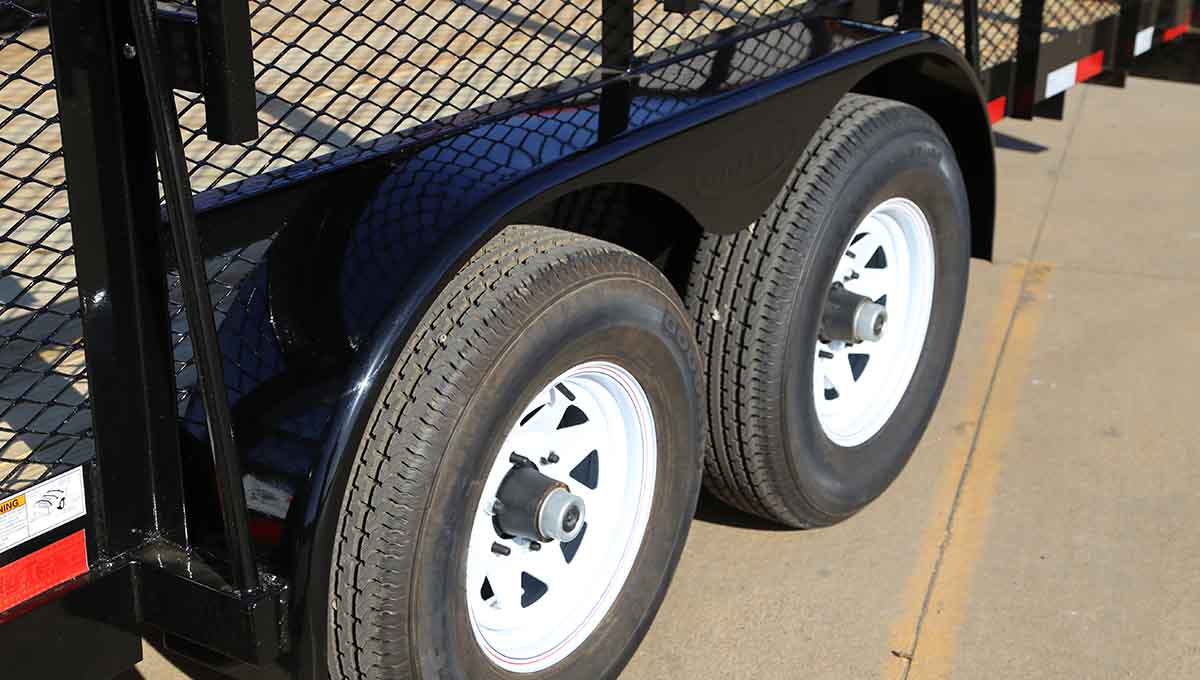

Long lasting tires deliver a smooth ride while also offering superior fuel economy.
8,000 lbs Set Back Jack
Designed to lower the tailgate of your tow vehicle without the top of the jack damaging it.

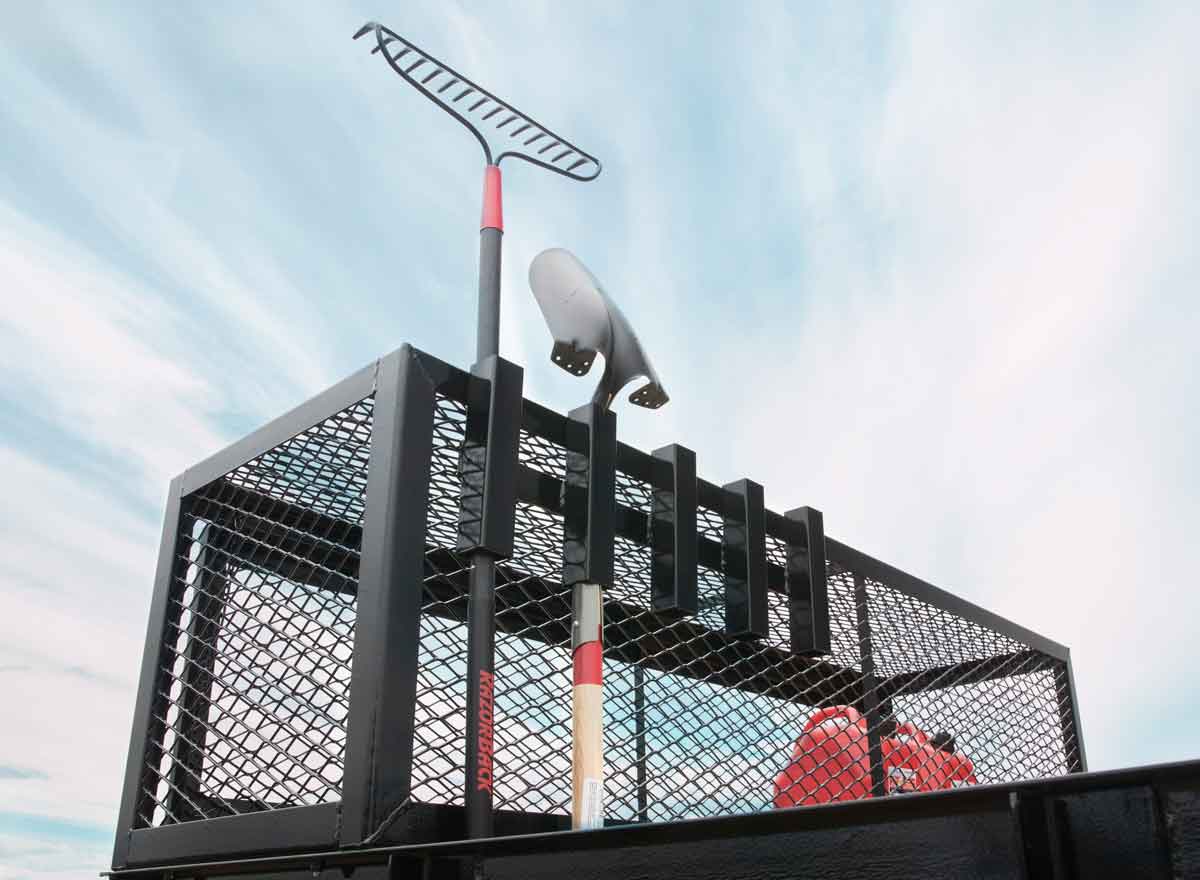

Equipped To Work
Optional tool holders that can be installed on the landscape box allow you to hang shovels and rakes while in transit to job sites.

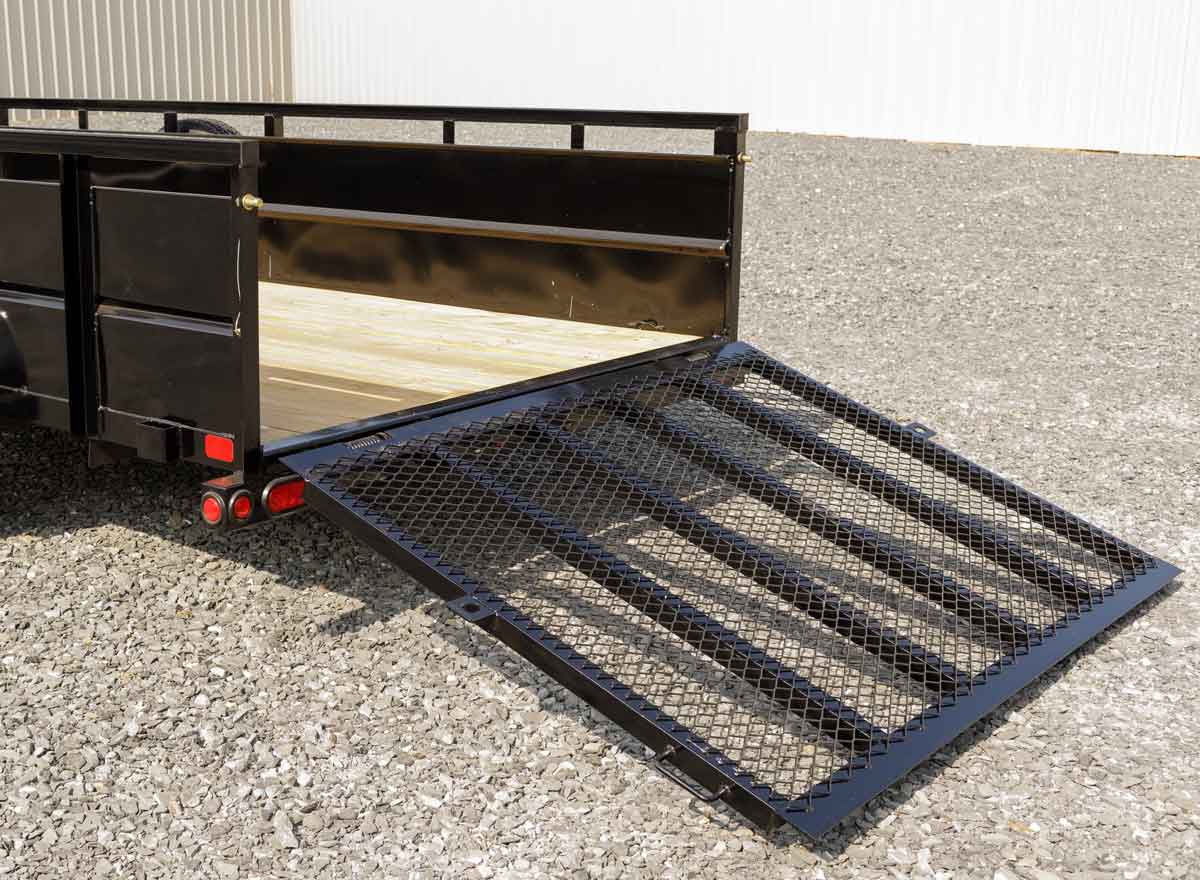

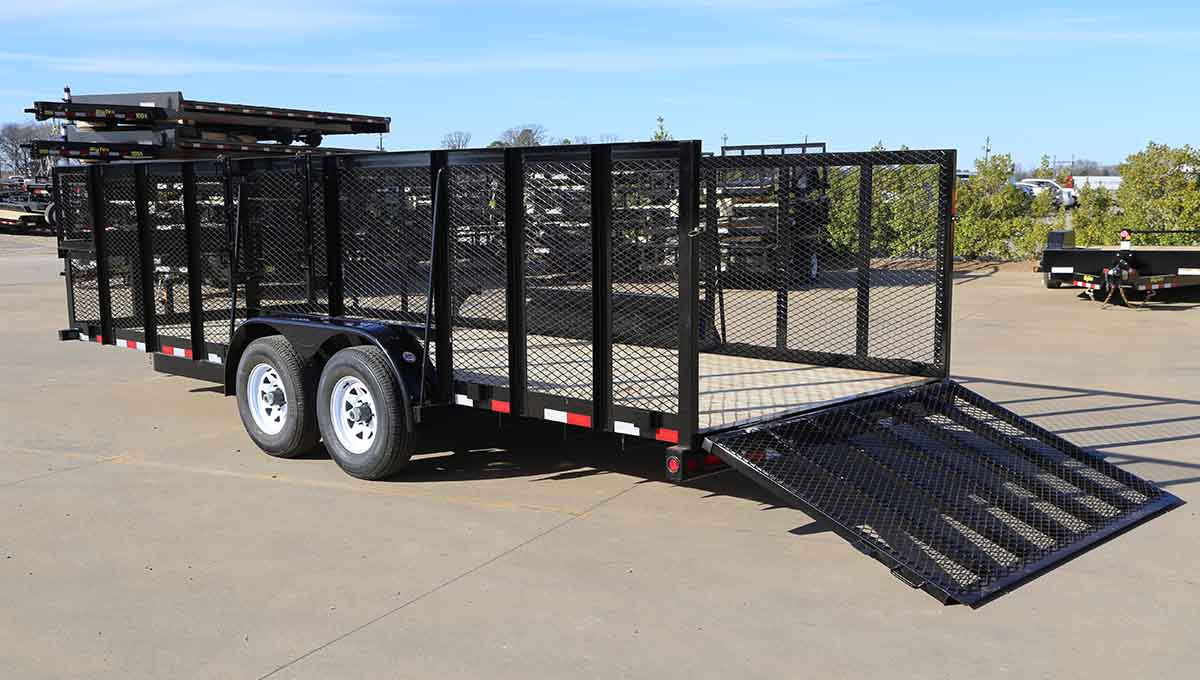

Spring Assist with Standard Ramp Gate
Expand your hauling capabilities with a standard 4’ tall rear ramp gate—ideal for transporting a variety of vehicles, including golf carts, ATVs, side-by-sides, and more.

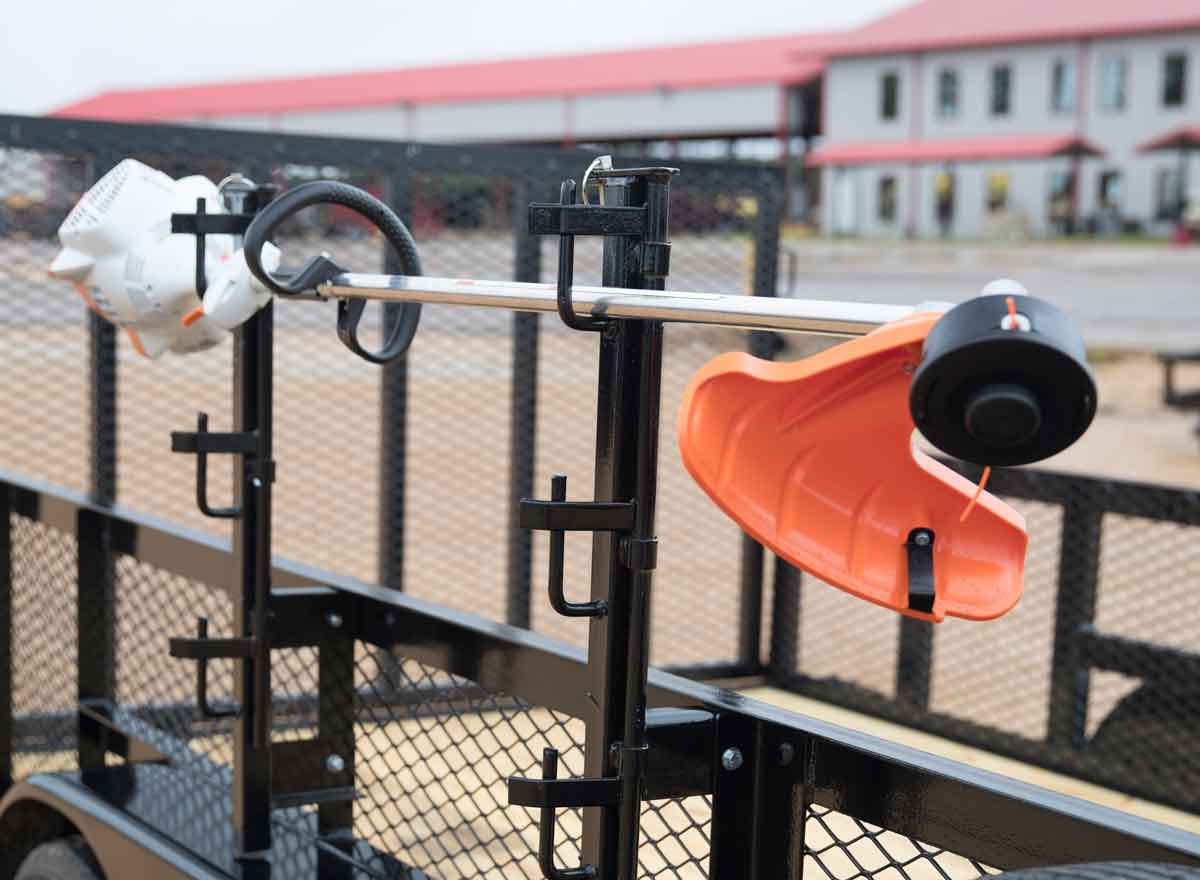

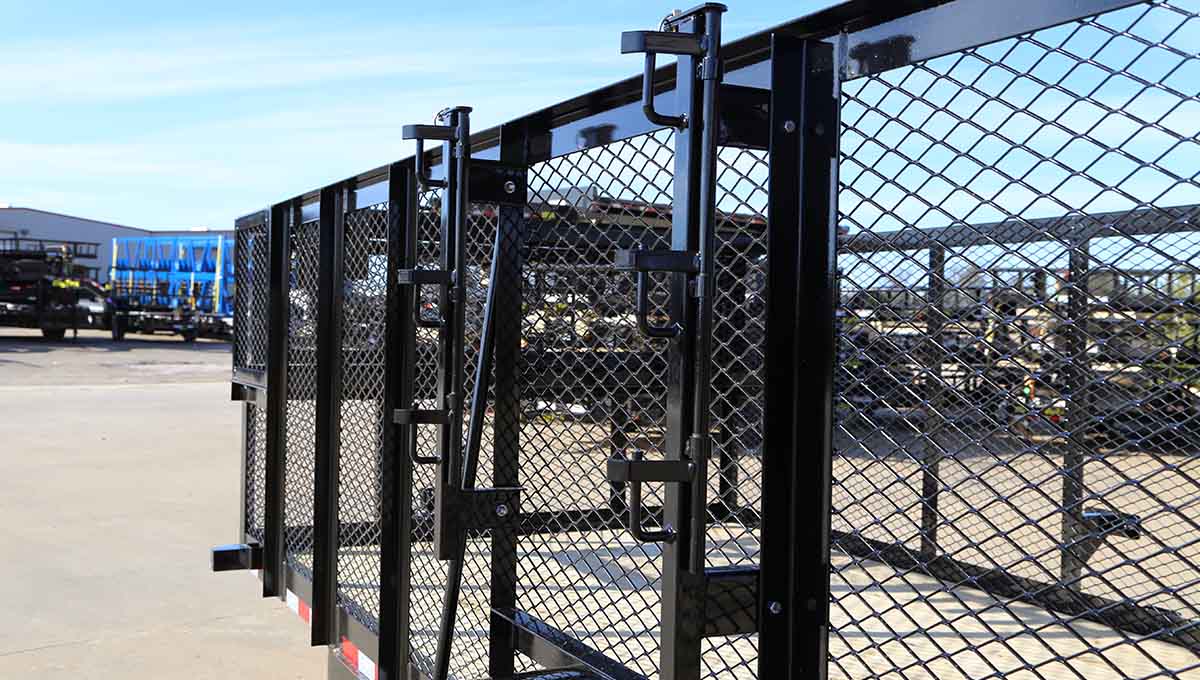

Weed Trimmer Rack
Provide a lockable location for three weedeaters, edgers, pole saws, or other similar types of gear.

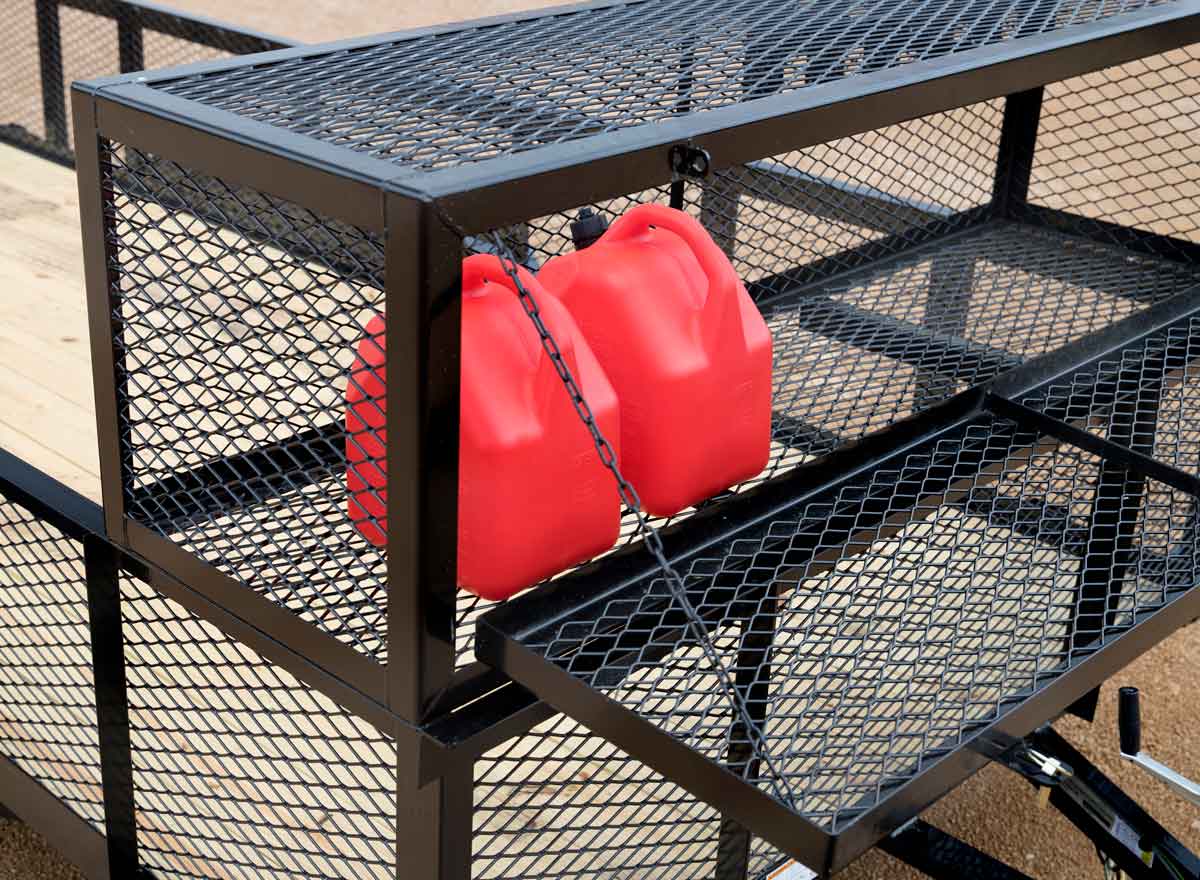

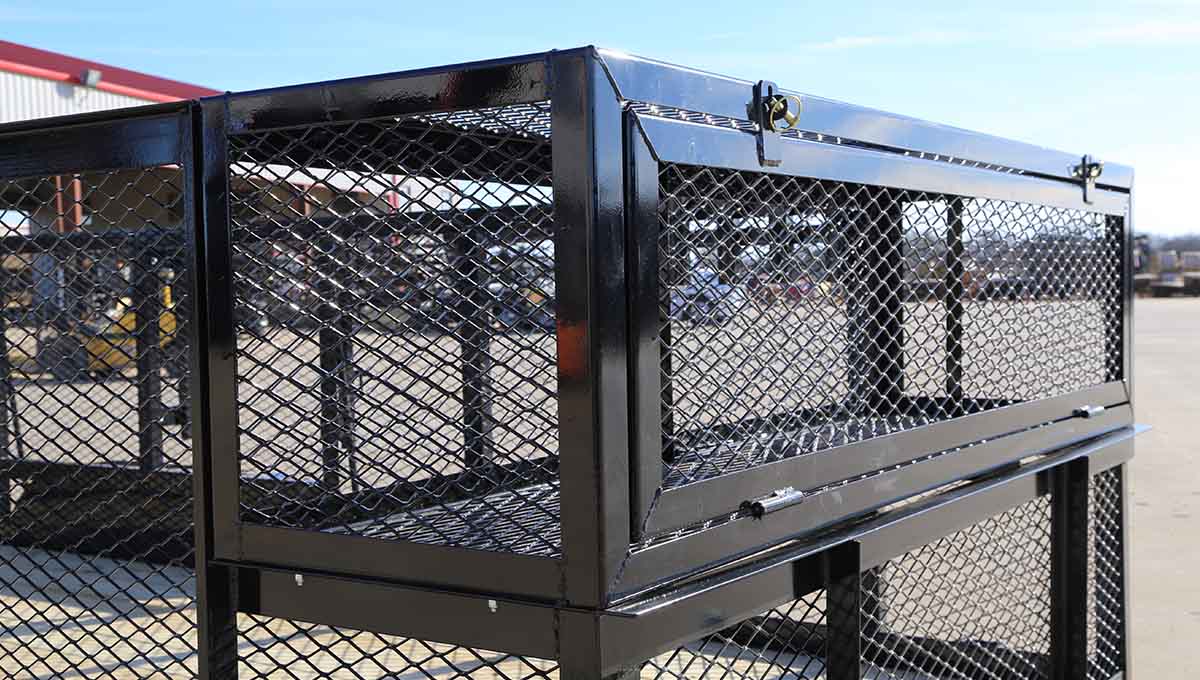

Your Gear, Secured
Comes standard equipped with a lockable landscape box to conveniently store gas cans, tools, and other gear while on the job.
0 of 0

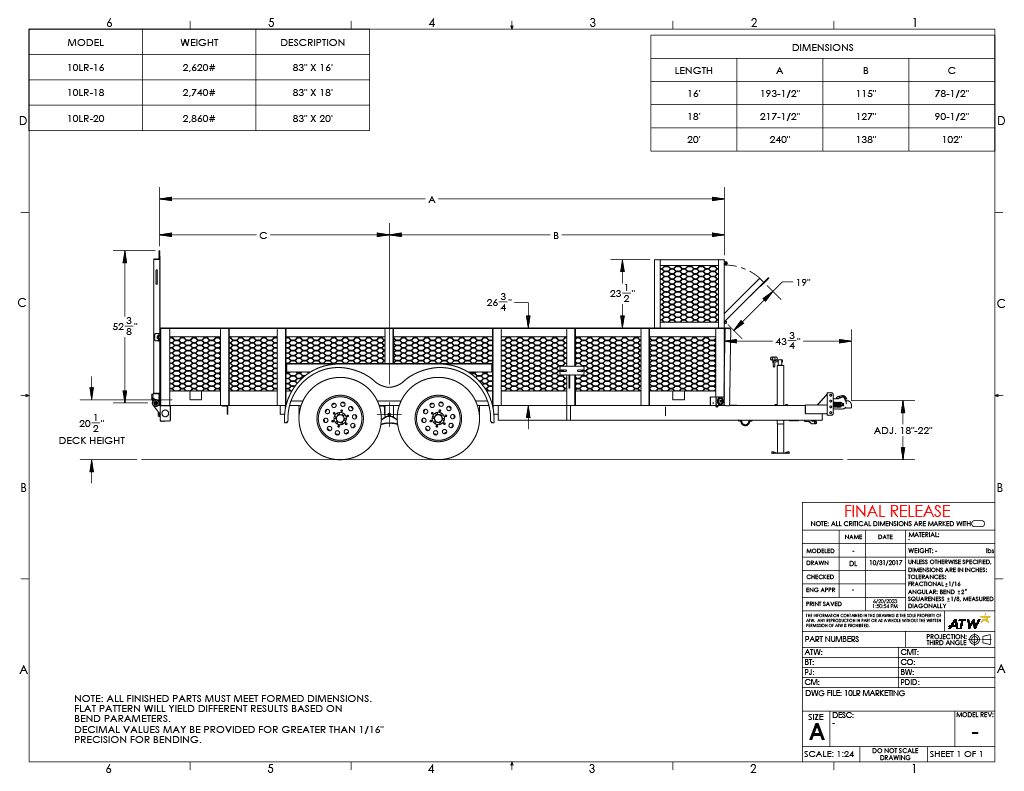

|Model||Pull Type||GVWR||Empty Weight||Cargo Capacity||Bed Length||Bed Width||A||B||C||Tongue Length|
|10LR-20||Bumperpull||9990 lbs||2860 lbs||7130 lbs||20'||83"||240"||138"||102"||45"|
|10LR-18||Bumperpull||9990 lbs||2740 lbs||7250 lbs||18'||83"||217-1/2"||127"||90-1/2"||45"|
|Standard Feature||Available Options|
|Axles||1 - 5,200# Premium, Cambered Axles with Quick-Lubricating Hubs|
|Brakes||Forward Self Adjusting Brakes|
|Suspension||Multi-Leaf Slipper Spring w/ Equalizer|
|Coupler||2-5/16” Demco EZ Latch||Adjustable Pintle in Channel 2-5/16” Stamped Coupler|
|Safety Chains||1/4" Grd. 30 w/ Safety Latch Hook (2 ea)|
|Jack||8,000# Drop Leg, Set-Back Jack (Bolted On)|
|Frame||5" x 3" x 1/4" Angle|
|Cross-Members||3” x 2” x 3/16” Angle|
|Floor||Treated Pine or Douglas Fir||Blackwood Pro Rubber Infused Lumber Floor (per linear foot) 1/8” Diamond Plate Steel Floor (Per Square Foot)|
|Fenders||9" x 72" 16 Ga. Rolled Formed|
|Ramps||4' Heavy Duty Integrated Ramp Gate||5' Heavy Duty Integrated Ramp Gate w/ Coil Spring|
|Stake Pockets||(4) Stake Pockets on Outside Frame||Additional Stake Pockets (Each)|
|Trailer Plug||7-Way RV|
|Lights||L.E.D. D.O.T. Stop, Tail, Turn & Clearance|
|Wiring||Grommet-Mounted Lifetime L.E.D. Lighting|
|Tires||ST225/75R-15 Load Range D|
|Bolt Pattern||6 Bolt|
|Spare Mount||Side Spare Tire Mount|
|Spare Tire||Spare Tire (ST225/75R-15 LR-D)|
|Paint Type||Professional Finish w/ Primer Standard|
|Paint Color||Black||Red Grey White Desert Tan Jet Blue Slime Green Implement Green Equipment Orange Medium Yellow|
|Tie-Downs||(4) Tie Down Loops Inside Bed||5/8" D-Ring Additional Tie Loops|
|Sides||24" Tall with Expanded Metal||4’ Tall Expanded Metal Sides|
|Storage||Bolt-On Landscape Box (24" x 24" x 87")|
|Top Rail||3" x 2" x 3/16" Angle|
