Quick Lubricating Hubs
Simple to maintain and completely submersible with no disassembly required.

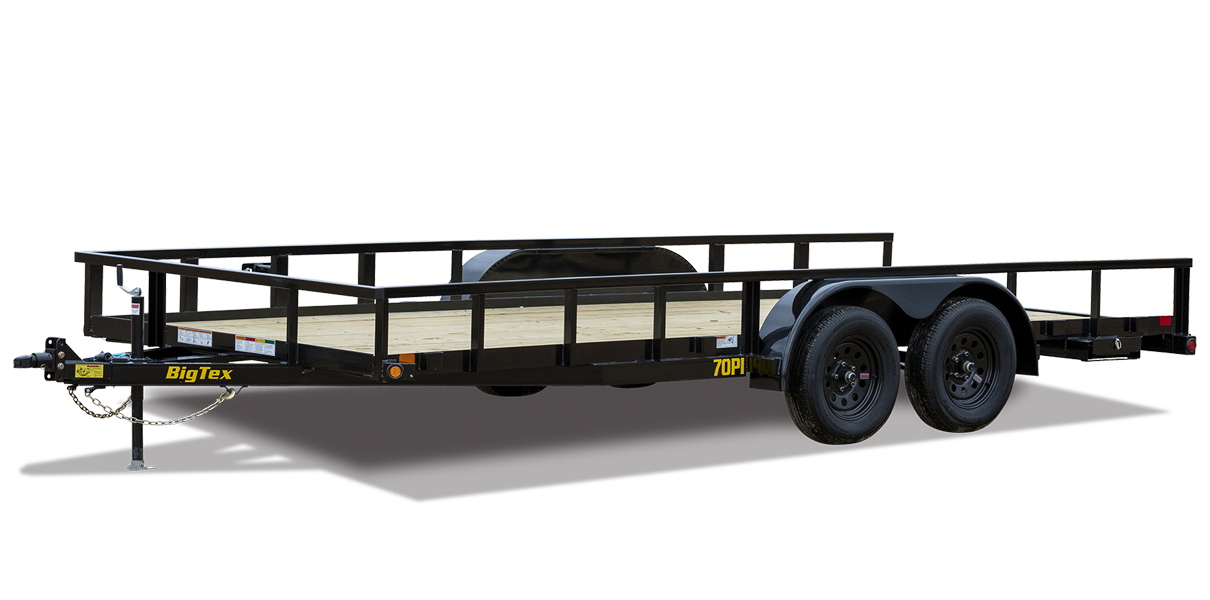

The 70PI-X Tandem Axle Pipe Top Utility Trailer comes standard with a generous 83-inch width. Ideal for hauling compact trailers, small equipment and other farm and ranch applications, the 70PI-X is sturdy, versatile and economical.
Interested in purchasing this trailer?
| AXLE | (2) 3,500# Quick Lubricating w/ (1) Elec. Brake |
|---|---|
| JACK | 2,000# Top Wind, Set-Back Jack |
| TIRE | ST205/75R-15 Load Range C |
| FLOOR | 2" Treated Pine or Douglas Fir* |
| FRAME | 4" x 3" x 1/4" Angle |
| WHEEL | 15" x 5"; Black Mod 5 on 5 Bolt Pattern |
| FINISH | Superior Quality Finish is Applied for a Highly Decorative and Protective Finish |
| LIGHTS | L.E.D. D.O.T. Stop, Tail, Turn & Clearance |
| TONGUE | 4" Channel Fold Back/Wrap Tongue |
| COUPLER | Adjustable, 7,000#, 2" Forged Coupler |
| FENDERS | 9" x 72" Tear Drop w/ Back |
|---|---|
| G.V.W.R. | 7,000# |
| TOP RAIL | 2" x 2" Square Tubing |
| UPRIGHTS | 16" Tall 3" x 2" x 3/16" Angle |
| ELEC. PLUG | 7-Way RV |
| SUSPENSION | Multi-Leaf Spring w/ Equalizer |
| CROSSMEMBERS | 3" x 2" x 3/16" Angle |
| FINISH (Prep) | Steel is Cleaned to Ensure a Professional, Smooth Finish |
| SAFETY CHAINS | 1/4" Grd. 70 w/ Safety Latch Hook (2 each) |
| G.A.W.R. (Ea. Axle) | 3,500# |
| Model | Weight | Description |
|---|---|---|
| 70PI-14X | 1,780# | 83" x 14' Tandem Axle Pipe Top Utility Trailer |
| 70PI-16X | 1,860# | 83" x 16' Tandem Axle Pipe Top Utility Trailer |
| 70PI-18X | 1,940# | 83" x 18' Tandem Axle Pipe Top Utility Trailer |
| 70PI-20X | 2,020# | 83" x 20' Tandem Axle Pipe Top Utility Trailer |
Simple to maintain and completely submersible with no disassembly required.
Built for durability and a secure connection to tow vehicle.
Integrated loops for convenience ensuring a secure load.
LED lighting is brighter and lasts longer.
Industry-leading axles with a smooth, reliable ride.
Ensure safety and automatically adjust to proper clearances during travel.
| Category | Description |
|---|---|
| BODY | 1/8" Diamond Plate Steel Floor (Per Square Foot) |
| BODY | 2 High Sides (Open) |
| BODY | 3 High Sides (Open) |
| BODY | 4 High Sides (Open) |
| BODY | Blackwood Pro Rubber Infused Floor |
| BODY | Enclose Sides w/ Expanded Metal |
| BODY | Enclose Sides w/ Sheet Metal |
| BRAKES | Electric Brakes on 2nd Axle |
| CARGO CONTROL | Additional Tie Down Pockets |
| COUPLER | 2-5/16" Forged Coupler |
| COUPLER | 2-5/16" Stamped Coupler |
| JACK | 2,000# Fold-Up Jack |
| JACK | 8,000# Drop-Leg Jack |
| RAMPS | 4 Heavy Duty Integrated Rampgate w/Gas Shock Assist |
| RAMPS | 4 Slide-In Ramp Package |
| RAMPS | 4 Tall Bi-Fold Rear Rampgate w/ Coil Spring Assist |
| RAMPS | 4 Tall Rear Rampgate w/Coil Spring Assist |
| RAMPS | 5 Stand Up Ramps |
| RAMPS | 5 Tall Rear Rampgate w/Coil Spring Assist |
| TIRE/WHEEL | Spare Tire (ST205/75R-15 LR-C) |
| TIRE/WHEEL | Spare Tire Mount (Side) |
| TIRE/WHEEL | Spare Tire Upgrade (ST225/75R-15 LR-D) |
| TIRE/WHEEL | Tire Upgrade (ST225/75R-15 LR-D) |
Big Tex Trailers reserves the right to change price, design, material and/or specifications without notice or obligation.
