25DU

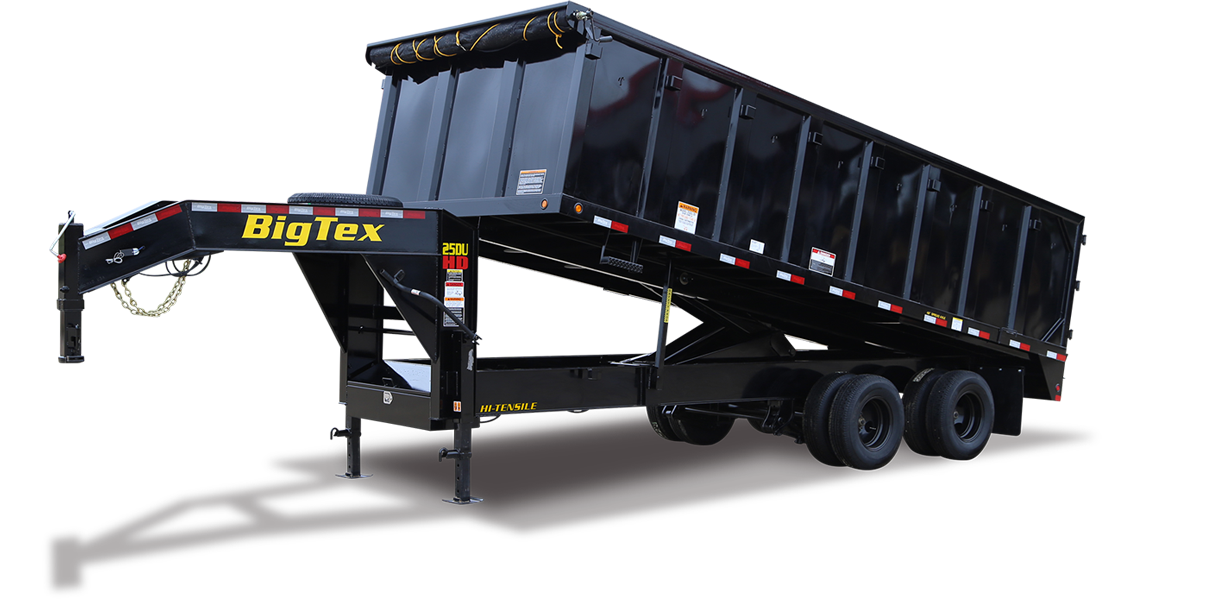

Tandem Dual Gooseneck Dump Trailer

The 25DU Tandem Dual Gooseneck Dump Trailer from Big Tex is the heavy-duty dump trailer users dream. With 4-foot sides, this unit is designed to handle any load of trash, sand or gravel, and is even equipped with ramps for loading equipment for easy transport.

Interested in purchasing this trailer?

Locate a 25DU

Specs...

360°

AXLE (2) 10,000# Dual Wheel Oil Bath Electric Brakes
JACK Dual 12,000# Side Wind Drop Legs
NECK 12" I-Beam
TIRE ST235/80 R-16 Load Range E Dual
FLOOR 10 Gauge Smooth Steel
WHEEL 16" x 6"; Black Dual Wheel 8 Bolt
FINISH Superior Quality Finish is Applied for a Highly Decorative and Protective Finish.
LIGHTS L.E.D. D.O.T. Stop, Tail, Turn & Clearance
COUPLER 2-5/16" Square Adjustable Crank Type (30K)
FENDERS Double Square Broke Diamond Plate
G.V.W.R. 25,900#
ELEC. PLUG 7-Way RV
HITCH TYPE Gooseneck
MAIN FRAME 12" x 16# I-Beam
SUSPENSION Heavy Duty 30,000# Adjustable
FINISH (Prep) Steel is Cleaned to Ensure a Professional Smooth Finish.
SAFETY CHAINS 3/8" Grd. 70 w/Safety Latch Hook (2 each)
DUMP BODY SIDES 48" Tall Sides (12 Gauge)
DUMP BODY TOP RAIL 4" x 2" Rectangular Tubing
G.A.W.R. (Ea. Axle) 10,000#
DUMP BODY CROSSMEMBERS 3" Channel, 16" Centers

Models

Model Weight Description
25DU-18 7,620# 92" x 18' Tandem Dual Gooseneck Dump
25DU-20 8,070# 92" x 20' Tandem Dual Gooseneck Dump

& Features

  • Gooseneck

    Gooseneck

    Gooseneck configuration for strength and stability.

  • 45 Degree Dump Angle

    45 Degree Dump Angle

    Steeper dump angles ensure cleaner dump outs.

  • Lockable Pump & Battery Box

    Lockable Pump & Battery Box

    This lockable box protects the battery and pump from damage and theft.

  • EZ Lube Hubs

    EZ Lube Hubs

    Making basic maintenance easier to keep up.

  • Top Wind Drop Leg Jack

    Top Wind Drop Leg Jack

    Overbuilt and easy to use, this jack provides ample lift and stability.

  • Dexter Brand Axles

    Dexter Brand Axles

    Dexter Axles outperform all others for strength and a smooth ride.

The 25DU also comes equipped with:

  • Square, Adjustable Crank 2-5/16" Gooseneck Coupler (30K)
  • Dual 12,000# Drop-Leg Jacks (Side Wind)
  • Lockable Pump & Battery Box Mounted Between Jacks
  • 48" Tall, 12 Gauge Sides w/Formed Channel Supports
  • 10 Gauge Steel Floor
  • Fully Formed Tarp Shroud on Front
  • J-Hooks on Sides & Rear for Tarp Control
  • Stakepockets Along Sides
  • Self Contained Electri/Hydraulic Scissor Hoist
  • Power Up/Gravity Down Hydraulic Pump
  • 12V Interstate Deep Cycle Battery
  • 110V On-Board Battery Charger (5 Amp)
  • Dexter Brand Axles
  • Cambered, Oil Bath Axles
  • nev-R-Adjust Electric Brakes on All Hubs
  • Grommet Mount Sealed Lighting
  • L.E.D. Lighting Package
  • Sealed, Modular Wiring Harness
  • Complete Break-A-Way System
  • Zip Breakaway Cable
  • 4" x 2" Rec. Tubing Top Rail on Dump Bed
  • Double Rear Doors
  • (4) 5/8" D-Rings Inside Bed to Secure Equipment
  • Mudflaps
  • Spare Tire Mount
  • Radial Tires
  • Spare Tire & Wheel - Standard Equipped

Optional Equipment

Category Description
AXLE 12,000# Axle Upgrade (GVWR Remains 25,900#)
BODY Removable Deck on the Neck- Bolt On (8 W x 6 L)
CARGO CONTROL Crank Style Roll Tarp
CARGO CONTROL Industrial Roll Tarp w/Side Flaps
COUPLER Pintle Hitch (Bumperpull) ILO Gooseneck (Single Jack)
JACK Dual 2-Speed Landing Gear
POWER 5 Watt Solar Charger
POWER Wireless Remote
RAMPS 8 Slide In Ramps
TIRE/WHEEL Tire Updgrade (ST215/75 R-17.5 LR-H Dual) Includes Spare
TIRE/WHEEL Tire Upgrade (ST235/85 R-16 LR-G Dual) Includes Spare


Big Tex Trailers reserves the right to change price, design, material and/or specifications without notice or obligation.
