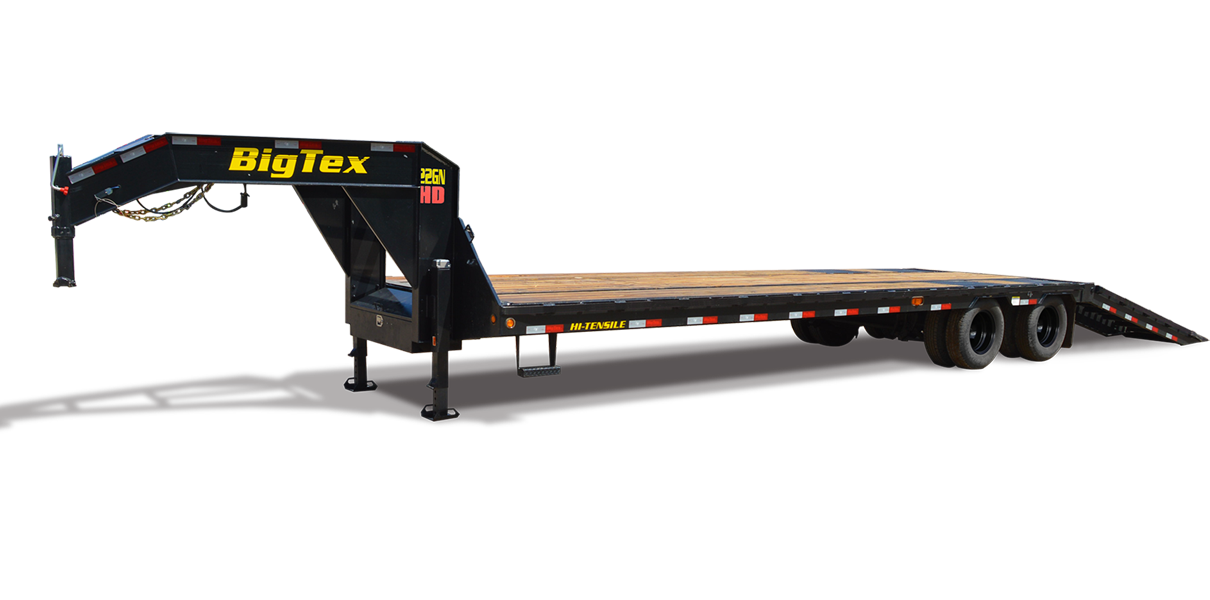

22GN-HDTS

Tandem Dual Axle Gooseneck Hydraulic Dovetail Trailer

The 22GN HD from Big Tex Trailers is simply the best value in Gooseneck flatbed trailers. This unit features a low profile pierced beam frame standard, LED lights, dual jacks, chain box, crank style adjustable coupler, and many other great features in addition to the Big Tex Exclusive HD Adjustable Suspension System. This trailer is great for hauling backhoes, dozers, tractors, hay, and many other applications.

Interested in purchasing this trailer?

Locate a 22GN-HDTS

Specs...

360°

AXLE (2) 10,000# Dual Wheel w/ Electric Brakes (Oil Bath)
JACK Dual 12,000# Drop Leg Jacks (Bolted On)
NECK 12" I-Beam, 16#
TIRE ST235/80 R-16 Load Range E Dual
FLOOR 2" Treated Pine or Douglas Fir*
FRAME 12" I-Beam, 19#
WHEEL 16" x 6"; Dual Wheel 8 Bolt
FINISH Superior Quality Finish is Applied for a Highly Decorative and Protective Finish.
LIGHTS L.E.D. D.O.T. Stop, Tail, Turn & Clearance
COUPLER 2-5/16" Ball Adj. Square Crank Type
G.V.W.R. 23,900#
TOP RAIL NONE
ELEC. PLUG 7-Way RV
HITCH TYPE Gooseneck
SIDE RAILS 6" Channel w/Rub Rail, Tie Down Pockets on 24" Centers, and Chain Spools
SUSPENSION Heavy Duty 30,000# Adjustable
CROSSMEMBERS 3" Channel
FINISH (Prep) Steel is Cleaned to Ensure a Professional Smooth Finish.
SAFETY CHAINS 3/8" Grd. 70 w/Safety Latch Hook (2 each)
G.A.W.R. (Ea. Axle) 10,000#

Models

Model Weight Description
22GN-35-HDTS 7,950# 102" x 35' (26' + 9') TD Gooseneck w/ Hydraulic Dovetail
22GN-40-HDTS 8,800# 102" x 40' (31' + 9') TD Gooseneck w/ Hydraulic Dovetail

& Features

  • Grommet Mount Sealed Lighting

    Grommet Mount Sealed Lighting

    Protected wiring, inside the framing or in protected channels, with access to junctures.

  • Oil Bath Hubs

    Oil Bath Hubs

    Oil bath hubs and cambered axles keep bearings evenly and completely lubricated.

  • Dexter Brand Axles

    Dexter Brand Axles

    Dexter Axles outperform all others for strength and a smooth ride.

  • L.E.D. Lighting Package

    L.E.D. Lighting Package

    LED lighting is brighter and lasts longer.

  • Lockable Side Mount Tool Box Housing Power Unit

    Lockable Side Mount Tool Box Housing Power Unit

    This lockable box protects the battery and pump from damage and theft.

  • Radial Tires

    Radial Tires

    Flexible sidewalls result in reduced fuel consumption and produce a softer ride.

The 22GN-HDTS also comes equipped with:

  • 9 Hydraulic Dovetail
  • Diamond Plate Knife Edge on Rear
  • Cleated Dovetail w/ Wood Between Runners
  • Collaspible Rear Bumper
  • Innovative Sled-Design Locking/Lifting System
  • Lockable Side Mount Tool Box Housing Power Unit
  • 2-5/16" Ball Adjustable Coupler- Square Crank Type
  • Dual 12,000# Drop Leg Jacks (Bolted on) w/Greasable Handle
  • 102" Overall Width
  • Low Profile Bed, Pierced- Beam Frame
  • Lockable Toolbox Between GN Uprights
  • (2) Side Bed Steps & Handles
  • 3/8" Heavy Duty Rub Rail
  • Tie Down Pockets Along Sides, 24" On Center
  • 1-1/4" Pipe Chain Spools Between Tie Down Pockets
  • Dexter Brand Axles
  • Oil Bath Hubs
  • Forward Self Adjusting Brakes
  • Heavy Duty 30,000# Adjustable Suspension by Dexter Axle
  • Torgue Tube- Standard Equipped
  • Cambered Axles
  • Grommet Mount Sealed Lighting
  • L.E.D. Lighting Package
  • Modular Sealed Wiring Harness
  • Spare Tire Mount (Top of Neck)
  • Complete Break-A-Way System w/Charger
  • Radial Tires
  • Spare Tire & Wheel-Standard Equipped
  • Dovetail Lifting Capacity Approx. 8,000#
  • Dovetail Carrying Capacity Approx. 8,000# (From Middle of Dovetail, Forward)

Optional Equipment

Category Description
BODY Blackwood Rubber Infused Floor
BODY Removable Deck on the Neck- Bolt On (8 W x 6 L)
BRAKES Electric Over Hydraulic Brakes (Disc)
BRAKES Electric Over Hydraulic Brakes (Drums)
CARGO CONTROL 4" Sliding Winch
CARGO CONTROL 4" Weld-On Winch
CARGO CONTROL 4" x 30 Strap
CARGO CONTROL B 40 5/8" D-Ring
CARGO CONTROL Low Profile Tool Box 12" x 18" x 36" (Side Mount)
CARGO CONTROL Sliding Winch Track (Per 6 Section)
JACK Dual 2-Speed Landing Gear
JACK Dual Electric Over Hydraulic Jacks by Stillwell
POWER 5 Watt Solar Charger
POWER Wireless Remote for Power Unit
TIRE/WHEEL Spare Tire Upgrade (ST235/85 R-16 LR-G Dual)
TIRE/WHEEL Tire Upgrade (ST235/85 R-16 LR-G Dual)
