14OD

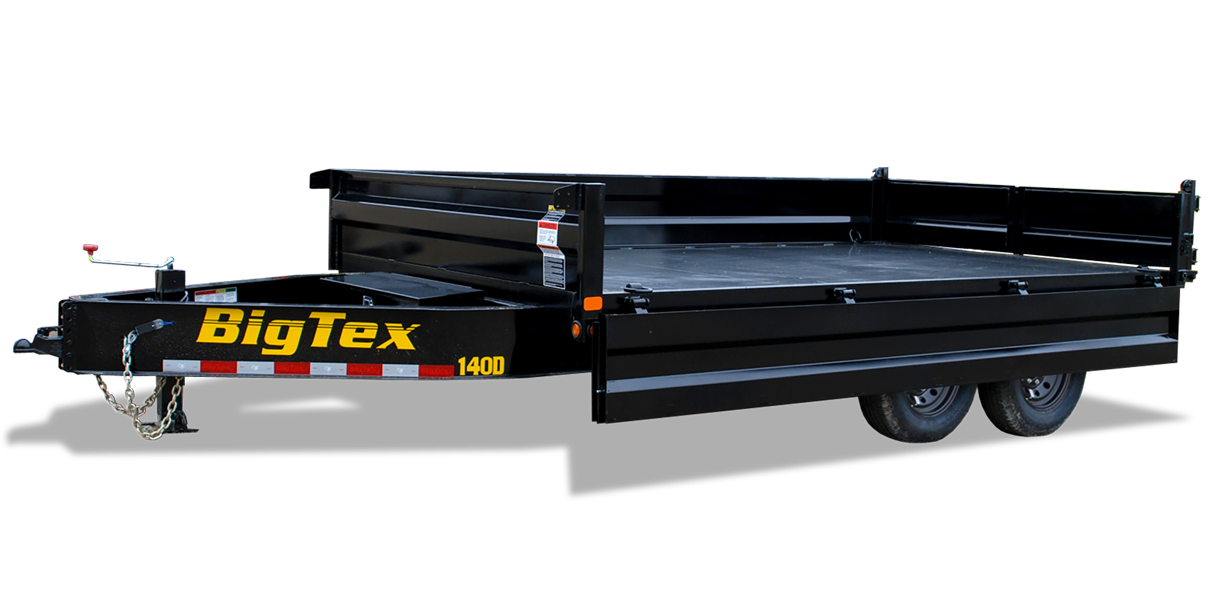

Over-The-Axle Dump Trailer

Versatility is the key theme for the 14OD Tandem Over-The-Axle Dump Trailer. Available in either gooseneck or bumper pull configurations, the full 96"-wide body offers the benefits of a rear dump action, along with the easy loading and unloaded afforded by drop down 18-inch 10-gauge fold-down sides.

Interested in purchasing this trailer?

Locate a 14OD

14OD

Specs...

AXLE (2) 7,000# Quick Lubricating w/Elec. Brakes
JACK 12,000# Top Wind Drop Leg
TIRE ST235/80 R-16 Load Range E
FLOOR 10 Gauge Smooth Steel
FRAME 12" I-Beam, 14#
WHEEL 16" x 6" Black Mod 8 Bolt
FINISH Superior Quality Finish is Applied for a Highly Decorative and Protective Finish.
LIGHTS L.E.D. D.O.T. Stop, Tail, Turn & Clearance
TONGUE Integral with Frame (12" I-Beam, 14#)
COUPLER Adj. 2-5/16" 18,000# Demco EZ Latch
G.V.W.R. 14,000#
ELEC. PLUG 7-Way RV
HITCH TYPE Bumper Pull
SUSPENSION Multi-Leaf Spring w/Equalizer
FINISH (Prep) Steel is Cleaned to Ensure a Professional Smooth Finish.
SAFETY CHAINS 3/8" Grd. 70 w/Safety Latch Hook (2 each)
DUMP BODY SIDES 18" Tall, Drop-Down Sides (12 Gauge)
BED CROSSMEMBERS 3" Channel, 16" Centers
DUMP BODY TOP RAIL 2" x 2" Square Tubing
G.A.W.R. (Ea. Axle) 7,000#

Models

Model Weight Description
14OD-14 4,550# 96" x 14' Over the Axle Bumper Pull Dump

& Features

  • Gooseneck

    Gooseneck

    Gooseneck configuration for strength and stability.

  • 45 Degree Dump Angle

    45 Degree Dump Angle

    Steeper dump angles ensure cleaner dump outs.

  • Lockable Pump & Battery Box

    Lockable Pump & Battery Box

    This lockable box protects the battery and pump from damage and theft.

  • Quick Lubricating Hubs

    Quick Lubricating Hubs

    Making basic maintenance easier to keep up.

  • Top Wind Drop Leg Jack

    Top Wind Drop Leg Jack

    Overbuilt and easy to use, this jack provides ample lift and stability.

  • Premium Brand Axles

    Premium Brand Axles

    Industry-leading axles with a smooth, reliable ride.

The 14OD also comes equipped with:

  • Adjustable 2-5/16" Demco EZ Latch Coupler
  • 12,000# Top Wind Drop-Leg Jack
  • Lockable Pump & Battery Box Mounted in Front of Bed
  • 18" Tall, 12 Gauge Fold-Down Side Panels
  • 10 Gauge Steel Floor
  • Fully Formed Tarp Shroud on Front
  • Crank Style Roll Tarp- Standard Equipped
  • J-Hooks on Sides & Rear for Tarp Control
  • Self Contained Electric/Hydraulic Scissor Hoist
  • Power Up/Power Down Hydraulic Pump
  • 12V Interstate Deep Cycle Battery
  • 110V On-Board Battery Charger (5 Amp)
  • Premium Brand Axles
  • Cambered Axles w/Quick Lubricating Hubs
  • Forward Self Adjusting Electric Brakes on All Hubs
  • Grommet Mount Sealed Lighting
  • L.E.D. Lighting Package
  • Sealed, Modular Wiring Harness
  • Complete Break-A-Way System
  • Zip Breakaway Cable
  • 2" Square Tubing top Rail on Dump Bed
  • Combo Gate (Barn Doors & Spreader Gate)
  • (4) 1/2" D-Rings Inside Bed to Secure Equipment
  • 7 Rear Slide-In Ramps - Standard Equipped
  • Spare Tire Mount
  • Radial Tires

Optional Equipment

Category Description
JACK 12,000# Elec/Hyd. Jack BY Stillwell
JACKS Dual Elec/Hyd 12,000# Jacks by Stillwell
POWER 5 Watt Solar Charger
POWER Wireless Remote
TIRE/WHEEL Spare Tire (ST235/80 R-16 LR-E)
TIRE/WHEEL Spare Tire Upgrade (ST235/85 R-16 LR-G)
TIRE/WHEEL Tire Upgrade (ST235/85 R-16 LR-G)

Interested in purchasing this trailer?

Locate a 14OD

Big Tex Trailers reserves the right to change price, design, material and/or specifications without notice or obligation.
