10PI

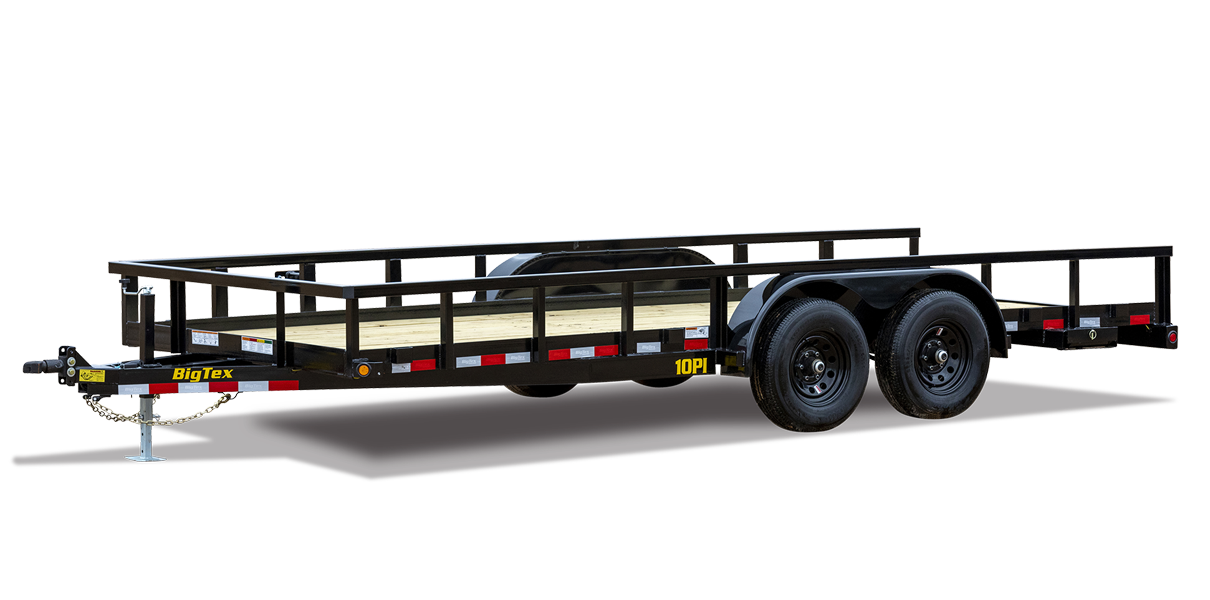

Pro Series Tandem Axle Pipe Top Utility Trailer

The 10PI Tandem Axle Pipe Top Utility Trailer from Big Tex is perfect for hauling light- to medium-duty equipment and small tractors. Slide-in ramps allow for easy loading and unloading of equipment.

Interested in purchasing this trailer?

Locate a 10PI

Specs...

360°

AXLE (2) 5,200# EZ Lube w/Electric Brakes
JACK 8,000# Drop Leg (Bolted On)
TIRE ST225/75 R-15 Load Range D
FLOOR 2" Treated Pine or Douglas Fir*
FRAME 5" x 3" x 1/4" Angle
SIDES 16" Tall - 3" x 2" x 3/16" Angle
WHEEL 15" x 6"; Black Spoke 6 Bolt
FINISH Superior Quality Finish is Applied for a Highly Decorative and Protective Finish.
LiGHTS L.E.D. D.O.T. Stop, Tail, Turn & Clearance
TONGUE 5" Channel Fold Back/Wrap
COUPLER Adjustable,Forged 2-5/16"
FENDERS 9" x 72" Teardrop, Smooth w/Back
G.V.W.R. 9,990#
TOP RAIL 2-7/8" Pipe Square Back
ELEC. PLUG 7-Way RV
HITCH TYPE Bumper Pull
SUSPENSION Multi-Leaf Spring w/Equalizer
CROSSMEMBERS 3" x 2" x 3/16" Angle
FINISH (Prep) Steel is Cleaned to Ensure a Professional Smooth Finish.
SAFETY CHAINS 1/4" Grd. 70 w/Safety Latch Hook (2 each)
G.A.W.R. (Ea. Axle) 5,080#

Models

Model Weight Description
10PI-14 2,200# 83" x 14' Pro Series Tandem Axle Pipe Top Utility Trailer
10PI-16 2,260# 83" x 16' Pro Series Tandem Axle Pipe Top Utility Trailer
10PI-18 2,320# 83" x 18' Pro Series Tandem Axle Pipe Top Utility Trailer
10PI-20 2,380# 83" x 20' Pro Series Tandem Axle Pipe Top Utility Trailer

& Features

  • Dexter Brand Axles

    Dexter Brand Axles

    Dexter Axles outperform all others for strength and a smooth ride.

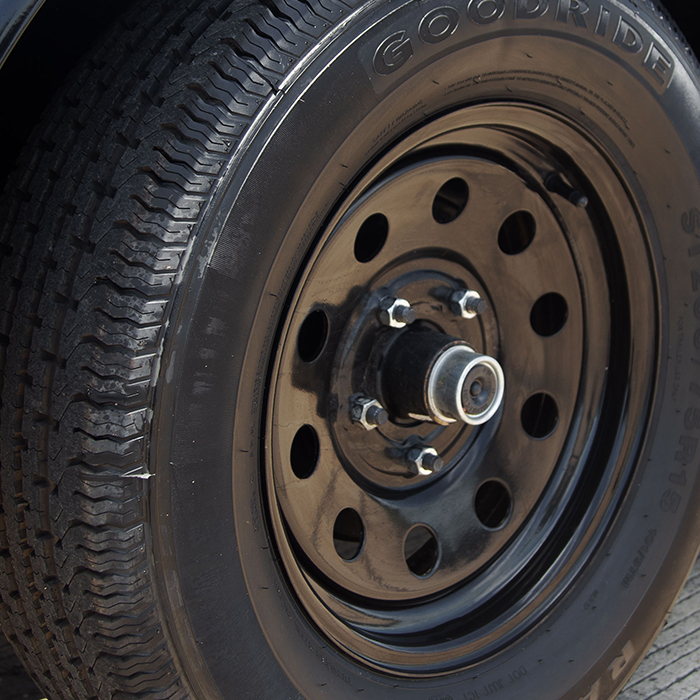

  • EZ Lube Hubs

    EZ Lube Hubs

    EZ Lube hubs are simple to maintain and completely submersible with no disassembly required.

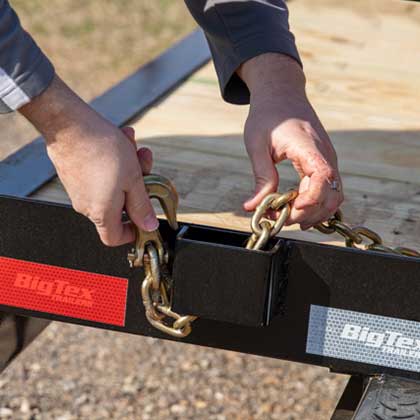

  • (4) Tie Down Pockets on Outside Frame

    (4) Tie Down Pockets on Outside Frame

    Integrated loops for convenience ensuring a secure load.

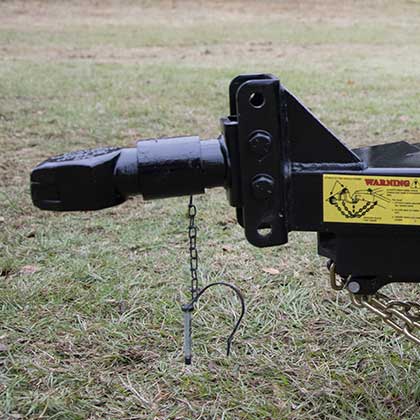

  • Forged 2-5/16" Coupler

    Forged 2-5/16" Coupler

    Built for durability and a secure connection to tow vehicle.

  • Nev-R-Adjust Electric Brakes on All Hubs

    Nev-R-Adjust Electric Brakes on All Hubs

    Nev-R-Adjust Brakes ensure safety and automatically adjust to proper clearances during travel.

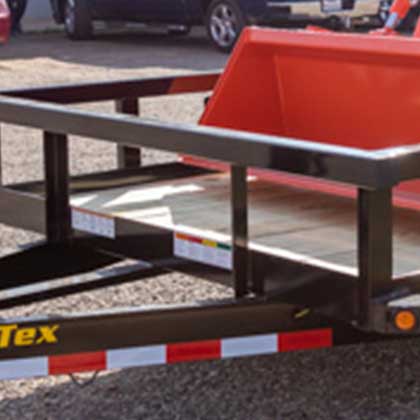

  • Pipe Top Rail

    Pipe Top Rail

    A sturdy top rail stands up to abuse.

The 10PI also comes equipped with:

  • (4) Tie Down Pockets on Outside Frame
  • Adjustable, Forged 2-5/16" Coupler in Channel
  • Fold Back/Wrap Tongue (14 & Longer)
  • Set-Back, 8,000# Drop Leg Jack
  • EZ Lube Hubs
  • Dexter Brand Axles
  • Nev-R-Adjust Electric Brakes on All Hubs
  • Cambered Axles
  • Tear Drop Style Fenders
  • 2-7/8" Pipe Top Rail
  • Grommet Mount Sealed Lighting
  • L.E.D. Lighting Package
  • Protected Wiring
  • Spare Tire Mount (Side)

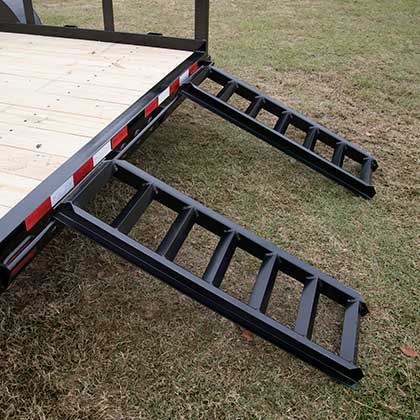

  • 4 Slide-In Ramps (Channel)
  • Complete Break-A-Way System w/Charger

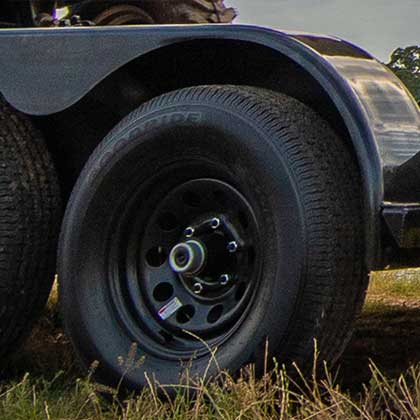

  • Radial Tres

Optional Equipment

Category Description
BODY 1/8" Diamond Plate Steel Floor
BODY 2 High Sides (Open)
BODY 3 High Sides (Open)
BODY 4 High Sides (Open)
BODY Blackwood Rubber Infused Floor
BODY Enclose Sides w/ Expanded Metal
BODY Enclose Sides w/ Sheet Metal
BRAKES Hydraulic Surge Brakes 2 Axles w/Adjustable Demco Actuator
CARGO CONTROL Additional Tie Down Pockets
CARGO CONTROL B40 5/8" D-Ring
CARGO CONTROL Bolt-On Landscape Box- Extra Wide (24" x 24" x 87")
COUPLER Adjustable 2-5/16" Stamped Coupler in Channel
COUPLER Adjustable Pintle in Channel
JACK 12,000# Drop Leg Jack - Side Wind Against Bed
JACK 12,000# Drop Leg Jack - Top Wind
RAMPS 4 Heavy Duty Integrated Ramp Gate w/Gas Shock Assist in Lieu of Ramps
RAMPS 4 Tall Rear Rampgate in Lieu of Slide-In Ramps
RAMPS 5 Heavy Duty Integrated Ramp Gate w/Gas Shock Assist in Lieu of Ramps (Split Gate)
RAMPS 5 Stand Up Ramps in Lieu of Slide-In Ramps
RAMPS 5 Tall Rear Rampgate in Lieu of Slide-In Ramps
RAMPS Gas Shock Assist Option for Rampgate
TIRE/WHEEL Spare Tire (ST225/75 R-15 LR-D)
TIRE/WHEEL Spare Tire Upgrade (ST235/80 R-16 LR-E)
TIRE/WHEEL Tire Upgrade (ST235/80 R-16 LR-E) - Raises Side Rails by 2"
