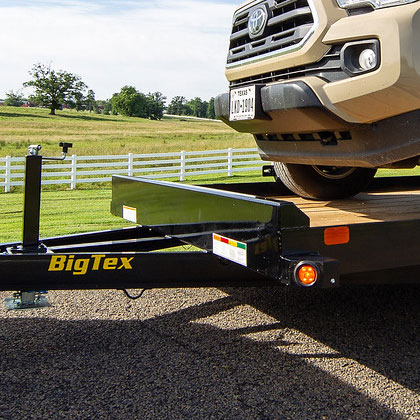

Fabricated Front Stop Rail
Stop Rail provides endurance and a sleek design.
| AXLE | (2) 5,200# EZ Lube w/ Electric Brakes |
|---|---|
| JACK | 8,000# Drop Leg - Top Wind (Bolted on) |
| TIRE | ST225/75R-15 Load Range D |
| FLOOR | 2" Treated Pine or Douglas Fir* |
| FRAME | 6" x 3.5" x 5/16" Angle |
| SIDES | None |
| WHEEL | 15" x 6"; Black Mod, 6 Bolt |
| FINISH | Superior Quality Finish is Applied for a Highly Decorative and Protective Finish |
| LIGHTS | L.E.D. D.O.T. Stop, Tail, Turn & Clearance |
| TONGUE | 5" Channel Fold Back/Wrap Tongue |
| COUPLER | Adjustable Forged 2-5/16" |
| FENDERS | 9" x 72" Tear Drop w/Back |
|---|---|
| G.V.W.R. | 9,990# |
| TOP RAIL | 3/16" Fabricated Front Stop Rail |
| ELEC. PLUG | 7-Way RV |
| HITCH TYPE | Bumper Pull |
| SUSPENSION | Multi-Leaf Spring w/ Equalizer |
| CROSSMEMBERS | 3" x 2" x 3/16" Angle |
| FINISH (Prep) | Steel is Cleaned to Ensure a Professional, Smooth Finish |
| SAFETY CHAINS | 1/4" Grd. 70 w/ Safety Latch Hook (2 each) |
| G.A.W.R. (Ea. Axle) | 5,080# |
| Model | Weight | Description |
|---|---|---|
| 10CH-16 | 1,970# | 83" x 16' Pro Series Tandem Axle Car Hauler |
| 10CH-18 | 2,125# | 83" x 18' Pro Series Tandem Axle Car Hauler |
| 10CH-20 | 2,280# | 83" x 20' Pro Series Tandem Axle Car Hauler |
Stop Rail provides endurance and a sleek design.
LED lighting is brighter and lasts longer.

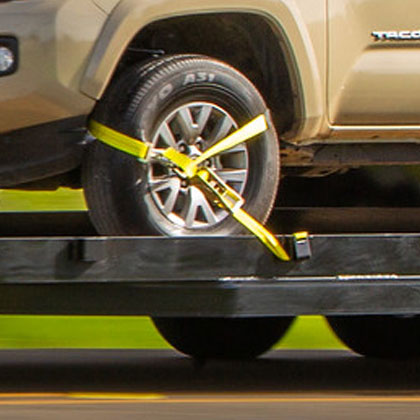

Coated anchor slides help to keep every haul in place and secure.

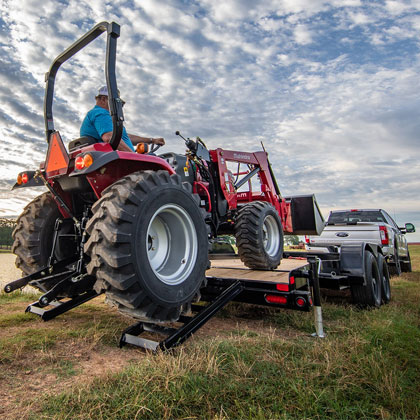

Optional Dovetail makes loading and unloading cargo even easier.
EZ Lube hubs are simple to maintain and completely submersible with no disassembly required.
Dexter Axles outperform all others for strength and a smooth ride.
Big Tex Trailers reserves the right to change price, design, material and/or specifications without notice or obligation.
| Category | Description |
|---|---|
| BODY | 1/8" Diamond Plate Steel Floor |
| BODY | Blackwood Rubber Infused Floor |
| BODY | Dovetail in Existing Length |
| BODY | Front Rockshield (Aluminum Tread Brite) |
| BODY | Raised Car Hauler Floor (Wood Flush w/ Frame) |
| BRAKES | Hydraulic Surge Brakes 2 Axles w/ Adjustable Demco Actuator |
| CARGO CONTROL | Additional Stake Pockets |
| COUPLER | Adjustable 2-5/16" Stamped Coupler in Channel |
| COUPLER | Adjustable Pintle in Channel |
| JACK | 12,000# Drop Leg Jack - Side Wind Against Bed |
| JACK | 12,000# Drop Leg Jack - Top Wind |
| RAMPS | 5 Stand Up Ramps in Lieu of Slide-In Ramps |
| TIRE/WHEEL | Spare Tire (ST225/75 R-15 LR-D) |
| TIRE/WHEEL | Spare Tire Upgrade (ST235/80 R-16 LR-E) |
| TIRE/WHEEL | Tire Upgrade (ST235/80 R-16 LR-E - black Mod) Special Order |
