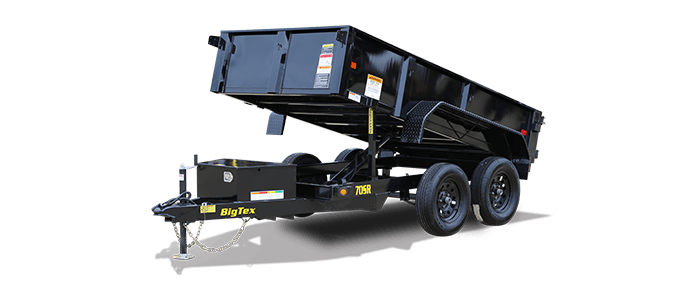

70SR
Tandem Axle Single Ram Dump

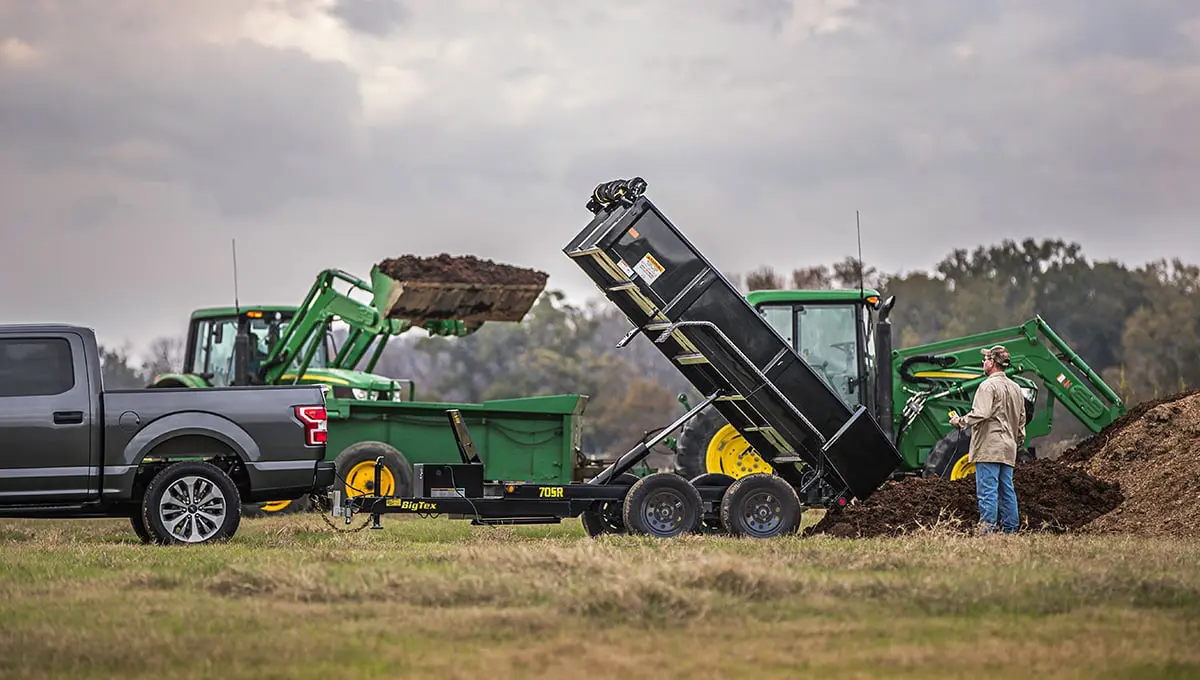

For those who need a light-duty trailer that has more power to tackle unpredictable tasks, the 70SR Tandem Axle Single Ram Dump Trailer is built for you. Haul and dump mulch, dirt, gravel, and other light loads with confidence around the home or farm with this durable and reliable trailer. Equipped with a lockable battery box and straight ram hydraulic lifting system, the 70SR offers a secure and versatile experience that’s designed to meet the needs of hardworking homeowners, industrious farmers, and ambitious go-getters—someone just like you.
With you for the long haul

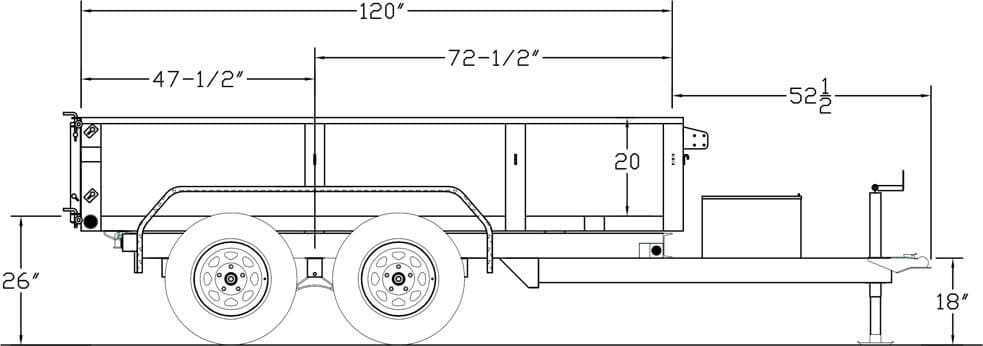

Model | Pull Type | GVWR | GAWR (Ea. Axle) | Empty Weight | Cargo Capacity | Bed Length | Bed Width | A | B | C | Tongue Length |
---|---|---|---|---|---|---|---|---|---|---|---|
70SR-10-5WDD | Bumperpull | 7000 lbs | 3500 lbs | 1730 lbs | 5270 lbs | 10' | 60" | 120 | 72-1/2" | 47-1/2" | 52-1/2" |
Standard Feature | Available Options | |
---|---|---|
Axles | 2 - 3,500# Premium, Cambered Axles with Quick-Lubricating Hubs | |
Brakes | Forward Self-Adjusting Electric Brakes | |
Suspension | Multi-Leaf Slipper Spring w/ Equalizer | |
Tongue | 5" Channel | |
Coupler | 2-5/16” Stamped A-Frame | |
Safety Chains | 1/4” Grd. 70 w/Safety Latch Hook (2 each) | |
Jack | 2,000# Top Wind | |
Frame | 5" Channel | |
Cross-Members | 2" Channel, 17" Centers | |
Floor | 16 Gauge Smooth Steel | |
Fenders | 9” x 72” 14 Ga. Roll Formed | |
Stake Pockets | Stake Pockets Along Both Sides (Quantity Varies by Length) | |
Trailer Plug | 7-Way RV | |
Lights | Recessed, Grommet-Mounted L.E.D. Lighting | |
Wiring | Sealed, Modular Cold-Weather Wiring Harness | |
Tires | ST205/75 R-15 Load Range C | |
Bolt Pattern | 5-Lug | |
Wheels | Black Mod Steel | |
Spare Tire | Not Included | Spare Tire (ST205/75R-15 LR-C) |
Paint Type | Professional Finish w/ Primer Standard | |
Paint Color | Black | |
Tie-Downs | Along Sides and Rear for Cargo Control | |
Break-Away Kit | Complete System with Breakaway Cable | |
Battery | 12V Deep Cycle | |
Charger | 5A 110V on Board Battery Charger | |
Gate | Double Rear Doors | |
J-Hooks | Along sides and rear for Cargo Control | |

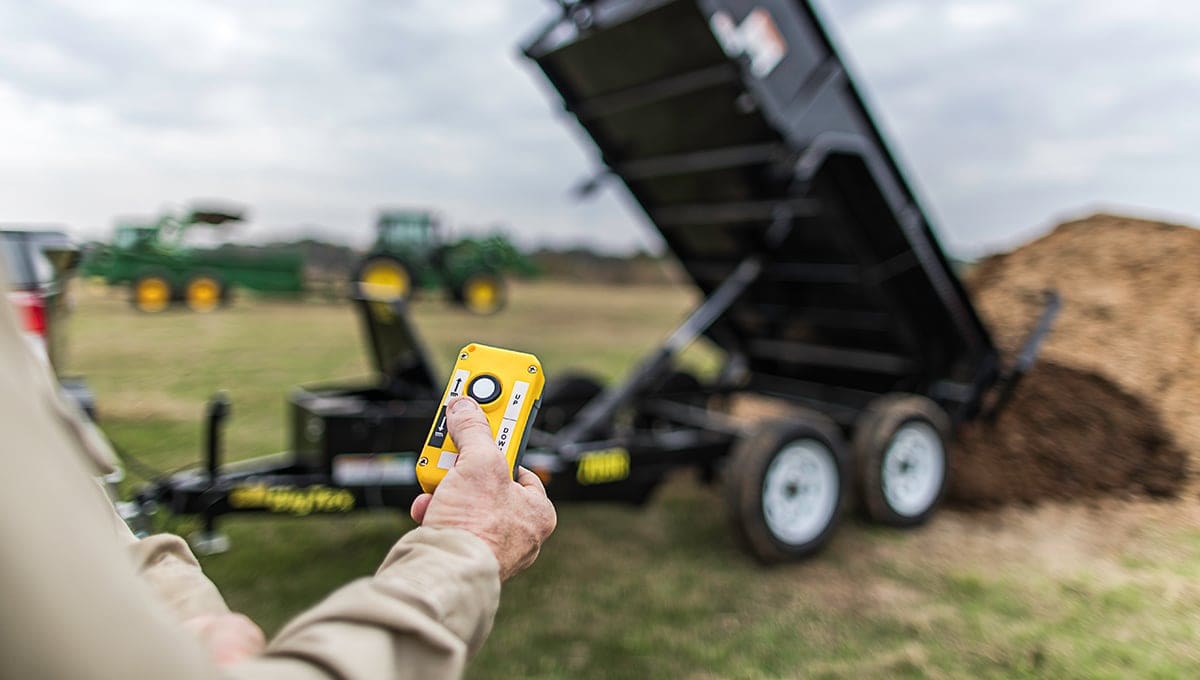

Power | Power Up/Power Down & Gravity Down Hydraulic Pump | |
Ram | Self-Contained Single Cylinder Lift | |
Sides | 20" Tall Sides (16-Gauge) | |
Storage | Lockable Pump and Battery Box mounted in Front of Bed | |
Tarp | Not Included | Crank Style Roll Tarp |
Top Rail | 2" x 2" Square Tubing |
WARNING: This product can expose you to chemicals including Arsenic (inorganic arsenic compounds) which is known to the State of California to cause cancer and Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
