Trailers / Dump Trailers / Compact Dump Trailers

50SR 50SR

50SR

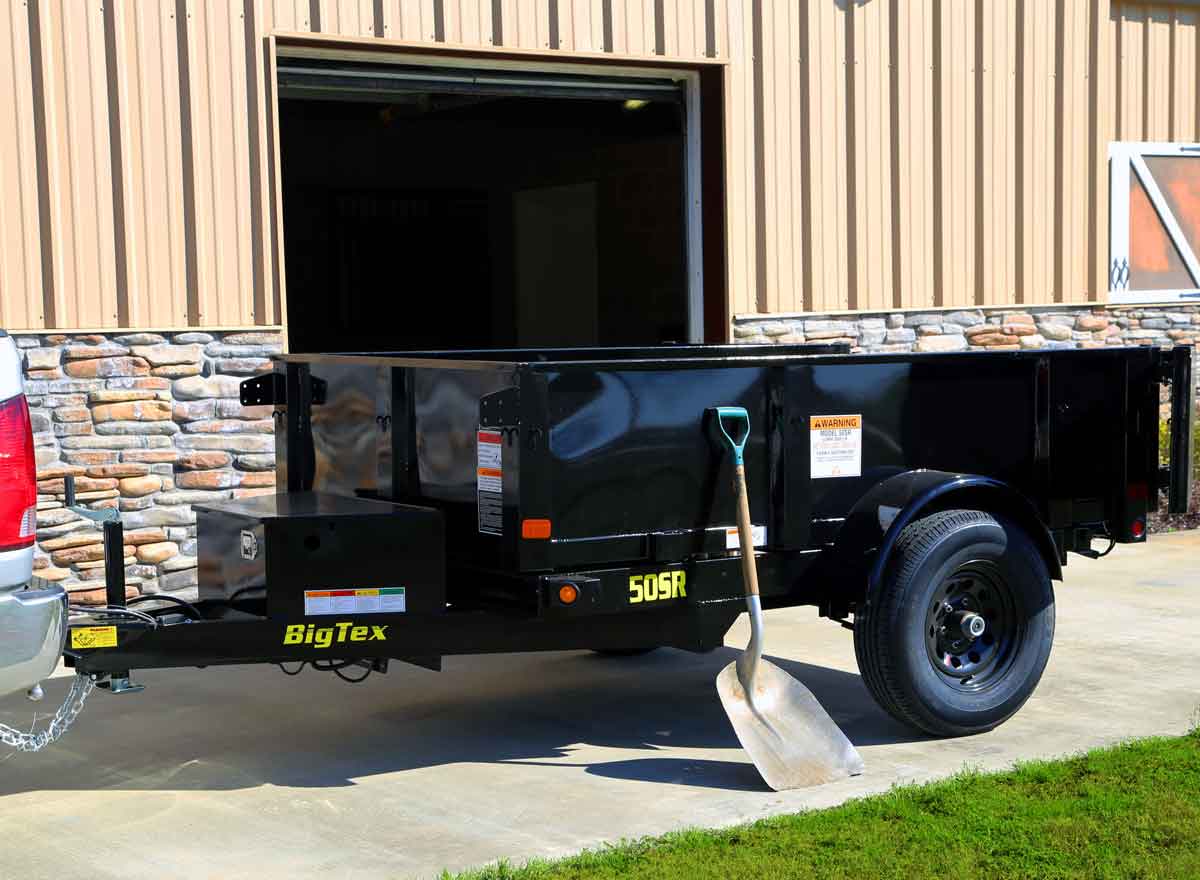

Single Axle Single Ram Dump

Don’t underestimate the small yet mighty 50SR Single Axle Single Ram Dump Trailer, a light-duty trailer built to haul mulch, dirt, and gravel for homeowners, farmers, and small-scale commercial purposes. An entry-level dump trailer offering ease-of-use and accessibility, the 50SR features a compact size that’s designed to get in and around tight spaces to effectively transport and dump lighter loads. And with premium brand axles and forward self-adjusting electric brakes, it’s packed with the same conveniences that bigger trailers have. In other words, never judge a trailer by its size.

50SR

Single Axle Single Ram Dump

Don’t underestimate the small yet mighty 50SR Single Axle Single Ram Dump Trailer, a light-duty trailer built to haul mulch, dirt, and gravel for homeowners, farmers, and small-scale commercial purposes. An entry-level dump trailer offering ease-of-use and accessibility, the 50SR features a compact size that’s designed to get in and around tight spaces to effectively transport and dump lighter loads. And with premium brand axles and forward self-adjusting electric brakes, it’s packed with the same conveniences that bigger trailers have. In other words, never judge a trailer by its size.

50SR 50SR

Model Pull Type GVWR Empty Weight Cargo Capacity Bed Length Bed Width A B C Tongue Length
50SR-08-5WDD Bumperpull 5000 lbs 1680 lbs 2.5 Cu Yards lbs 8' 60" 120 71-1/2" 48-1/2" 47-5/8"

Standard Feature Available Options
Axles 1 - 5,200# Premium, Cambered Axles with Quick-Lubricating Hubs
Brakes Forward Self-Adjusting Electric Brakes
Suspension Multi-Leaf Slipper Spring w/ Equalizer
Tongue 5" Channel
Coupler 2-5/16” Stamped A-Frame
Safety Chains 1/4” Grd. 70 w/Safety Latch Hook (2 each)
Jack 2,000# Top Wind
Frame 5" Channel
Cross-Members 2" Channel, 17" Centers
Floor 16 Gauge Smooth Steel
Fenders 9” x 36” 16 Ga. Roll Formed
Stake Pockets Stake Pockets Along Both Sides (Quantity Varies by Length)
Trailer Plug 7-Way RV
Lights Recessed, Grommet-Mounted L.E.D. Lighting
Wiring Sealed, Modular Cold-Weather Wiring Harness
Tires ST225/75 R-15 Load Range D Radial Tires
Bolt Pattern 6-Lug
Spare Tire Not Included Spare Tire Upgrade (ST225/75R-15 LR-D)
Paint Type Professional Finish w/ Primer Standard
Paint Color Black Red Grey White Desert Tan Jet Blue Slime Green Implement Green Equipment Orange Medium Yellow
Tie-Downs Along Sides and Rear for Cargo Control
Break-Away Kit Complete System with Breakaway Cable
Battery 12V Deep Cycle
Charger 5A 110V on Board Battery Charger
Power Power Up/Power Down Movement
Ram Self-Contained Single Cylinder Lift
Sides 20" Tall Sides (16-Gauge)
Storage Lockable Pump and Battery Box mounted in Front of Bed
Tarp Not Included Crank Style Roll Tarp
Top Rail 2" x 2" Square Tubing

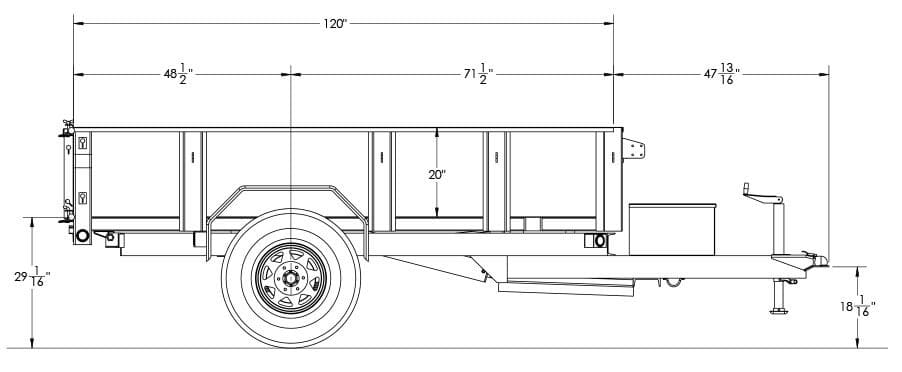

https://www.bigtextrailers.com/wp-content/uploads/2023/07/50sr_specdiagram.jpg
