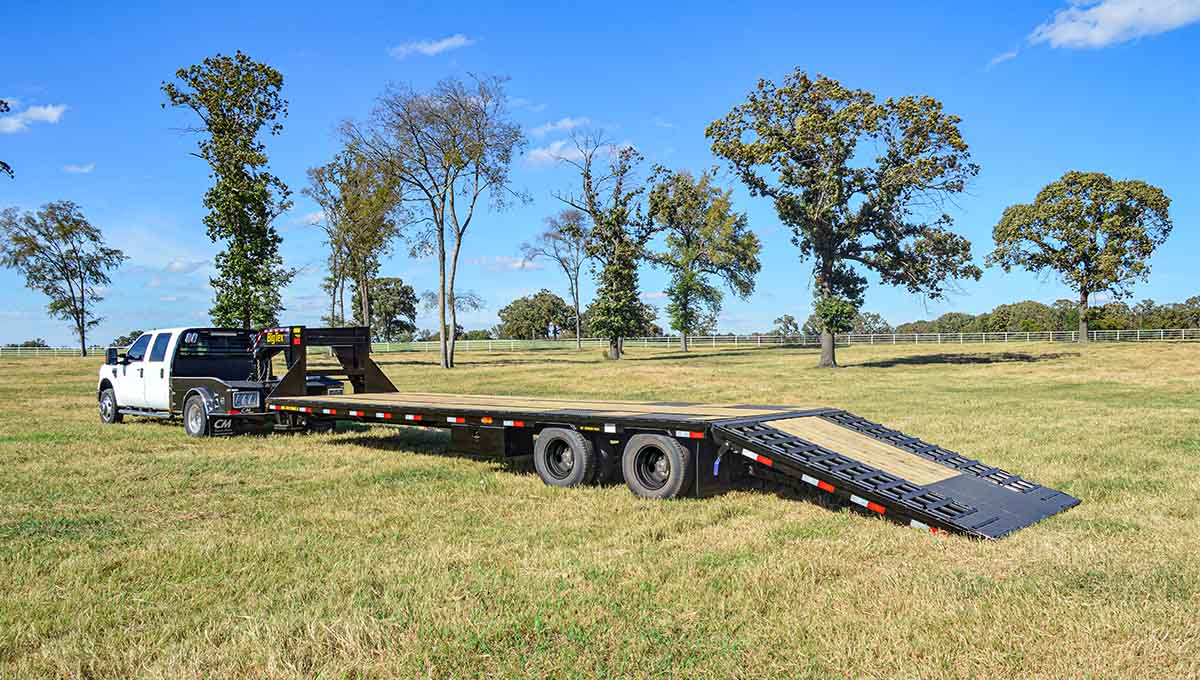

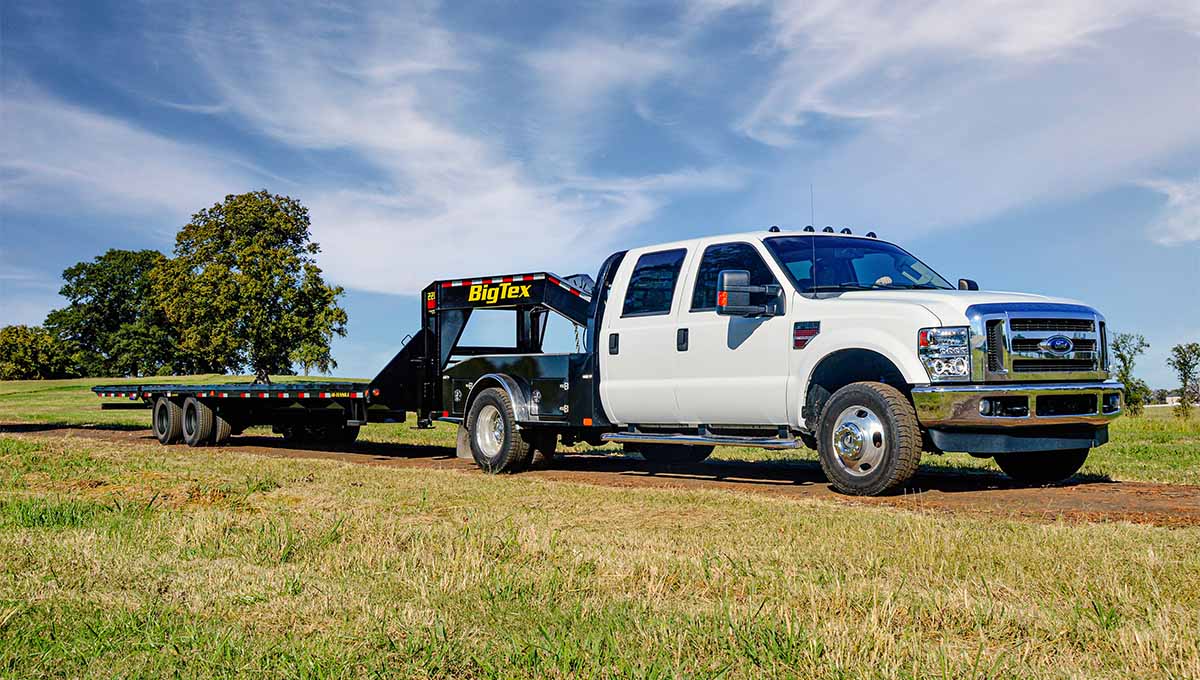

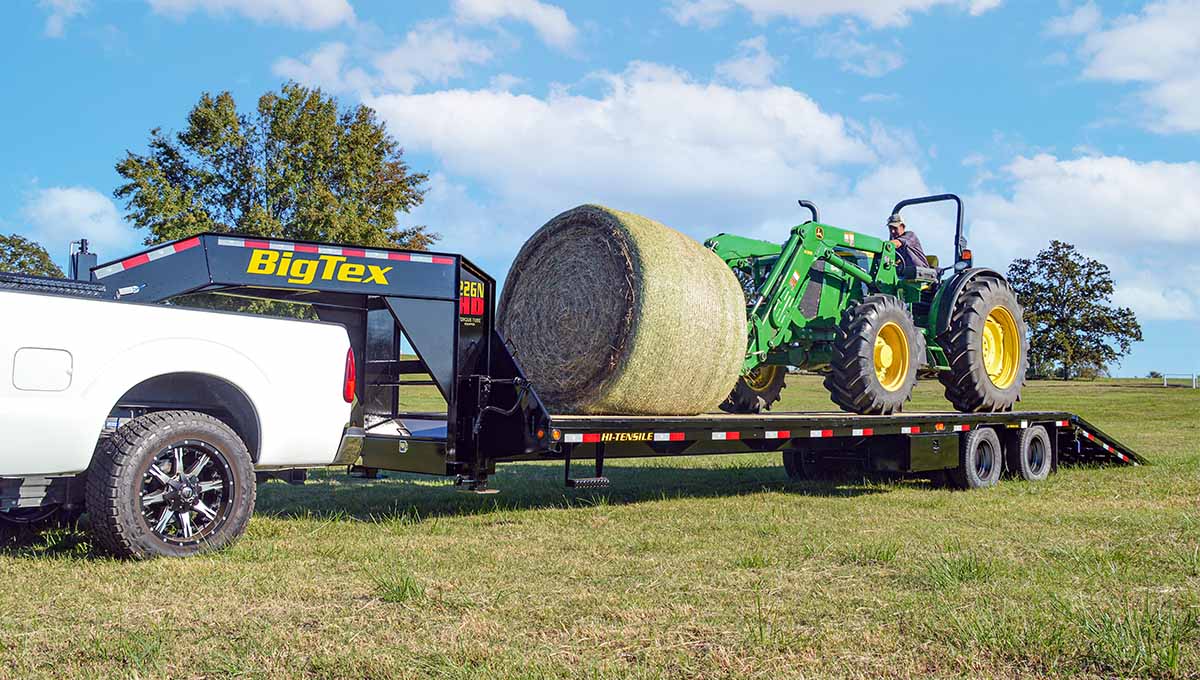

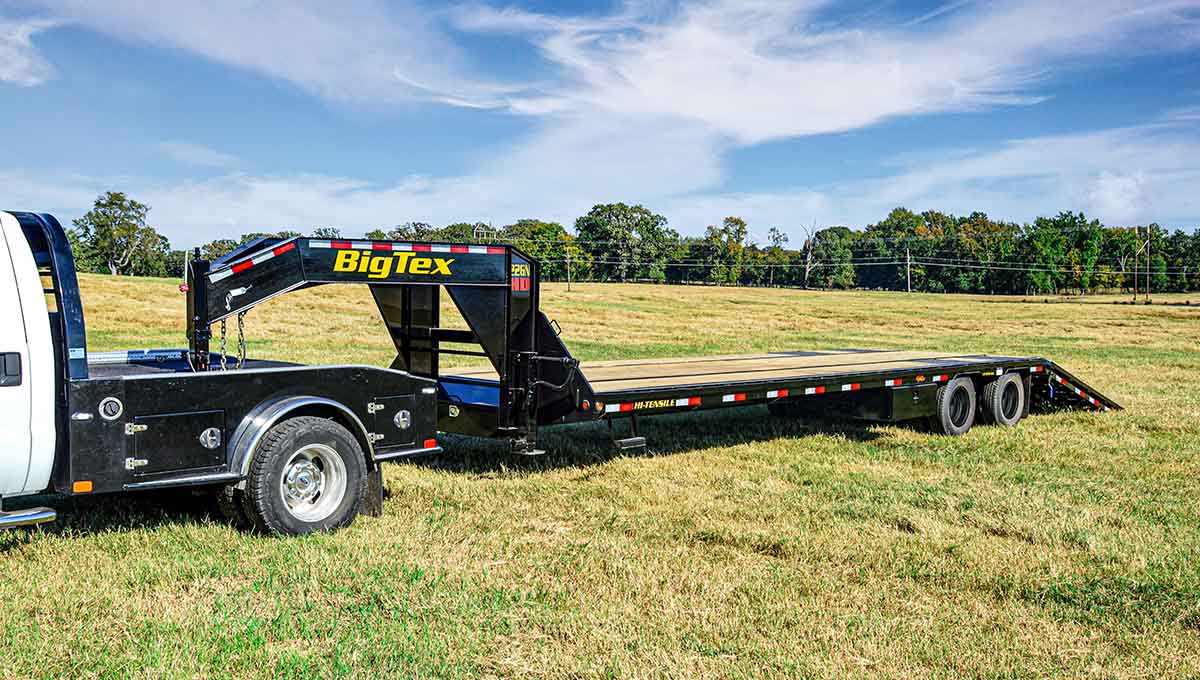

22GN-HDTS
Tandem Dual Wheel Gooseneck w/ Hydraulic Dovetail
Offering an incredible bang for buck, the 22GN-HDTS Tandem Dual Axle Gooseneck Hydraulic Dovetail Trailer delivers the best value for those who take on heavy equipment hauls in challenging conditions. And it handles tough situations in construction and industrial operations because of its low-profile pierced beam frame, dual drop leg jacks, crank-style adjustable coupler, and exclusive heavy-duty adjustable suspension system. Backhoes, dozers, or tractors, the 22GN-HDTS is strong enough and durable enough to haul the heaviest equipment. It’s time to make an investment in your operation that you won’t regret.
22GN-HDTS
Tandem Dual Wheel Gooseneck w/ Hydraulic Dovetail
Offering an incredible bang for buck, the 22GN-HDTS Tandem Dual Axle Gooseneck Hydraulic Dovetail Trailer delivers the best value for those who take on heavy equipment hauls in challenging conditions. And it handles tough situations in construction and industrial operations because of its low-profile pierced beam frame, dual drop leg jacks, crank-style adjustable coupler, and exclusive heavy-duty adjustable suspension system. Backhoes, dozers, or tractors, the 22GN-HDTS is strong enough and durable enough to haul the heaviest equipment. It’s time to make an investment in your operation that you won’t regret.

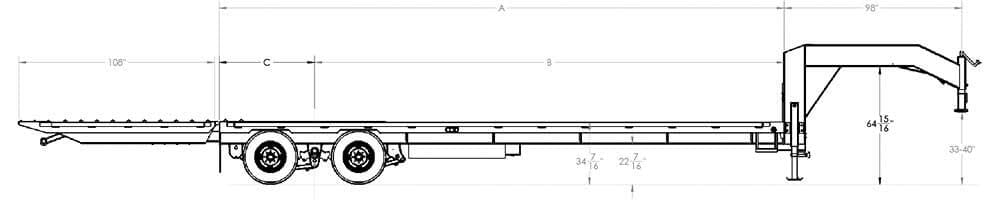

| Model | Pull Type | GVWR | Empty Weight | Cargo Capacity | Bed Length | Bed Width | A | B | C | Tongue Length |
|---|---|---|---|---|---|---|---|---|---|---|
| 22GN-40-HDTS | Gooseneck | 23900 lbs | 8800 lbs | 15100 lbs | 40' | 102" | 480" | 319" | 161" | 98" |
| 22GN-35-HDTS | Gooseneck | 23900 lbs | 7950 lbs | 15950 lbs | 35' | 102" | 420" | 259" | 161" | 98" |
| Standard Feature | Available Options | |
|---|---|---|
| Axles | 2 - 10,000# Dual Wheel w/ Oil Bath & Valcrum Caps | |
| Brakes | Forward Self-Adjusting Electric Brakes on Both Axles | Electric Over Hydraulic Brakes (Disc) Electric Over Hydraulic Brakes (Drum) |
| Suspension | Heavy-Duty 30,000#, Adjustable | |
| Coupler | 2-5/16” Ball, Adjustable Square Crank | |
| Safety Chains | 3/8" Grade 70 w/ Safety Latch Hook (2 ea) | |
| Jack | Dual 12,000# Drop Leg Jacks (Bolted on) w/Greasable Handle | Dual 2-Speed Landing Gear Dual Electric Over Hydraulic Landing Gear by Stillwell™ |
| Frame | 12" I-Beam, 19# | |
| Cross-Members | 3" Channel | |
| Floor | Treated Pine or Douglas Fir | |
| Ramps | (2) 5' MEGA Ramps | |
| Stake Pockets | Stake Pockets Along Both Sides, 24" O.C. (Quantity Varies by Length) | |
| Trailer Plug | 7-Way RV | |
| Lights | Recessed, Grommet-Mounted L.E.D. Lighting | |
| Wiring | Sealed, Modular Cold-Weather Wiring Harness | |
| Tires | ST235/80 R-16 Load Range E (Dual) | Tire Upgrade (ST215/75 R-17.5 LR-H Dual) Includes Spare |
| Bolt Pattern | 8-Bolt | |
| Spare Mount | Top of Neck Spare Tire Mount | |
| Spare Tire | ST235/80 R-16 Load Range E (Included)` | |
| Paint Type | Professional Finish w/ Primer Standard | |
| Paint Color | Black | |
| Rubrail | 3/8” Heavy Duty Rub Rail on Both Sides | |
| Break-Away Kit | Complete Breakaway System w/ Zip™ Breakaway Cable and Charger | |
| Mudflaps | Standard | |
| Storage | Lockable Side Mount Tool Box/ Housing Power Unit Box Lockable Toolbox between uprights | Low Profile Tool Box 12” x 18” x 36” (Side Mount) Removable Deck on the Neck- Bolt On (8' W x 6' L) |
| Cargo Winch | Sliding Winch Track | 4" Sliding Winch (Each) 4" Weld-On Winch (Each) Sliding Winch Track (Per 6' Section), for trailers less than 33' long |
| Hydraulic Dovetail | 9' Hydraulic dovetail-wood-filled center with cleated runners (8,000# lifting capacity, 4,000# Carrying Capacity from middle of dovetail forward) | |
| Pipe Chain Spools | 1-1/4” Pipe Chain Spools Between Stake Pockets Pockets | 4" x 30' Strap Extra 5/8" D-Rings |
| Steps & Handles | (2) Side Bed Steps + Handles | |
| Torque Tube | Standard Equipped |
Similar Products
14GN
Single Wheel Tandem Axle Gooseneck
Width: 102"
Length: 20', 25', 28', 30', 33'
GVWR: 15,900 lbs
Cargo Capacity: 9,345—10,538 lbs

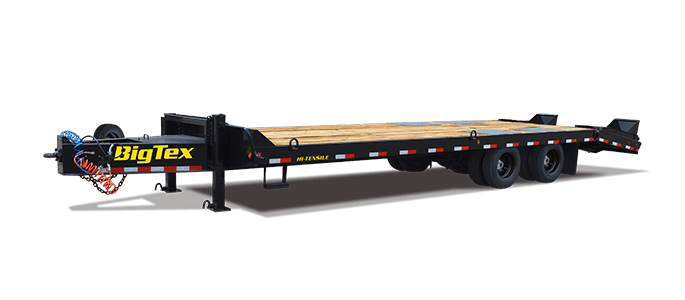

4XPH
