14LP
Heavy Duty Ultra Low Profile Dump
The 14LP Heavy Duty Low Profile Dump Trailer is built to handle your toughest jobs, whether you're in construction or hauling large loads. It’s designed for heavy-duty performance but also includes features like an ultra-low profile deck and side step to make loading, unloading, and transporting materials easier and more convenient.
With you for the long haul™
Standard Feature | Available Options | |
---|---|---|
Axles | 2 - 7,000# Premium, Cambered Axles with Quick-Lubricating Hubs | Drop Axles (Lowers Deck Height to 24" from Ground) |
Brakes | Forward Self-Adjusting Electric Brakes on Both Axles | |
Suspension | Multi-Leaf Slipper Spring w/ Equalizer | |
Tongue | 8" Seamless I-Beam Integrated w/ Frame (10#) | |
Coupler | 2-5/16" Ball, Adjustable Demco EZ Latch Coupler | Adjustable Pintle in Channel in Lieu of Coupler |
Safety Chains | 3/8" Grade 70 w/ Safety Latch Hook (2 ea) | |
Jack | 12,000# Drop-Leg Jack (Side Wind) | 12,000# Elec/Hyd. Jack BY Stillwell™ |
Frame | 8" Seamless I-Beam (10#) | |
Cross-Members | 3" Channel on 16" Centers | |
Floor | 10 Gauge Smooth Steel | Upgrade Floor to 7-Gauge Steel |
Fenders | 9" x 72" 14 Ga. Diamond Plate Double Broke | |
Ramps | 6.5' Slide in Ramps with Integrated Ramp Door | |
Stake Pockets | Stake Pockets Along Both Sides (Quantity Varies by Length) | |
Trailer Plug | 7-Way RV | |
Lights | Recessed, Grommet-Mounted L.E.D. Lighting | |
Wiring | Sealed, Modular Cold-Weather Wiring Harness | |
Tires | ST235/80 R-16 Load Range E Radial Tires | Tire Upgrade (ST235/80 R-16 LR-G) |
Bolt Pattern | 8-Lug | |
Wheels | Black Mod Steel | |
Spare Mount | Side Spare Tire Mount | |
Spare Tire | Not Included | Spare Tire & Wheel (ST235/80 R-16 LR-E) Spare Tire Upgrade (ST235/80 R-16 LR-G) |
Paint Type | Professional Finish w/ Primer Standard | |
Paint Color | Black | |
Tie-Downs | (4) 1/2" D-Rings Inside Bed to Secure Equipment Along Sides and Rear for Cargo Control | |
Break-Away Kit | Complete Breakaway System w/ Zip Breakaway Cable | |
Battery | 12V Deep Cycle | |
Charger | 5A 110V on Board Battery Charger | |
Gate | Rear Combo Gate (Barn Doors & Spreader Gate) | |
J-Hooks | Along sides and rear for Cargo Control | |
Power | Power Up/Power Down & Gravity Down Hydraulic Pump | 5 Watt Solar Charger Wireless Remote |
Ram | Self-Contained Scissor | |
Sides | 24" Tall (10 Ga) with formed Channel Supports | 24" Expanded Metal Side Extensions 4' Solid Sheet Metal Sides |
Stabilizers | Rear Stabilizer Stands | |
Steps | Convenient Side-Step to Access Top Rail | |
Storage | Lockable Pump and Battery Box mounted in Front of Bed | |
Tarp | Fully-Formed Tarp Shroud with Tarp & Rear Tarp Rod Holders | |
Top Rail | 3"x 2" Rectangular Tubing | |
Steps & Handles | Convenient Side-Step to Access Top Rail |

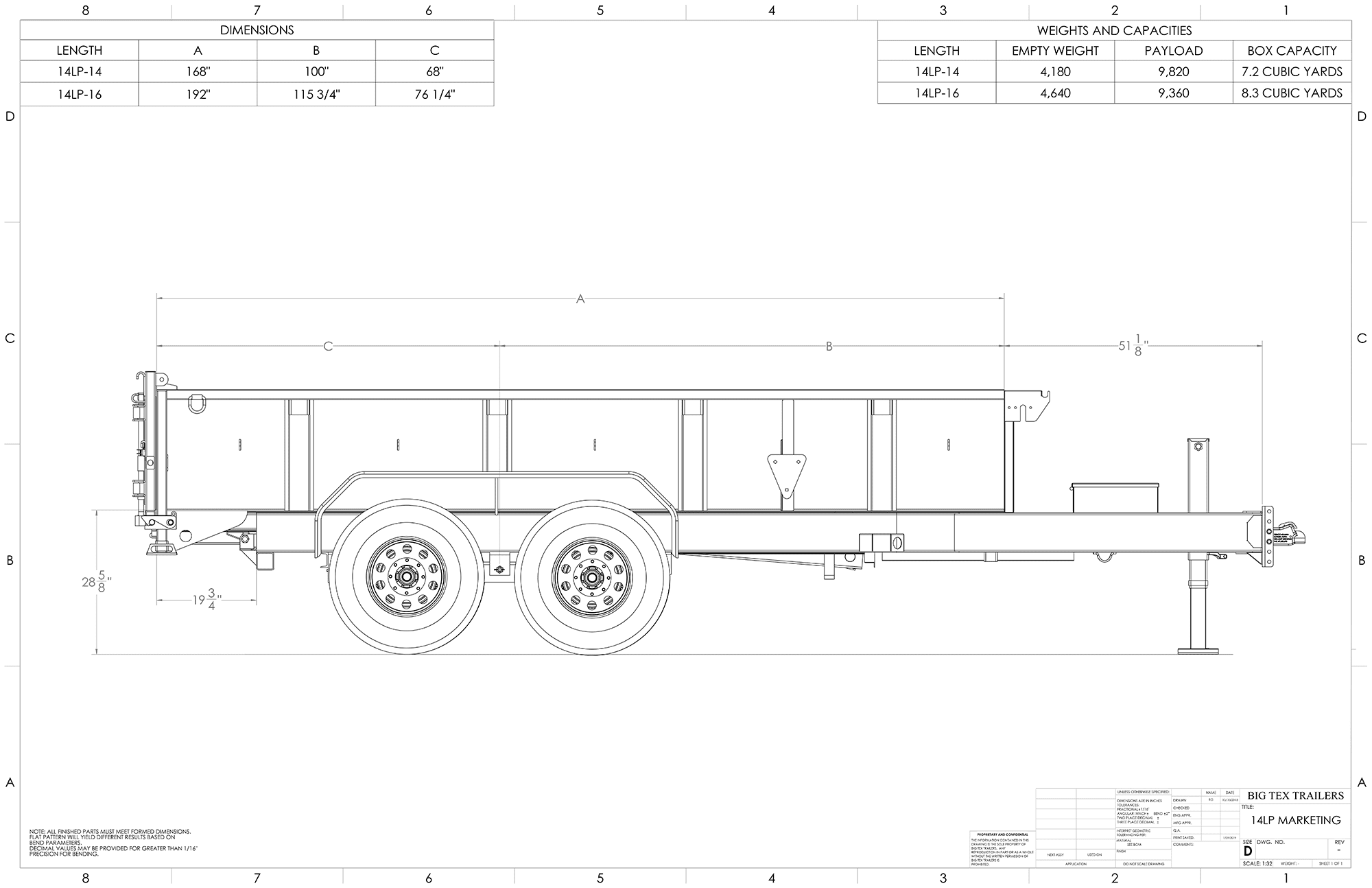

Model | Pull Type | GVWR | GAWR (Ea. Axle) | Empty Weight | Cargo Capacity | Bed Length | Bed Width | A | B | C | Tongue Length |
---|---|---|---|---|---|---|---|---|---|---|---|
14LP-12 | Bumperpull | 14000 lbs | 7000 lbs | 3870 lbs | 10130 lbs | 12' | 83" | 144" | 83-1/4" | 60-3/4” | 51-1/8" |
14LP-14 | Bumperpull | 14000 lbs | 7000 lbs | 4180 lbs | 9820 lbs | 14' | 83" | 168" | 100" | 68" | 51-1/8" |
14LP-16 | Bumperpull | 14000 lbs | 7000 lbs | 4250 lbs | 9750 lbs | 16' | 83" | 192" | 115-3/4" | 76-1/4" | 51-1/8" |

WARNING: This product can expose you to chemicals including Arsenic (inorganic arsenic compounds) which is known to the State of California to cause cancer and Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Similar Products

20LP
Mega Duty Tandem Axle Dump
Width: 83"
Length: 16'
GVWR: 20,000 lbs
Cargo Capacity: 13,870 lbs
New!

10LX
Channel Tandem Axle Dump Trailer
Width: 83"
Length: 12'
GVWR: 9,990 lbs
Cargo Capacity: 6,760 lbs
FREQUENTLY ASKED QUESTIONS
How should I store my trailer when not in use?
Store it on a flat, dry surface with the dump bed lowered to reduce hydraulic strain. If outdoors, our company’s sales experts recommend using a breathable cover for long-term protection, guarding against moisture and UV damage.
What’s the best way to keep the diamond plate fenders looking good?
Wash regularly with mild soap and water. For added shine and protection, use a non-abrasive metal polish. This simple solution helps preserve the finish and prevent oxidation.
How do I clean the dump bed after heavy use?
Rinse out loose debris, then scrub with a stiff brush and biodegradable cleaner. Finish with a thorough rinse to avoid buildup. Our products are designed to work as hard as you do with regular maintenance.
Any tips for maintaining the brakes?
Self-adjusting brakes require little maintenance. Just inspect for debris now and then, and rinse brake dust off with water. Our support team can assist with occasional checks.
How can I protect the trailer’s frame from rust?
Spray off mud, salt, or grime after use. For extra defense, apply a rust-inhibiting spray as needed. Your Big Tex Trailers trusted supplier is here to help with maintenance tips or product recommendations.
What’s the best way to care for the hydraulic components?
Keep cylinders clean and check fluid levels per your manual. Store the trailer with the bed lowered to relieve pressure on the system. For parts or service, contact your local Big Tex Trailers supplier.
