25GN HD Tandem Dual Axle Gooseneck
Standard Features
- 2-5/16” Ball Adjustable Coupler- Square Crank Type
- Dual Two Speed Landing Gear 50K Capacity (Bolted On)
- 102” Overall Width
- Low Profile Bed, Pierced- Beam Frame
- Lockable Toolbox Between GN Uprights
- (2) Side Bed Steps & Handles
- 3/8” Heavy Duty Rub Rail
- Tie Down Pockets Along Sides, 24” On Center
- 1-1/4” Pipe Chain Spools Between Tie Down Pockets
- Dexter Brand Axles
- Oil Bath Hubs
- Forward Self Adjusting Brakes
- Heavy Duty 30,000# Adjustable Suspension by Dexter Axle
- Torgue Tube Standard on 28’ (Flat Deck) & Longer
- Grommet Mount Sealed Lighting
- L.E.D. Lighting Package
- Modular Sealed Wiring Harness
- Spare Tire Mount (Top of Neck)
- 5’ Dovetail w/ 5’ Double Hinged Spring Assist Flip-Over Ramps
- Complete Break-A-Way System w/Charger
- Radial Tires
- Mudflaps
- Spare Tire & Wheel- Standard Equipped New!
*Picture may show optional items
| G.V.W.R. | 25,900# |
| G.A.W.R. (Ea. Axle) | 12,000# |
| Coupler | 2-5/16″ Ball Adjustment Square Crank Type Coupler |
| Safety Chains | 3/8” Grd. 70 w/Safety Latch Hook (2 each) |
| Jacks | Dual Two Speed Landing Gear (Bolted On) |
| Neck | 12″ I-Beam, 19# |
| Top Rail | None |
| Frame | 12″ I-Beam, 19# |
| Crossmembers | 3” Channel |
| Side Rails | 8” Channel w/Rub Rail, Tie Down Pockets on 24” Centers, and Chain Spools |
| Axles | (2) 12,000# Dual Wheel w/ Electric Brakes (Oil Bath) |
| Suspension | Heavy Duty 30,000# Adjustable |
| Tire | ST235/80 R-16 Load Range E Dual |
| Wheel | 16″ x 6″; Dual Wheel 8 Bolt |
| Floor | 2″ Treated Pine or Douglas Fir* |
| Lights | LED D.O.T. Stop, Tail, Turn & Clearance w/Ctr Turns |
| Elec. Plug | 7-Way RV |
| Finish (Prep) | Steel is Cleaned to Ensure a Professional Smooth Finish |
| Finish | Superior Quality Finish is Applied for a Highly Decorative and Protective Finish |
*Douglas Fir Available from Caldwell, ID Facility Only
Specs
| Model# | Weight | Description |
|---|---|---|
| 25GN-20+5 | 6,500# | 102” x 20’ + 5’ Tandem Dual Wheel Gooseneck |
| 25GN-25+5 | 7,250# | 102” x 25’ + 5’ Tandem Dual Wheel Gooseneck |
| 25GN-28+5 | 7,850# | 102” x 28’ + 5’ Tandem Dual Wheel Gooseneck |
| 25GN-30+5 | 8,630# | 102” x 30’ + 5’ Tandem Dual Wheel Gooseneck |
| 25GN-32+5 | 8,450# | 102” x 32’ + 5’ Tandem Dual Wheel Gooseneck |
| 25GN-35+5 | 8,900# | 102” x 35’ + 5’ Tandem Dual Wheel Gooseneck |
| 25GN-36 | 8,150# | 102” x 36’ Tandem Dual Wheel Gooseneck (Straight) |
| 25GN-40 | 8,750# | 102” x 40’ Tandem Dual Wheel Gooseneck (Straight) |

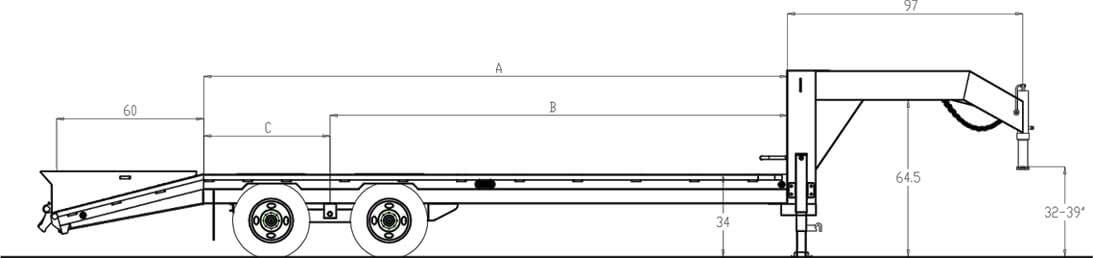

| Dimensions | |||
|---|---|---|---|
| Length | A | B | C |
| 20 + 5 | 240” | 186” | 54” |
| 25 + 5 | 300” | 240” | 60” |
| 28 + 5 | 336” | 264” | 72” |
| 30 + 5 | 360” | 280” | 80” |
| 32 + 5 | 384” | 296” | 88” |
| 35 + 5 | 420” | 320” | 100” |
| 36 | 432” | 288” | 144” |
| 40 | 480” | 320” | 160” |
*Weights shown are for base models without options and are estimates only.
Options
| Category | Description | Details |
|---|---|---|
| JACKS | Dual Electric Over Hydraulic Jacks | |
| BRAKES | Air Brake Assembly w/ABS on Front, Spring Brake Chambers & Auto Slacks | |
| BRAKES | Electric Over Hydraulic Brakes (Drum) | |
| BRAKES | Electric Over Hydraulic Brakes (Disc) | |
| TIRE/WHEEL | Tire Upgrade (ST235/85 R-16 LR-G Dual) | |
| TIRE/WHEEL | Spare Tire Upgrade (ST235/85 R-16 LR-G Dual) | |
| TIRE/WHEEL | Tire Upgrade (ST215/75 R-17.5 LR-H Dual) | |
| TIRE/WHEEL | Spare Tire Upgrade (ST215/75 R-17.5 LR-H Dual) | |
| RAMPS | (2) 5' MEGA Ramps | Details |
| RAMPS | 5’ Center Pop-Up Dovetail w/ (2) 5’ Flip-Over Ramps | Details |
| RAMPS | (3) 5' Flip-Over Ramps w/Diamond Plate on Bottom | Details |
| RAMPS | No Dovetail Option (Delete's Dovetail & Ramps) | Details |
| RAMPS | 8' Rear Slide-In Ramps (Straight Deck Only) | |
| BODY | Removable Deck on the Neck- Bolt On (8' W x 6' L) | Details |
| BODY | Blackwood Rubber Infused Lumber | Details |
| CARGO CONTROL | Low Profile Tool Box 12” x 18” x 36” (Side Mount) | |
| CARGO CONTROL | Sliding Winch Track (Per 6' Section) | Details |
| CARGO CONTROL | 4" Sliding Winch (Each) | Details |
| CARGO CONTROL | 4" Weld-On Winch (Each) | |
| CARGO CONTROL | 4" x 30' Strap (Each) | |
| CARGO CONTROL | B 40 5/8” D-Ring (Each) | |
